Product Details

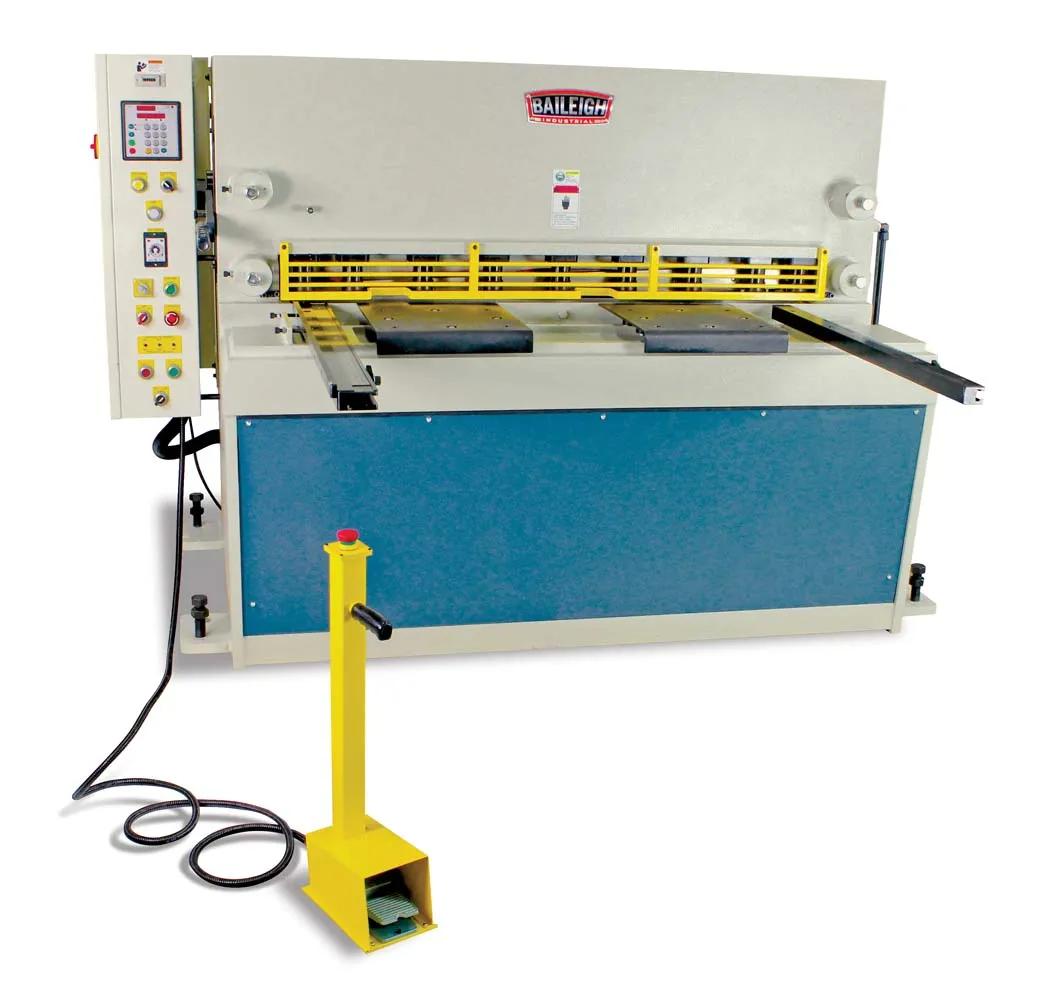

Heavy-Duty Hydraulic Sheet Metal Shearing: The Baileigh SH-5203-HD-NC Heavy-Duty Hydraulic Sheet Metal Shear is built for high-production metal cutting in fabrication shops, steel service centers, and industrial environments where precision, strength, and repeatability are essential. This shear features a 52″ cutting width and can cut up to ¼″ (3 gauge) mild steel, delivering clean, burr-free results for large sheet metal workpieces.

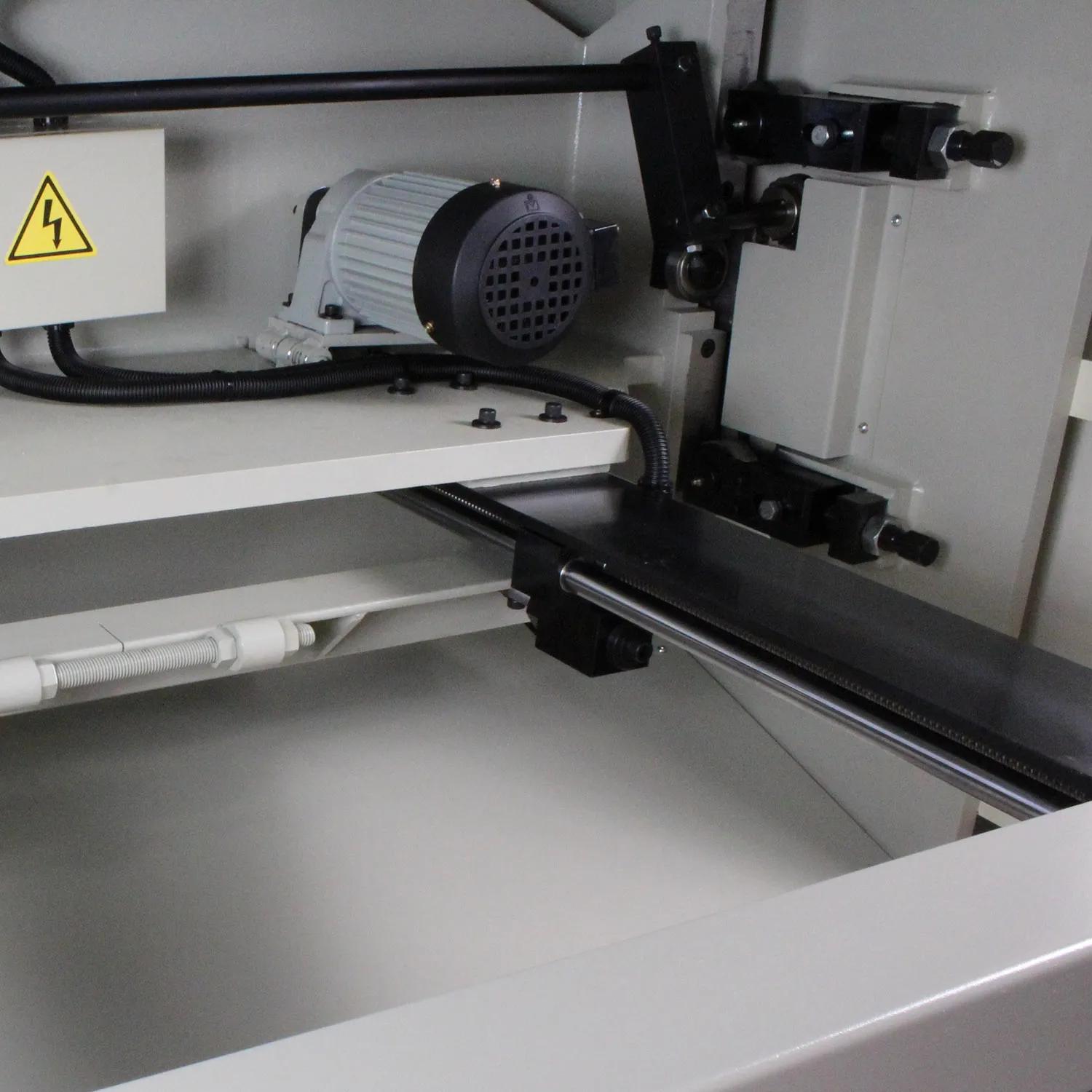

Programmable Back Gauge & Precision Construction: Powered by a 15 hp motor on 220 V 3-phase power, the SH-5203-HD-NC includes a NC programmable back gauge that rides on a screw ball rail system with positioning encoder for accurate, repeatable cuts. The fully welded plate steel frame, precision ground hardened rail system, and high-carbon chromium blades with multiple flip surfaces ensure long blade life, strength, and consistent performance throughout production runs.
Order Yours Today: Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Cutting Width: 52″ shearing length for large sheet metal cutting.
- Material Capacity: Cuts up to 3 (1/4") Gauge Mild Steel.

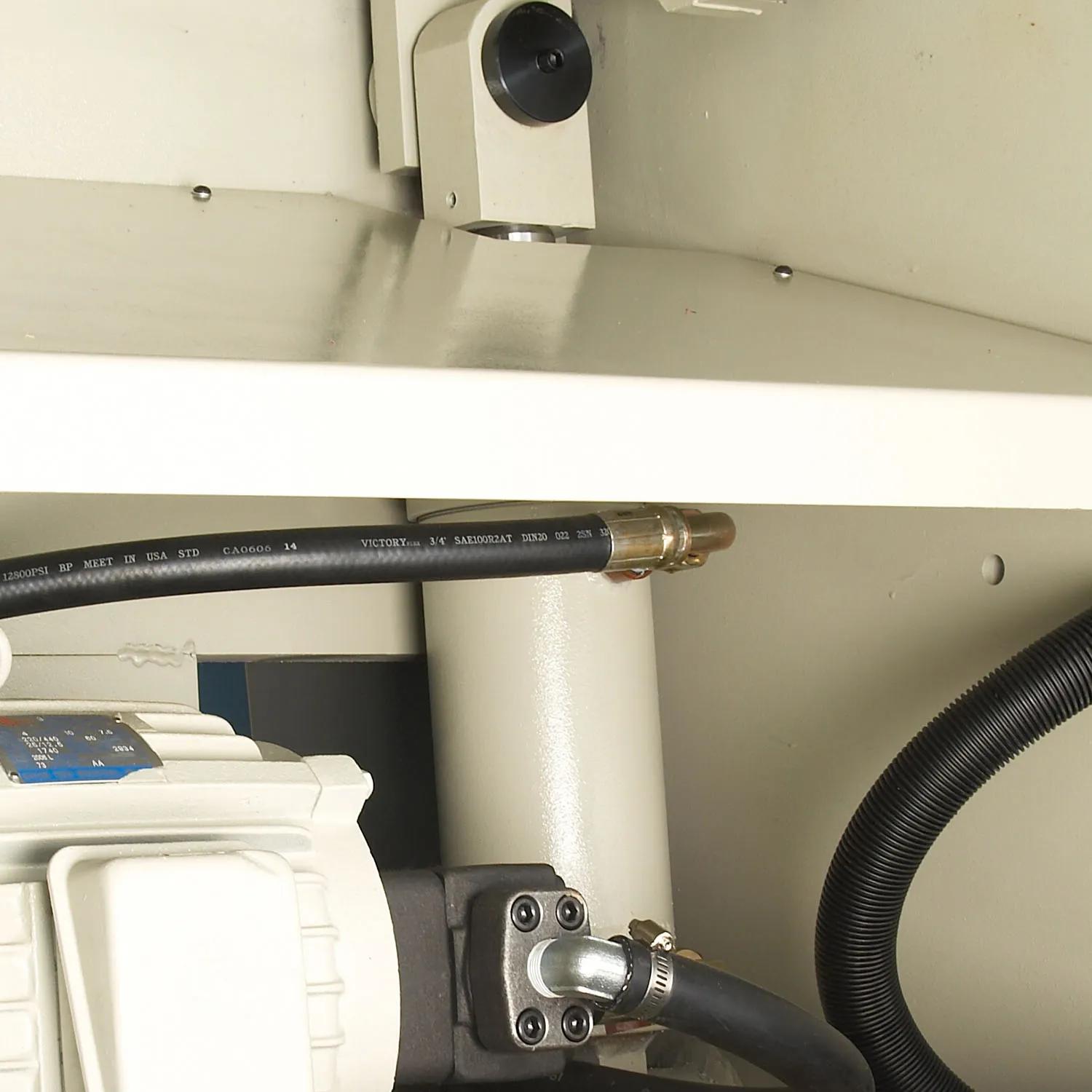

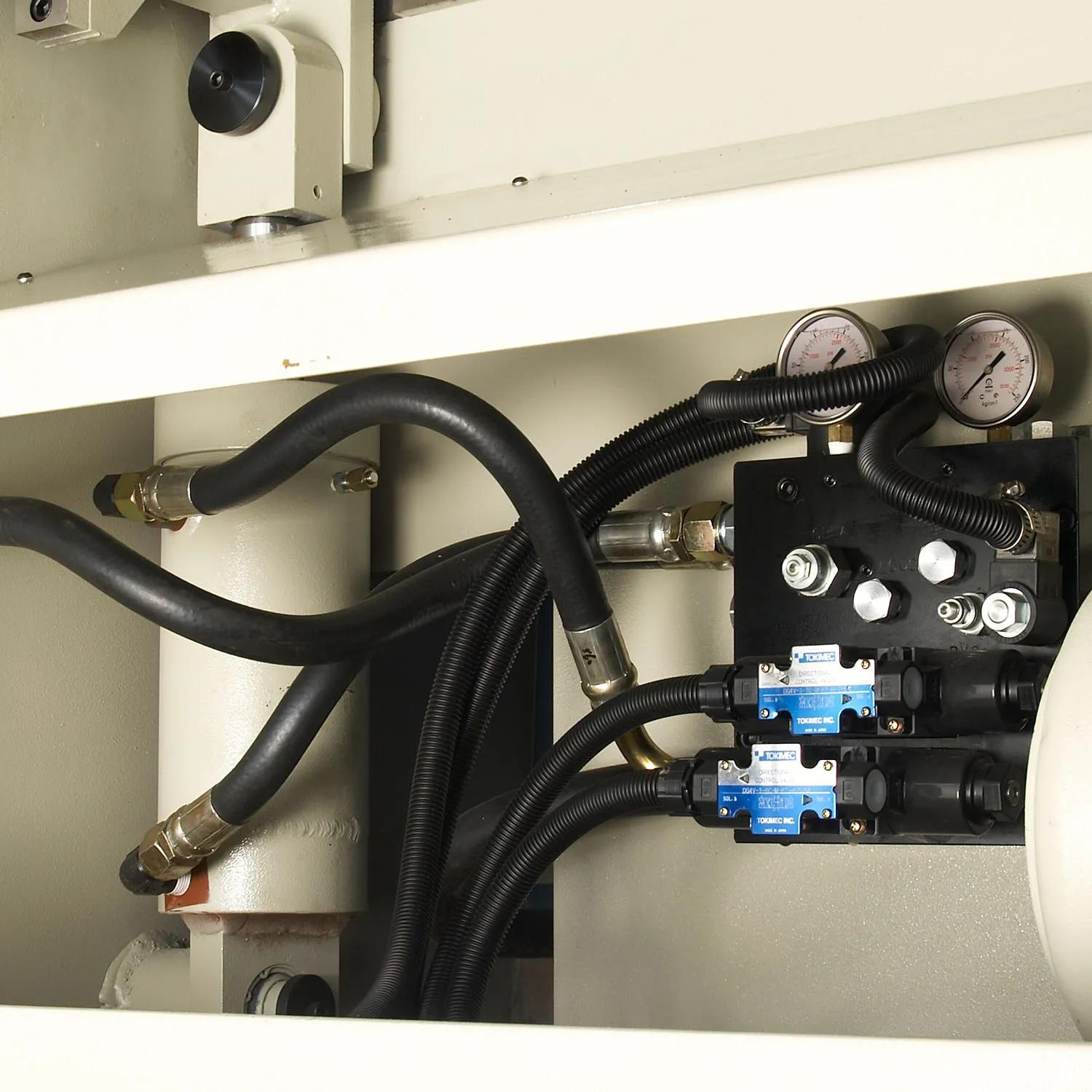

- Hydraulic Drive: Industrial hydraulic system for smooth, consistent shearing performance.
- Motor: 220 V 3-phase power for industrial strength.

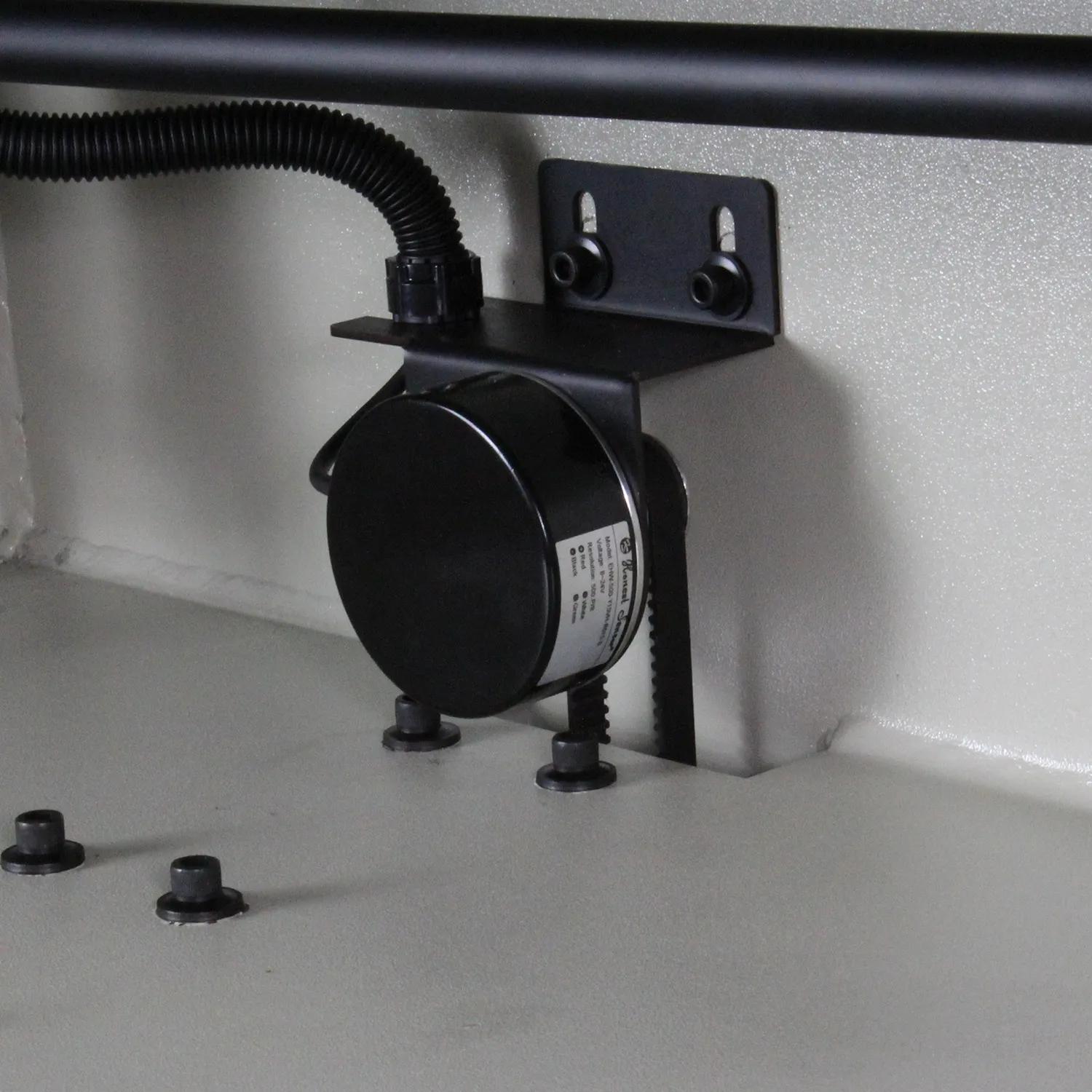

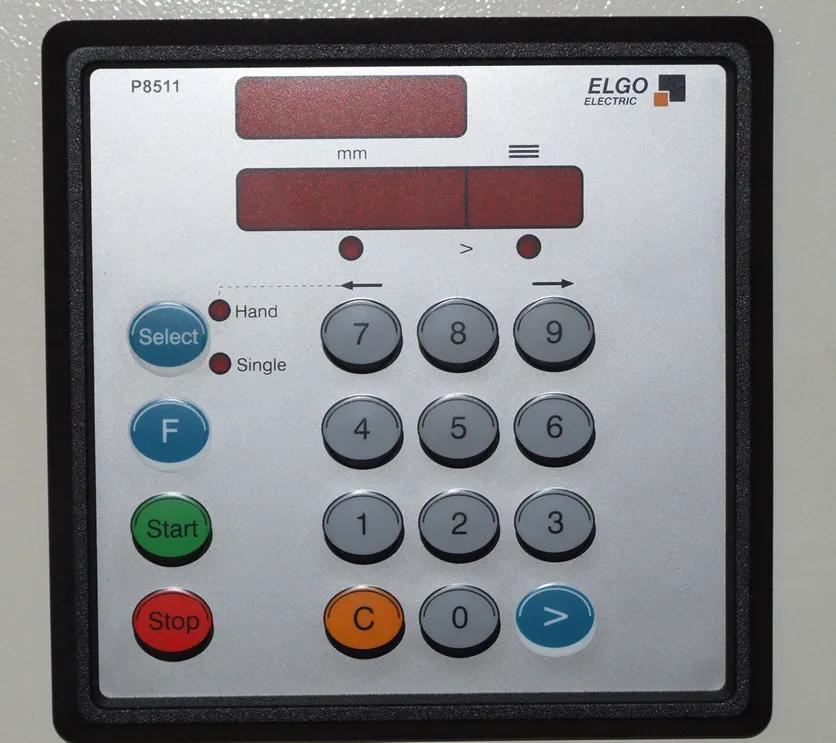

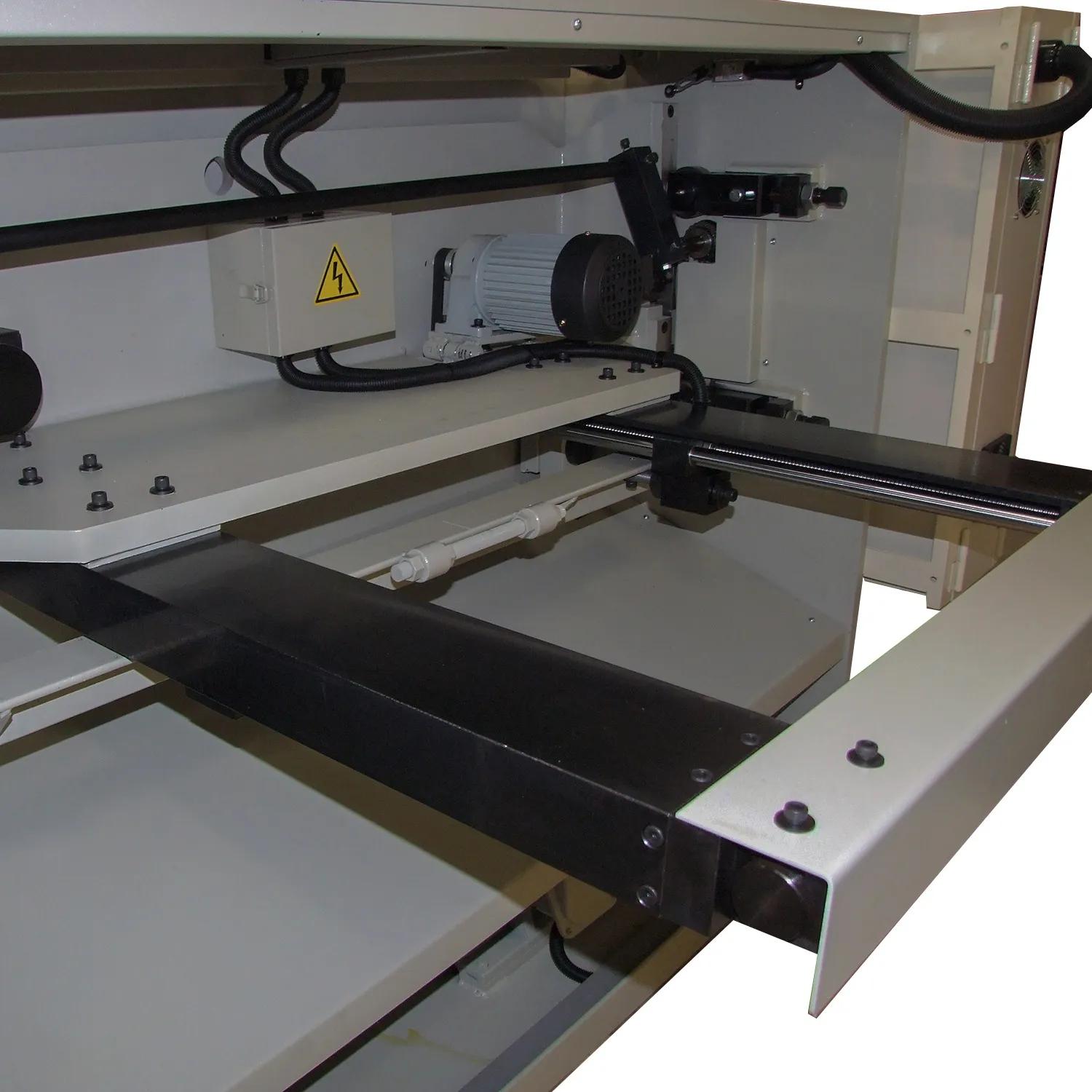

- Programmable Back Gauge: NC quick-change back gauge with positioning encoder for accurate repeat cuts.
- Frame Construction: Fully welded heavy-gauge steel frame for rigidity and minimal deflection.
- Blade System: High-carbon chromium blades with multiple edges for extended life.
- Material Hold-Downs: Multiple hydraulic hold-downs secure material during cutting.
- Control: Remote operator control pendant with foot pedal and emergency stop.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1007095
- Front Gauge Capacity (In.)39.37
- Gross Weight5820.0
- Input Power220V Three Phase
- Mild Steel Capacity (Gauge)3
- Model NumberSH-5203-HD-NC
- Net weight5820.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Shear Capacity52 in.
- Shearing Length Capacity (In.)52 in.
- Warranty1 Year
