Heavy Duty Downdraft Table DDTM-4840-HD

Product image is only a representation, actual product appearance may differ slightly

  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD
  • Heavy Duty Downdraft Table DDTM-4840-HD

Heavy Duty Downdraft Table DDTM-4840-HD

SKU: BA9-1017589

In stock

$9,648.18 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $190 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description

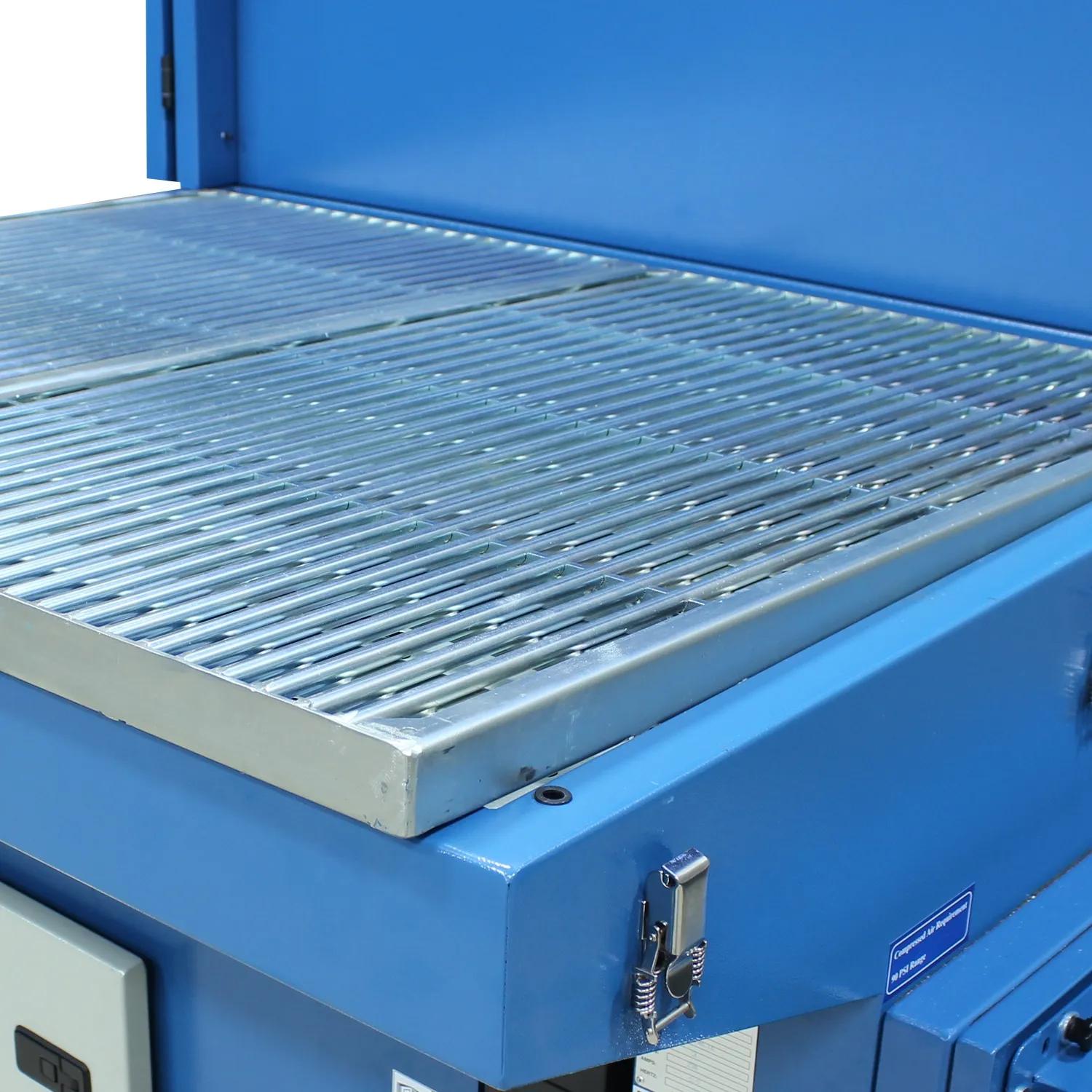

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place.  The Heavy Duty Downdraft Table DDTM-4840-HD is the perfect table for small shop tht has a need for a production table.  This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air.   The DDTM-4840-HD has a list of features that make it one of the best tables on the market.

  • 48" x 40" Working area

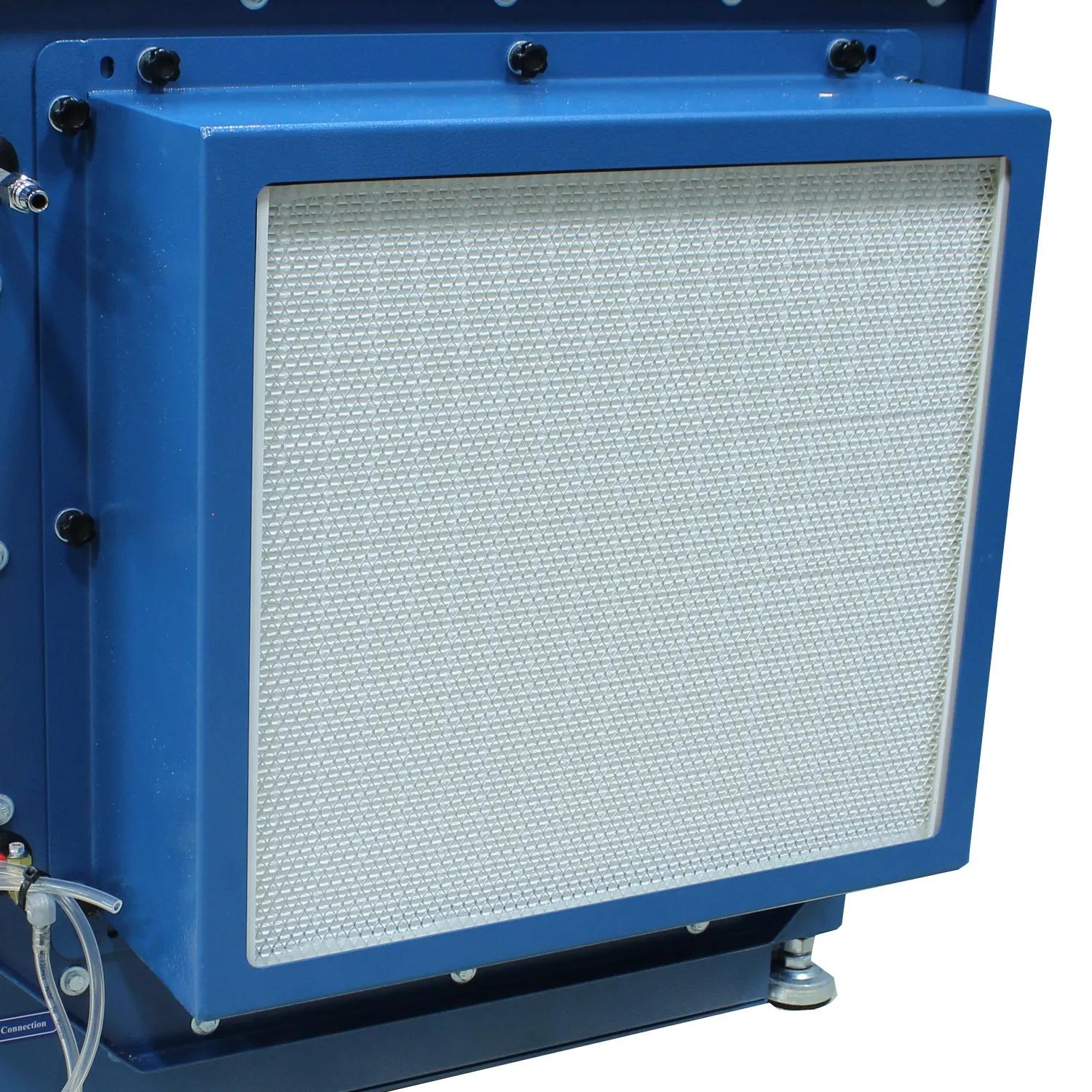

  • Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet.  These are all options other companies charge for, but come standard with Baileig
  • CSAus listed
  • 100% Tool free cleaning and filter maintenance/changes

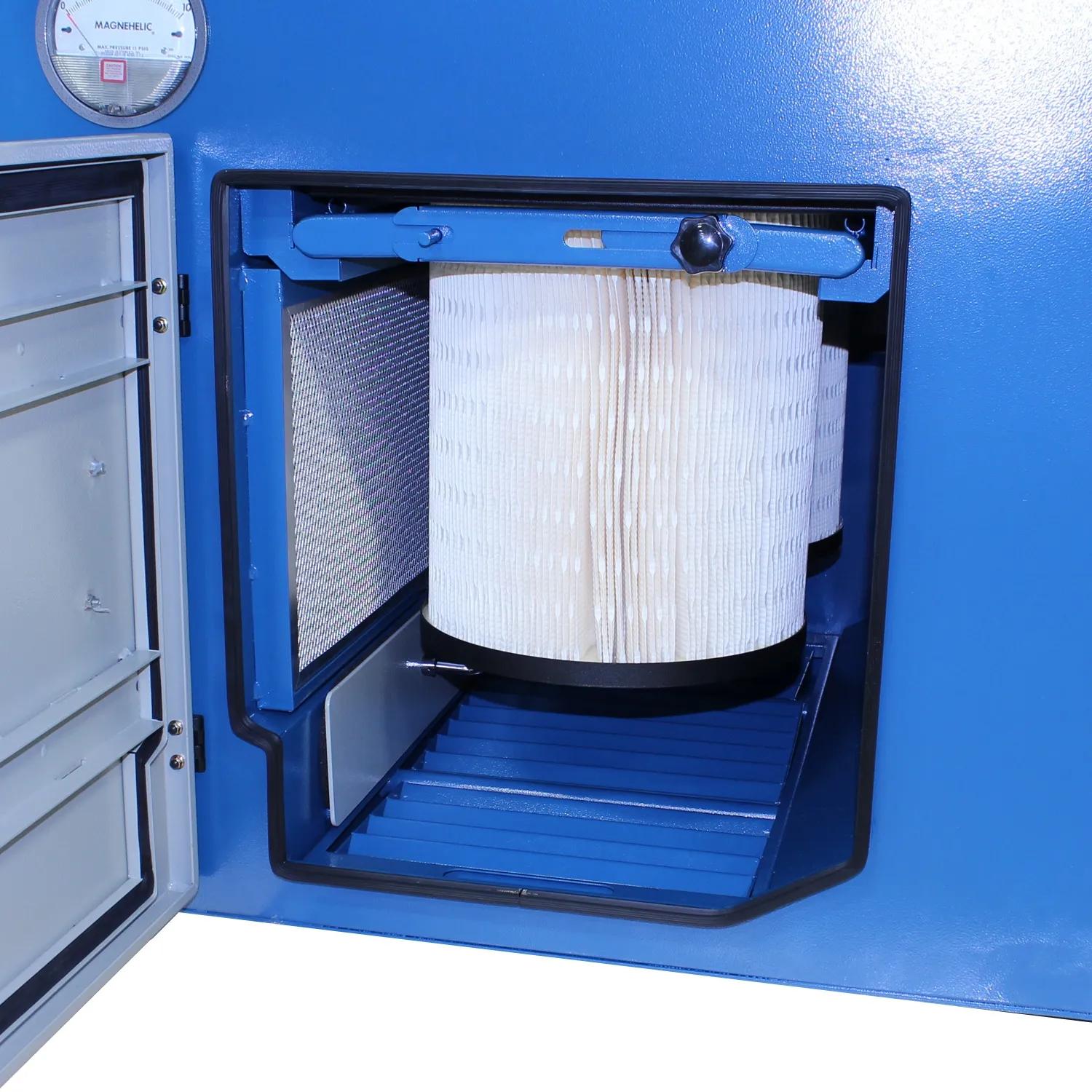

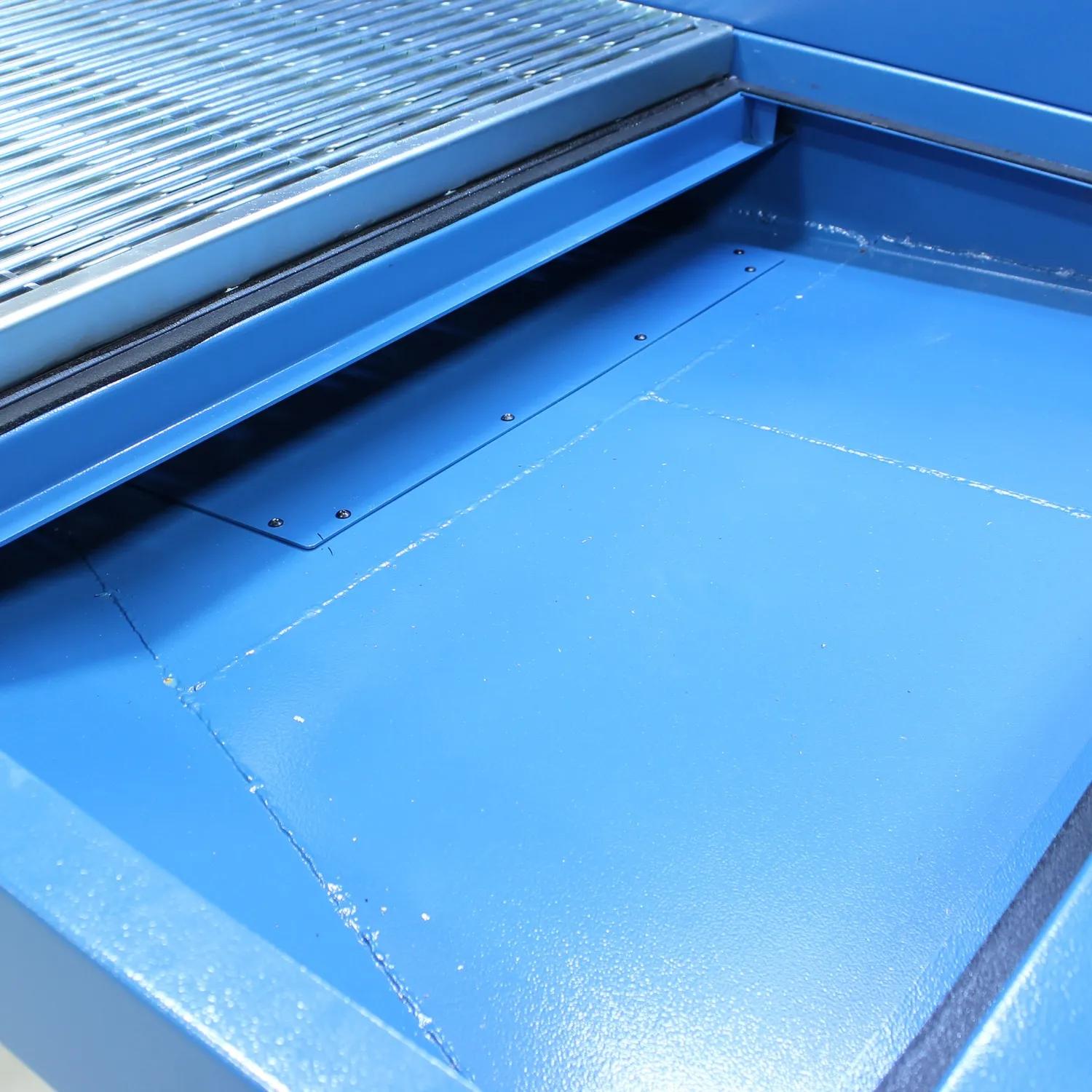

  • Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection).  An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout).  The table can now be turned on and work resumed

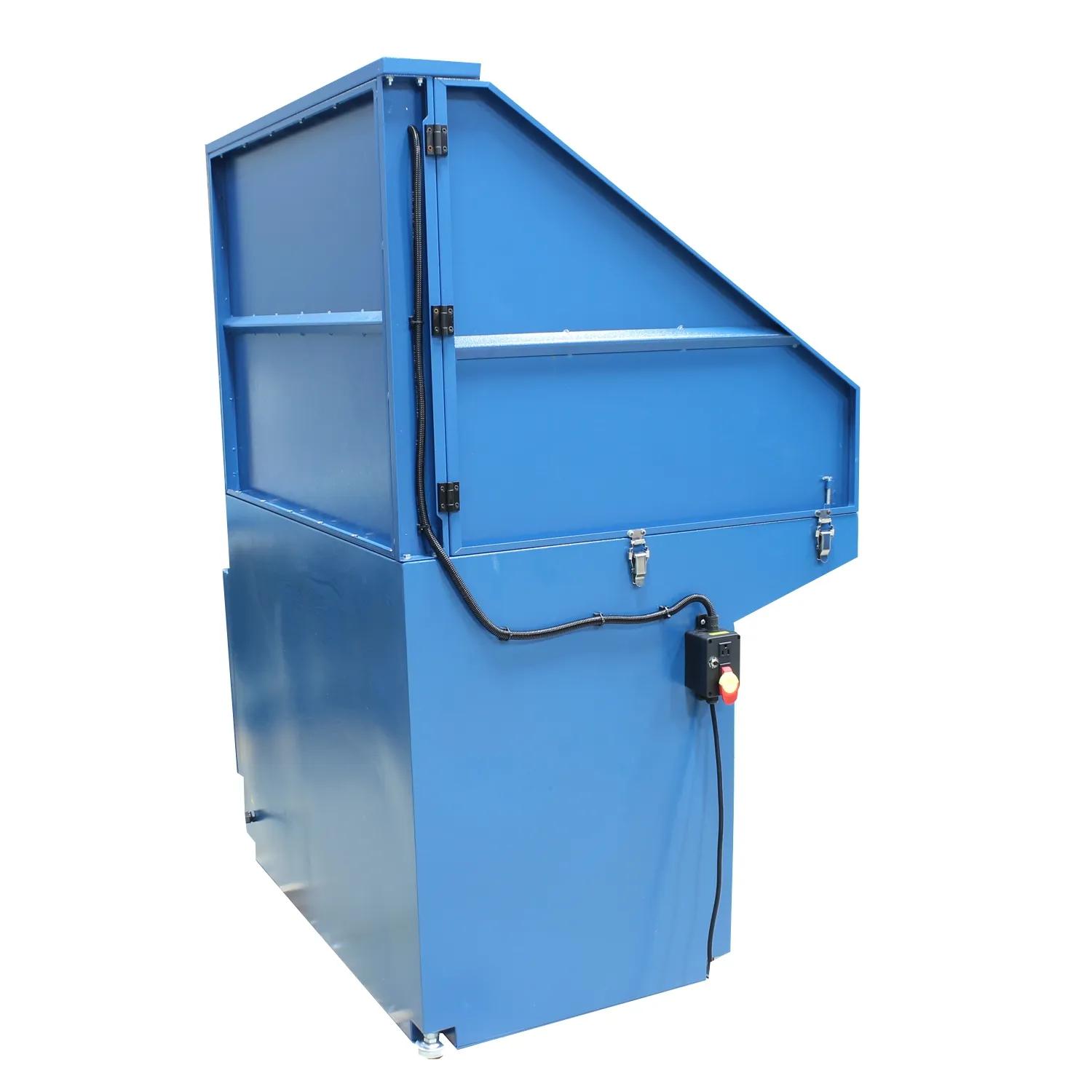

  • Safety – Under OSHA decibel limit (hearing protection not required).  HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models)
  • Fully Assembled – Simply uncrate, wire, and begin use


-Table Load Capacity –

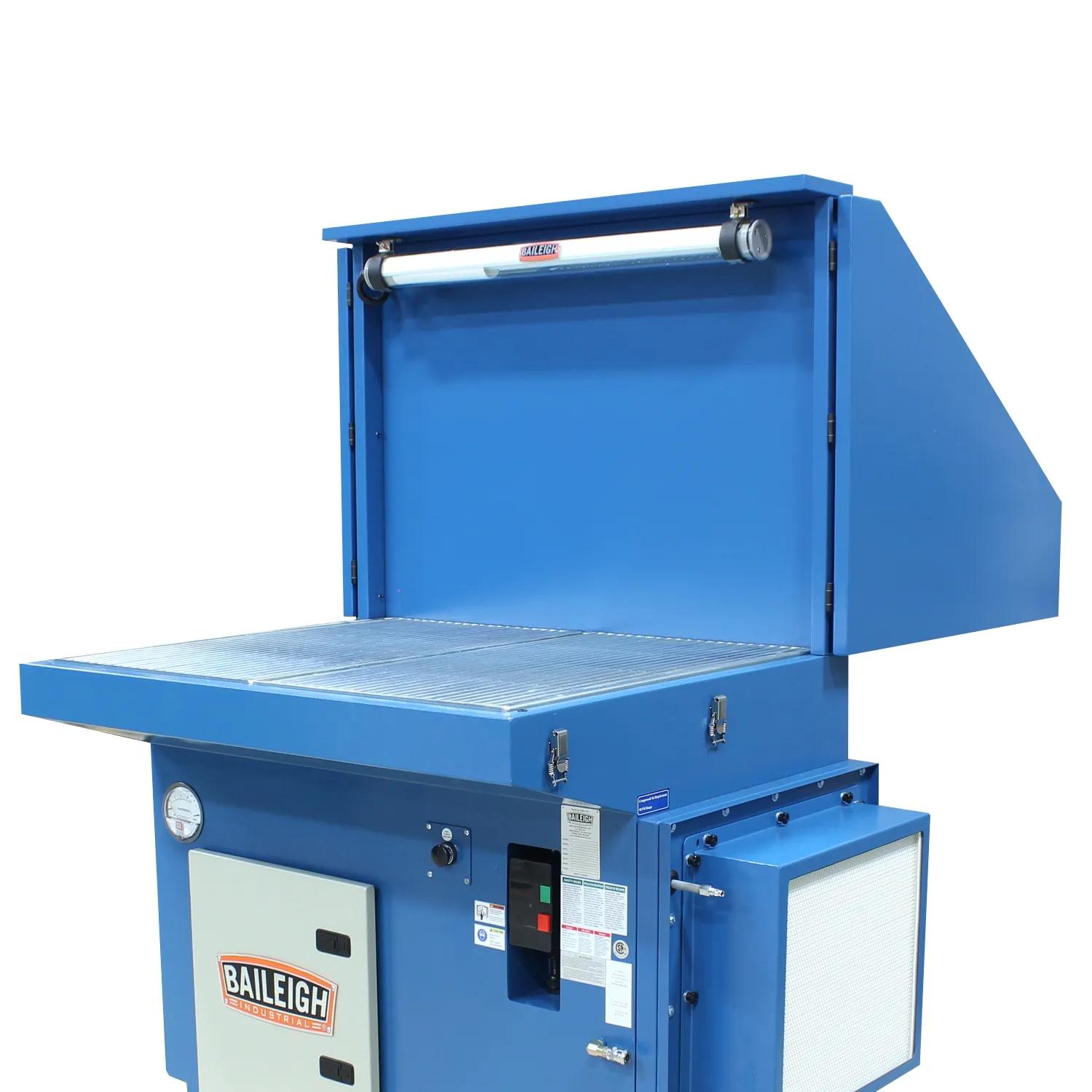

Maximum 1543lbs (700kgs) Evenly distributed over 80% - 100% of table surface.

Concentrated Contact Surface Contact Weight

10% 192lbs (87kgs)

20% 384lbs (174kgs)

30% 575lbs (261kgs)

40% 767lbs (348kgs)

50% 959lbs (435kgs)

60% 1151lbs (522kgs)

70% 1343lbs (609kgs)

80% 1543lbs (700kgs)



For More infromation on the DDTM-4840-HD contact a Baileigh representative today at 920-684-4990

Specifications

Item Number DDTM-4840-HD
Working Table Size 48" x 40"
CFM 1350
Motor Hp 2
Filter Type Three Stage (Aluminum, Teflon Cartridge x 2, HEPA)
Number of Filters 4
Filter Size Aluminum - 11.3" x 23.8" x 0.86", Cartridge x 2 - Ø11.25" x 13"L, HEPA - 18" x 20" x 5.9"
Table Load Capacity Maximum 1543lbs (700kgs) evenly distributed over 80% - 100% of table surface. For concentrated weight spec, see chart in description.
Power 220V 3-Phase / 60 Hertz
Shipping Weight 950lbs
Shipping Dimensions (Inches) 62x45x81

* specifications subject to change without notice.
