Product Details
Industrial Grinding: The Baileigh DG-500HD is a heavy duty 20″ disc grinder engineered for smoothing burrs, chamfering edges for welding, and cleaning up castings in high-production industrial and fabrication environments.
Power & Performance: Equipped with a robust 2 HP motor running at 1,750 RPM and operating on 220 V single-phase power, this grinder delivers powerful, consistent grinding performance with both clockwise and counter-clockwise disc rotation.
Control & Safety: The DG-500HD features a tilting worktable (down 45°, up 15°), foot brake for rapid disc stop, reversing switch, and a 4″ dust port to connect to extraction systems for cleaner shop operation.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Disc diameter: Large 20″ disc for heavy industrial grinding.

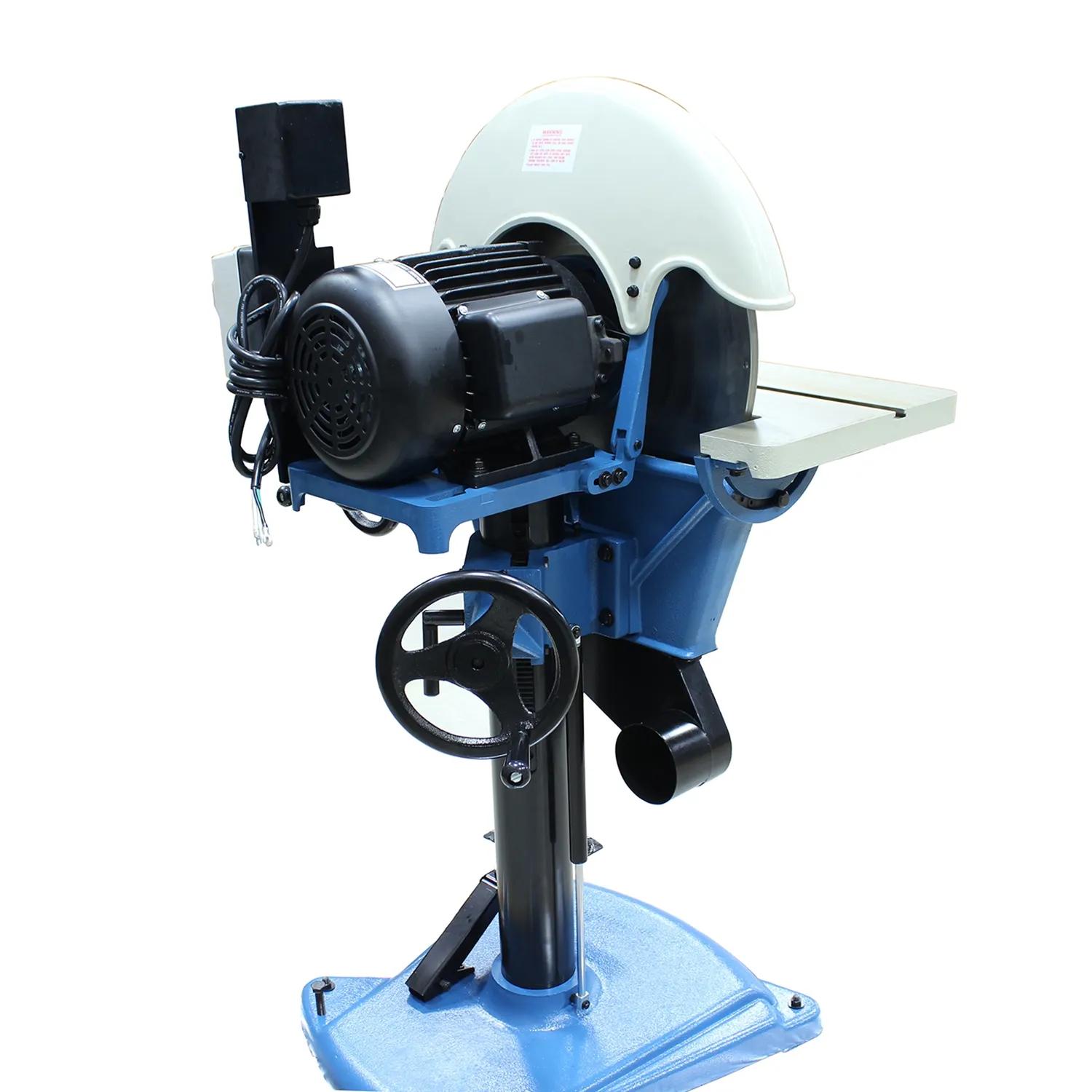

- Motor power: Powered by a 2 HP motor for robust performance.
- Voltage: Operates on 220 V single-phase electrical service.
- Disc speed: Runs at 1,750 RPM for powerful material removal.

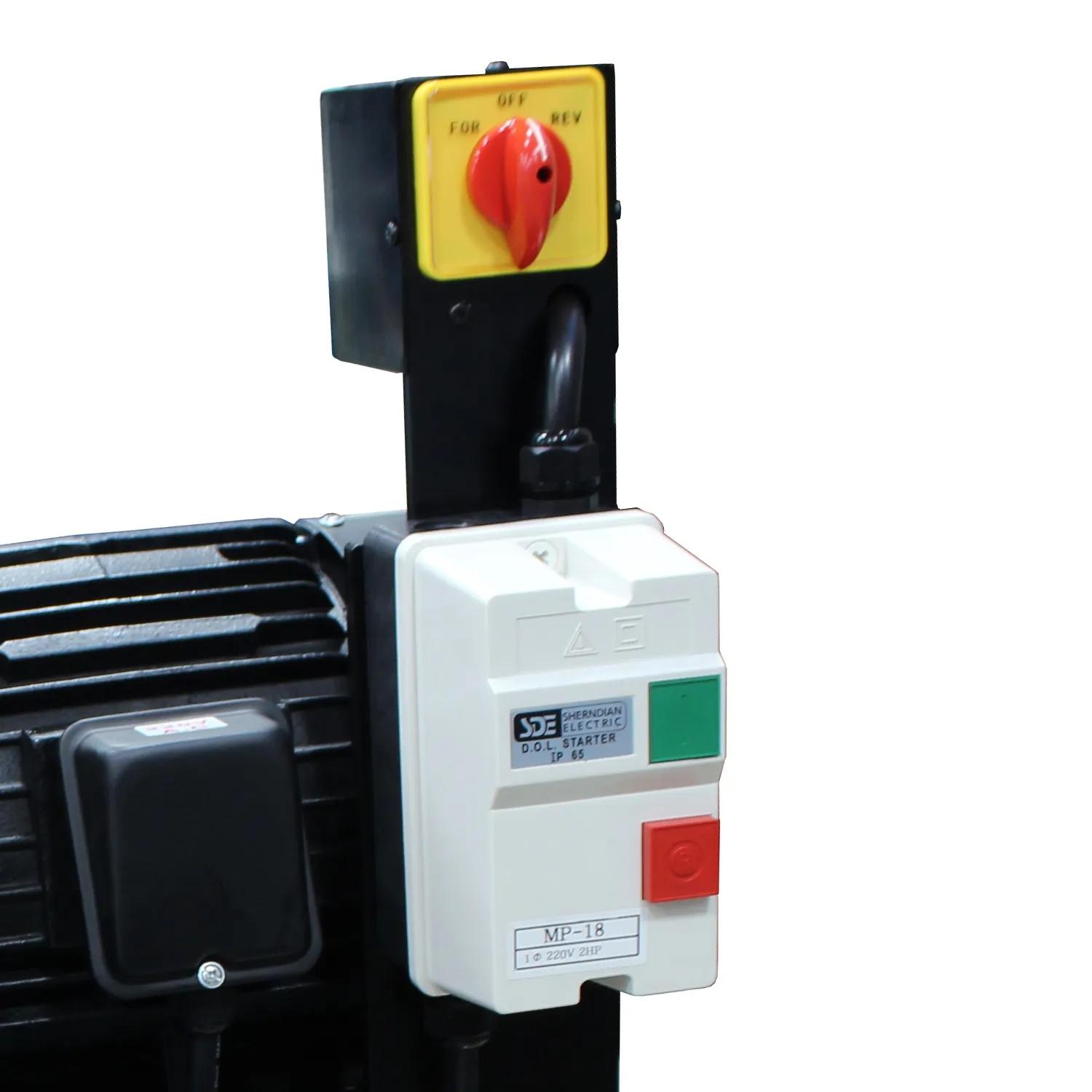

- Reversing switch: Allows disc rotation in both directions.

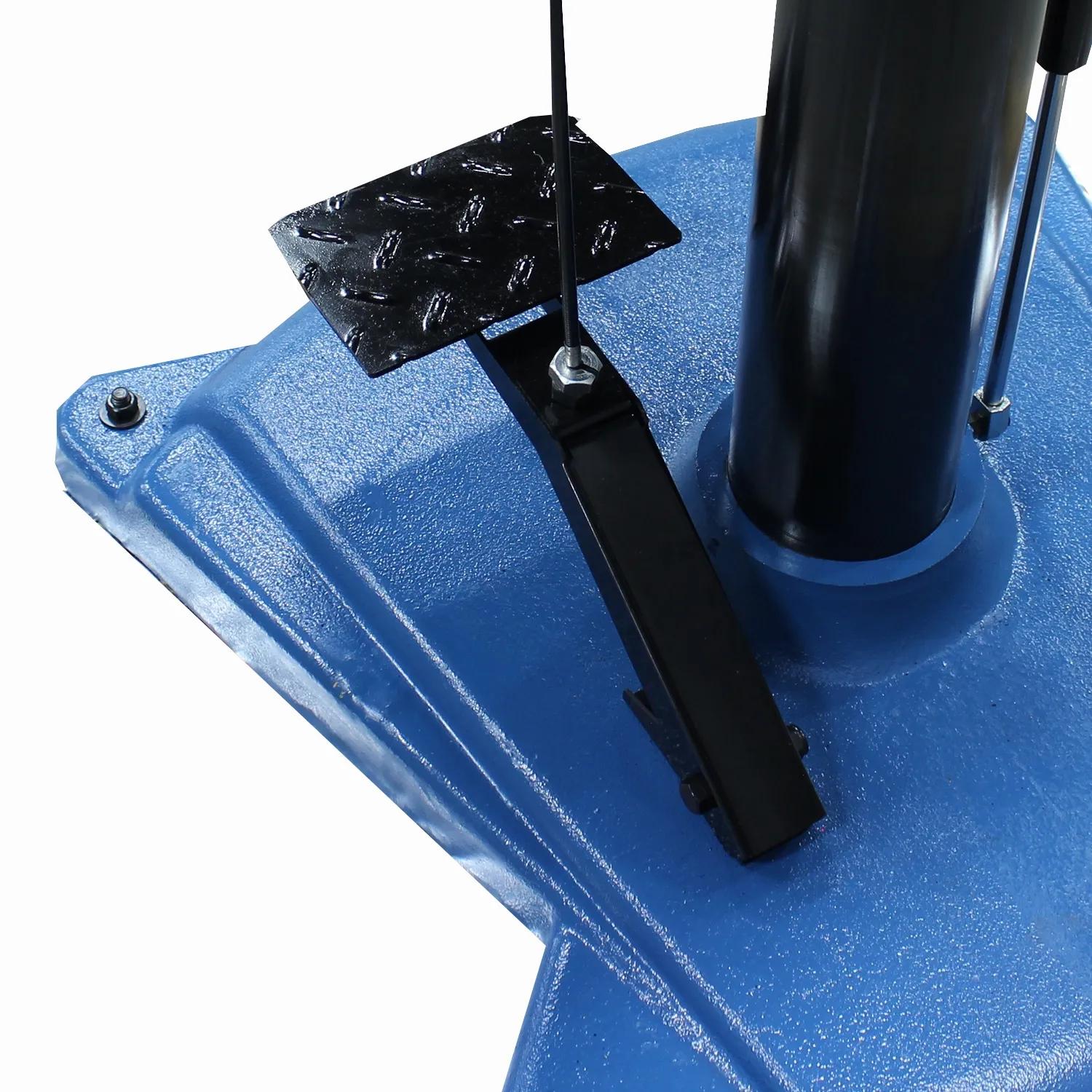

- Foot brake: Stops the disc quickly to reduce wait time and waste.

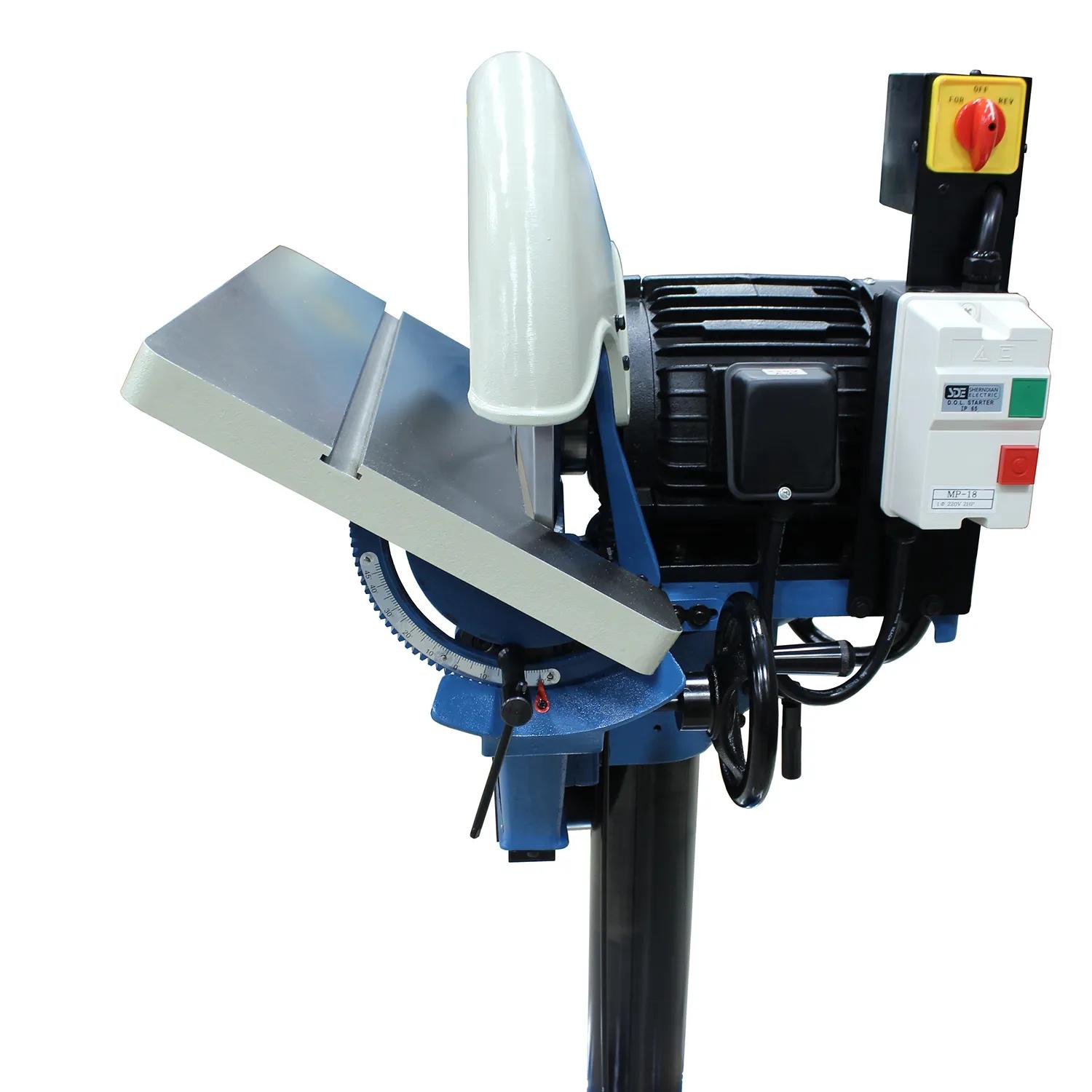

- Table tilt: Worktable tilts 45° down and 15° up for varied grinding angles.

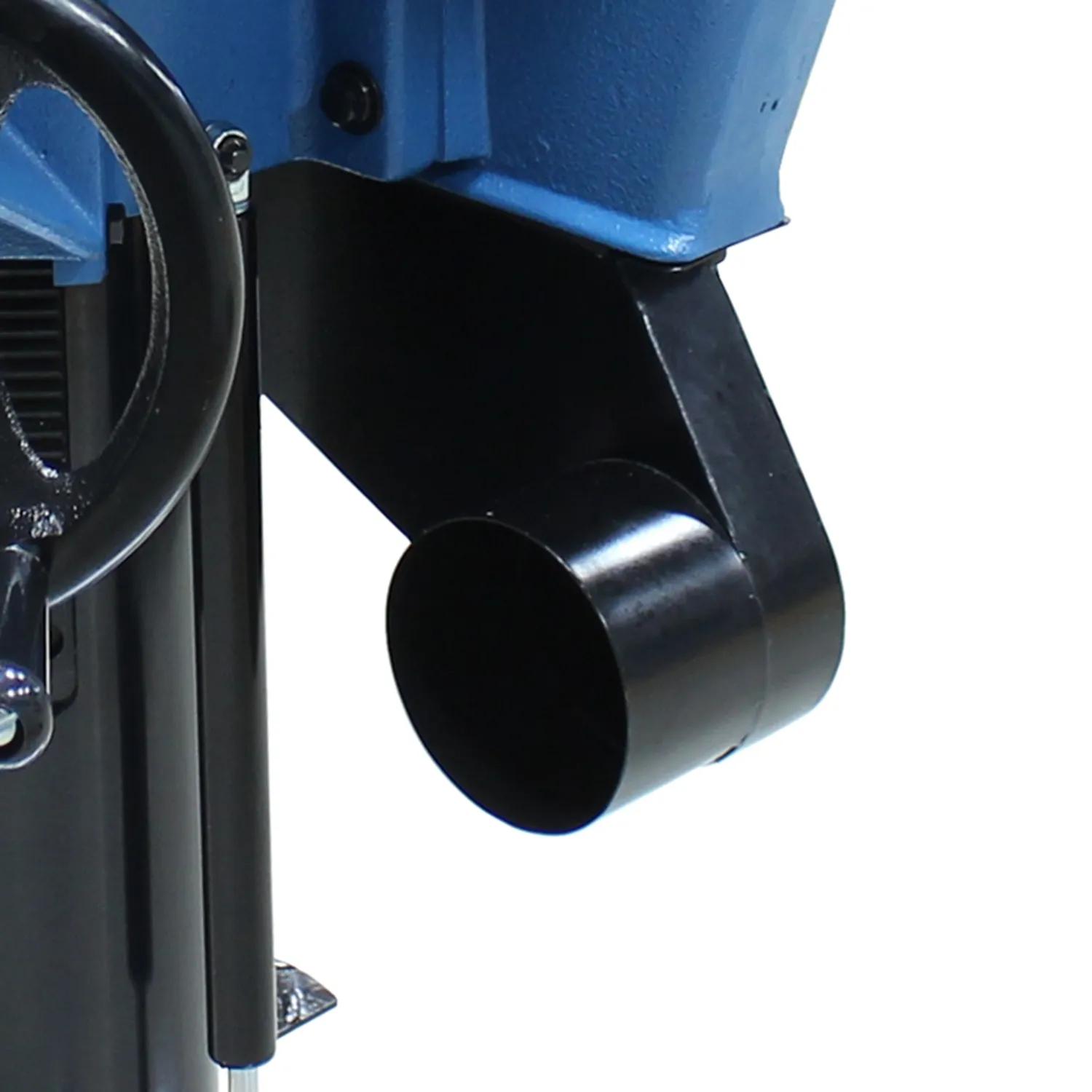

- Dust port: 4″ dust collection port for connection to extraction.
- Miter gauge: Included for precise guided grinding.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1019164
- Disc Diameter20 in.
- Disc Table Tilt (Deg.)45 down, 15 up
- Dust Port Outside Diameter (in.)4 in.
- Gross Weight422.0
- Horse Power (HP)2
- Input Power220V Single Phase
- Model NumberDG-500HD
- Motor HP2
- Motor PhaseSingle
- Motor Speed1750 RPM
- Motor Voltage220
- Net weight422.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Warranty1 Year
