Product Details

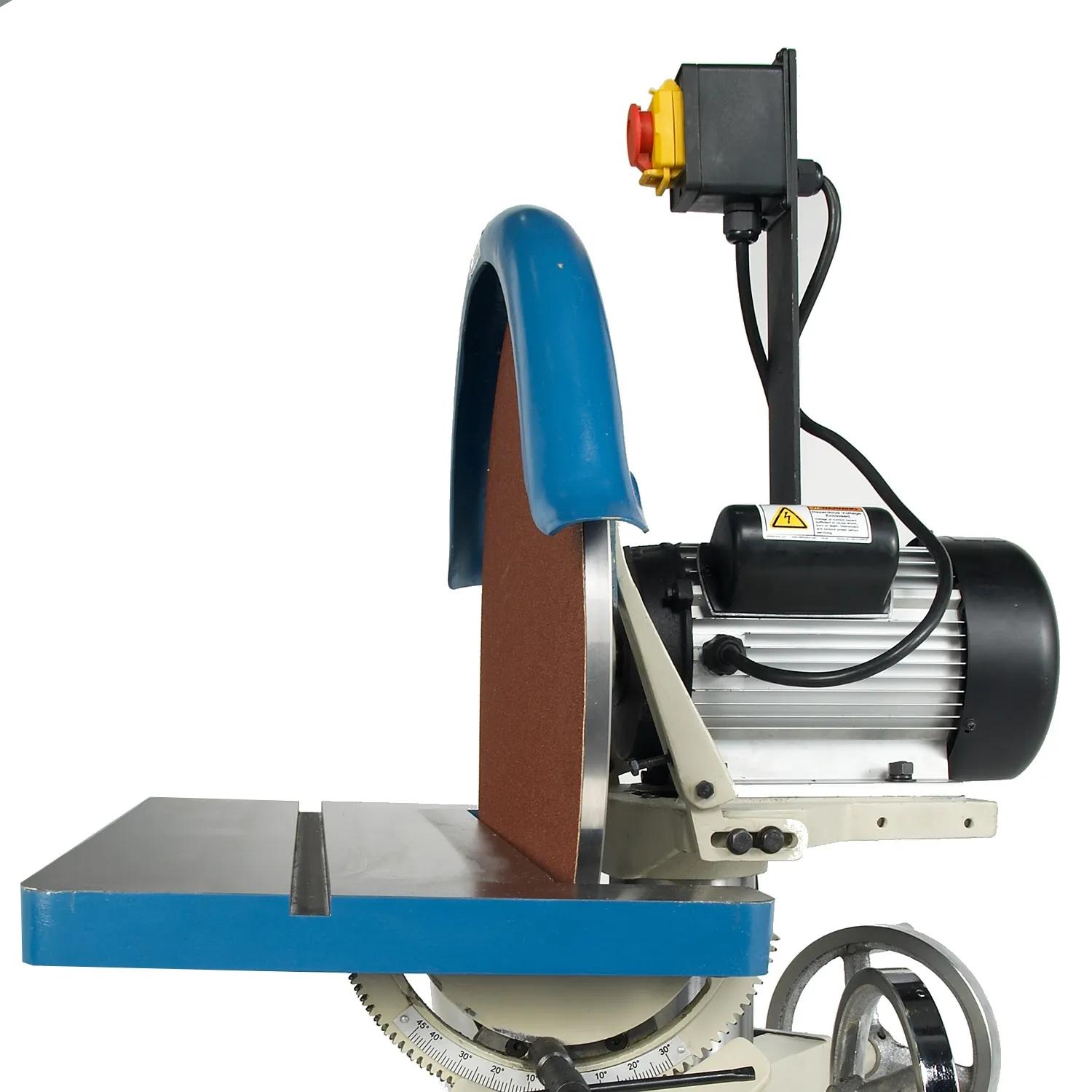

Industrial Grinding: The Baileigh DG-500 is a large-diameter 20″ disc grinder designed for heavy-duty metal finishing, smoothing burrs, chamfering edges, and cleaning up castings in fabrication and machine shops.
Power & Performance: Equipped with a 2 HP motor that runs on 220 V single-phase electrical service, the DG-500 delivers reliable power and consistent performance for industrial grinding tasks.

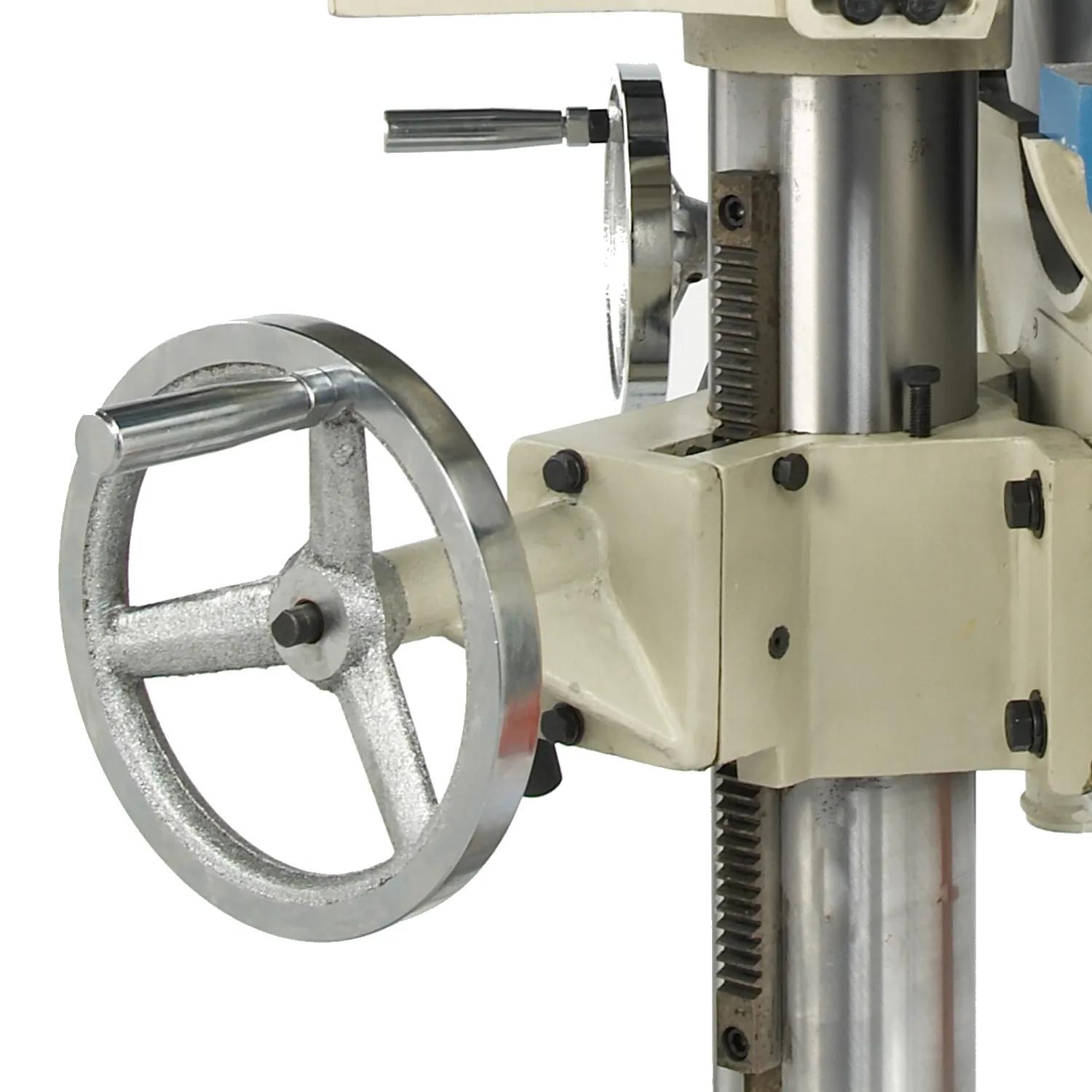

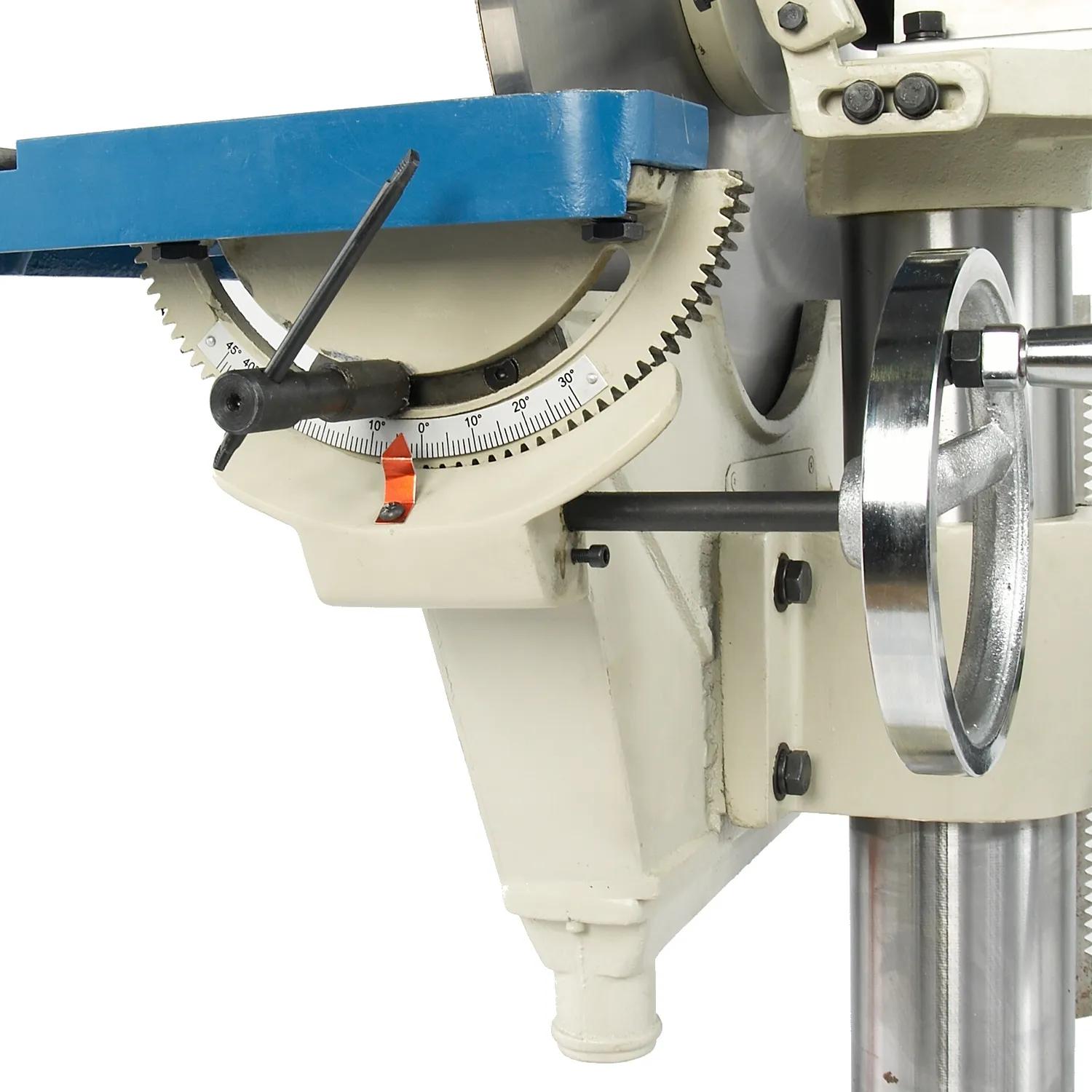

Control & Adjustment: This disc sander includes a tilting worktable adjustable up and down the column via a hand wheel and a chamfer adjustment that allows vertical chamfering up to 45°, plus a convenient dust port for shop cleanup.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Disc diameter: Large 20″ diameter grinding disc for heavy material removal.
- Motor power: Powered by a 2 HP industrial motor.
- Voltage: Operates on 220 V single-phase electrical service.
- Disc speed: Rotates at approximately 1,100 RPM for consistent grinding.
- Worktable size: 25.5″ x 14.5″ worktable supports sizable parts.

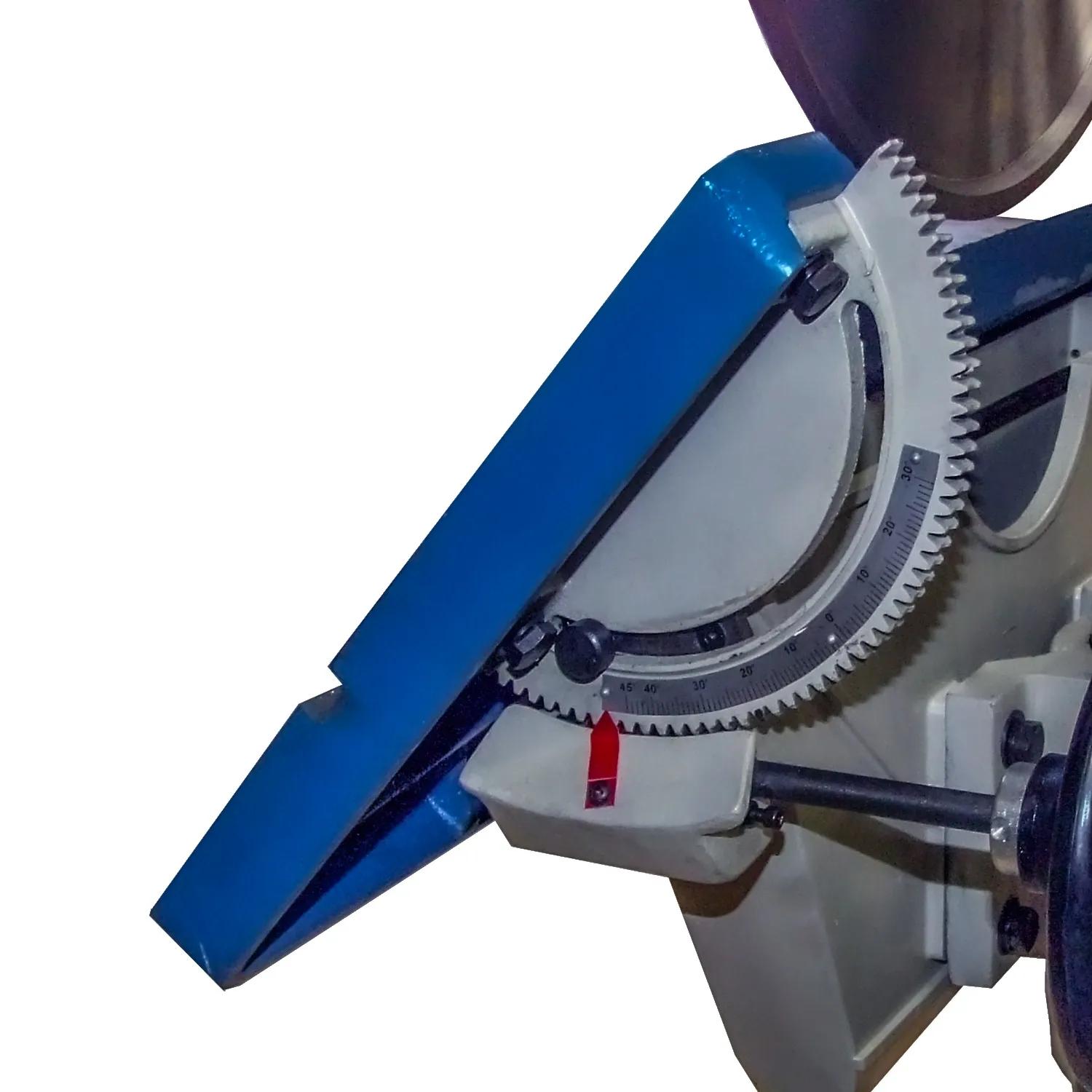

- Tilt adjustment: Worktable tilts upward and downward for angled grinding.
- Chamfer control: Hand wheel allows vertical chamfer positioning up to 45°.
- Dust port: Convenient dust port for shop vacuum connection and cleanup.
- Construction: Cast iron base and worktable reduce vibration and increase rigidity.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1002708
- Disc Diameter20 in.
- Gross Weight400.0
- Horse Power (HP)2
- Input Power220V Single Phase
- Model NumberDG-500
- Motor HP2
- Motor PhaseSingle
- Motor Speed1100 RPM
- Motor Voltage220
- Net weight400.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Warranty1 Year
