Manual Cold Saw Cs315Eu

Product image is only a representation, actual product appearance may differ slightly

  • Manual Cold Saw Cs315Eu
  • Manual Cold Saw Cs315Eu
  • Manual Cold Saw Cs315Eu
  • Manual Cold Saw Cs315Eu
  • Manual Cold Saw Cs315Eu
  • Manual Cold Saw Cs315Eu

Description


Why is the manual CS-315EU our best-selling industrial cold saw? Because we designed it to make reliably perfect, mill-like cuts for many years—at a price that won’t break the bank.


  • Accepts a 12.5” blade (included).
  • 4” round tube capacity at 90°.

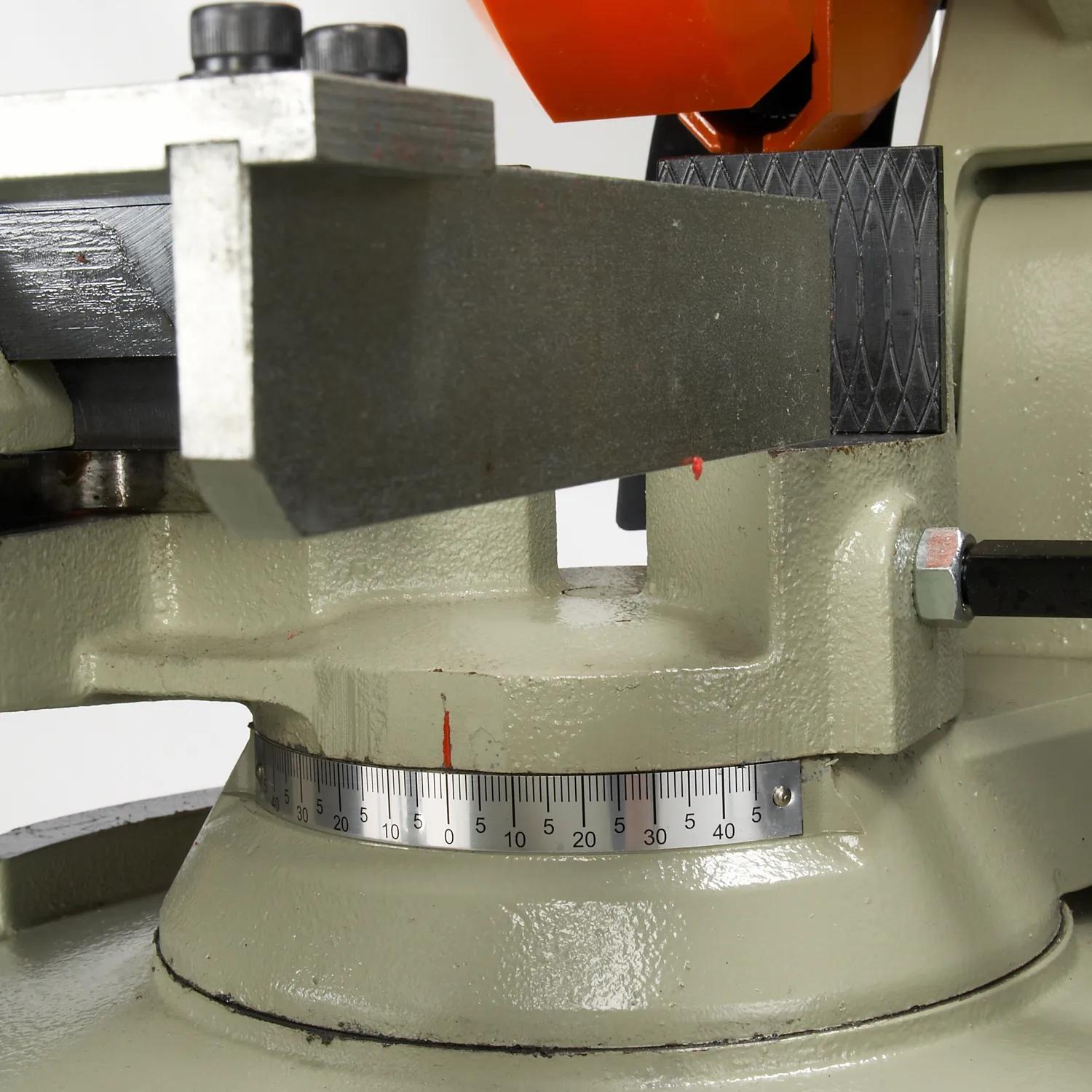

  • Miters 45° to the left and right.
  • Spins at 52 rpm to cut through solids, tubing, or pipe.
  • Perfect for cutting mild steel, but can handle other material with the proper blade.

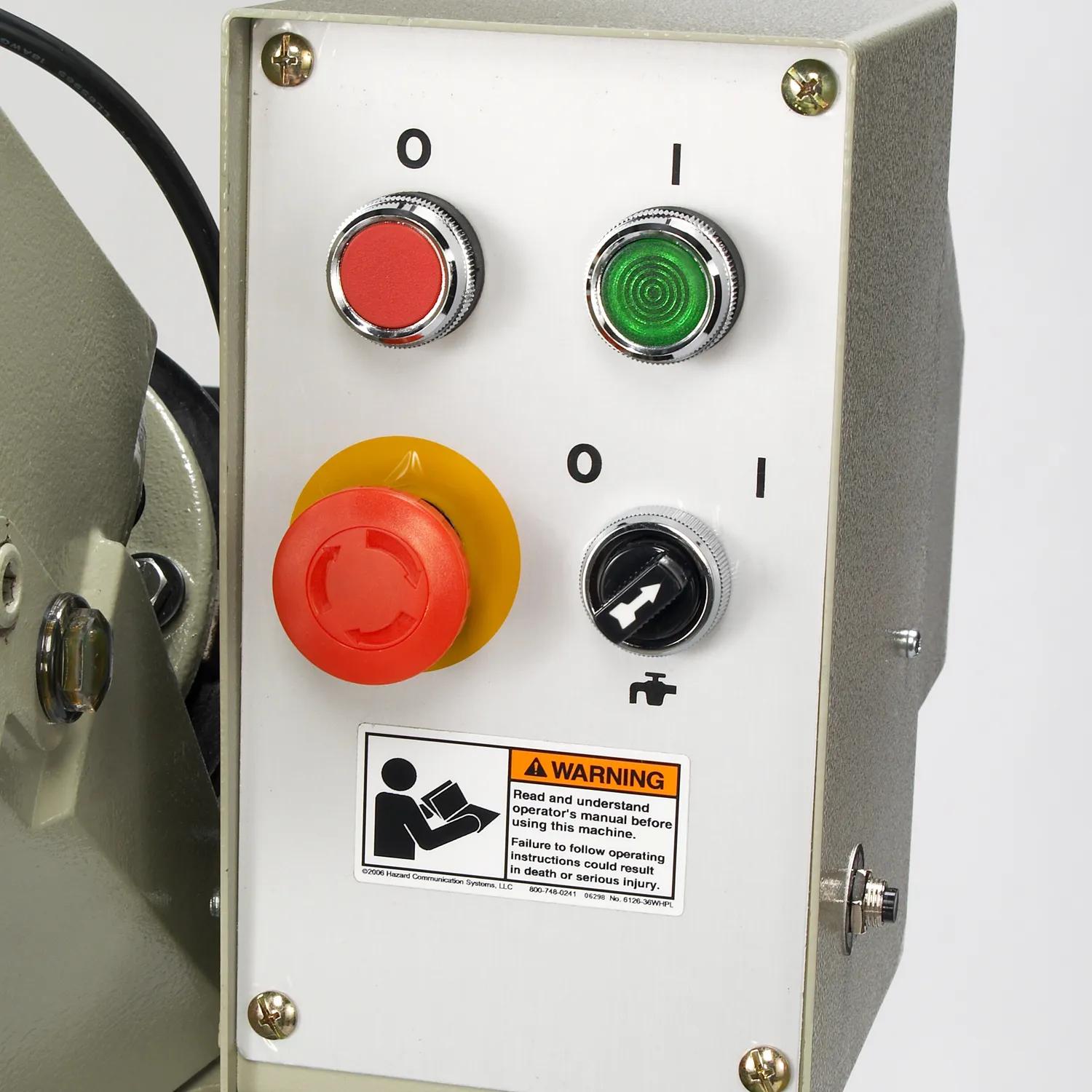

  • Strong 2.5 hp motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life.
  • Runs on 220-volt 1-phase 60Hz power.
  • Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength.
  • European-style vise has a taper lock system for fast clamping and unclamping to increase production.

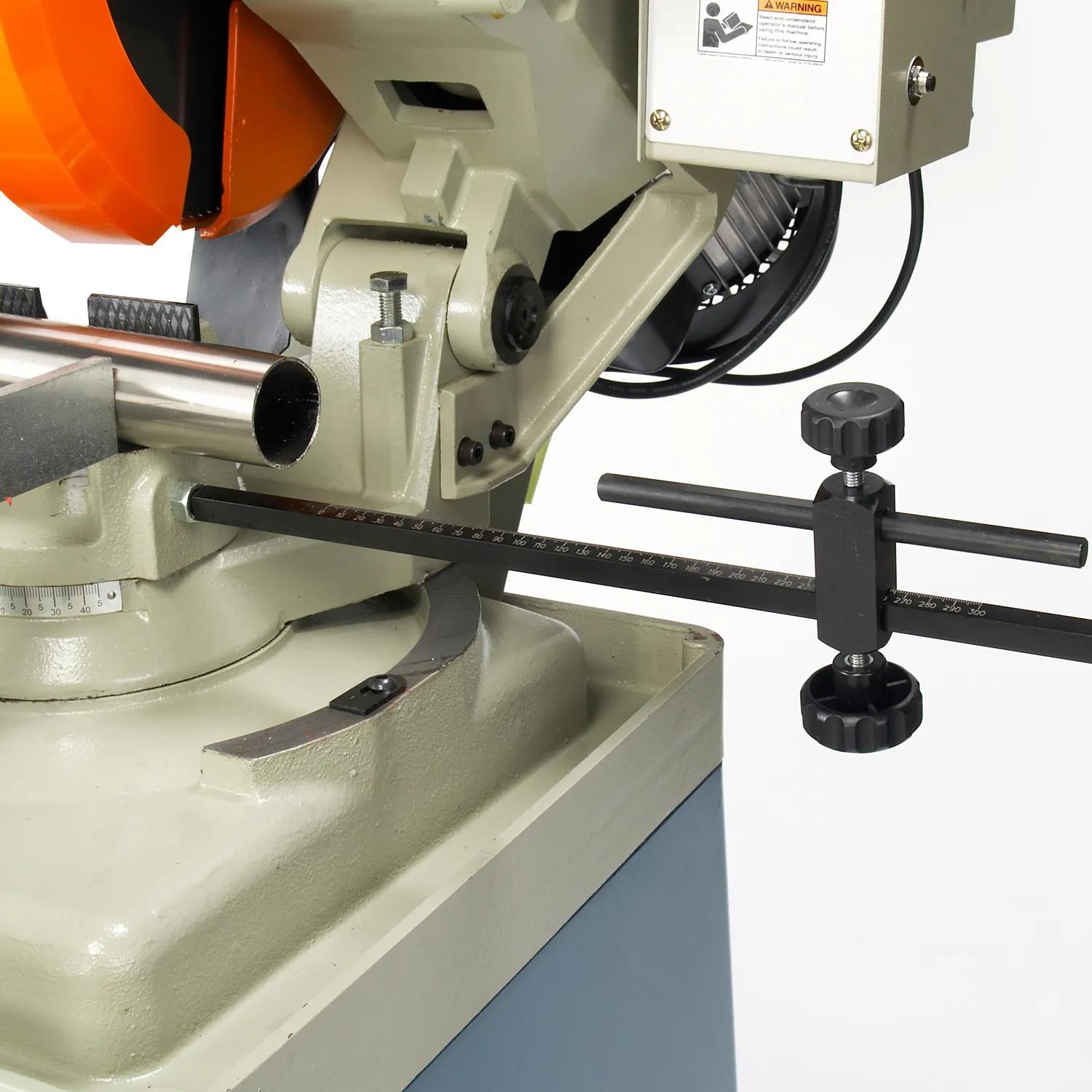

  • Serrated vise jaws grip the material tightly, so it won’t budge during cutting.
  • Vise clamps on both sides of the cut, reducing blade chatter and prolonging blade life.

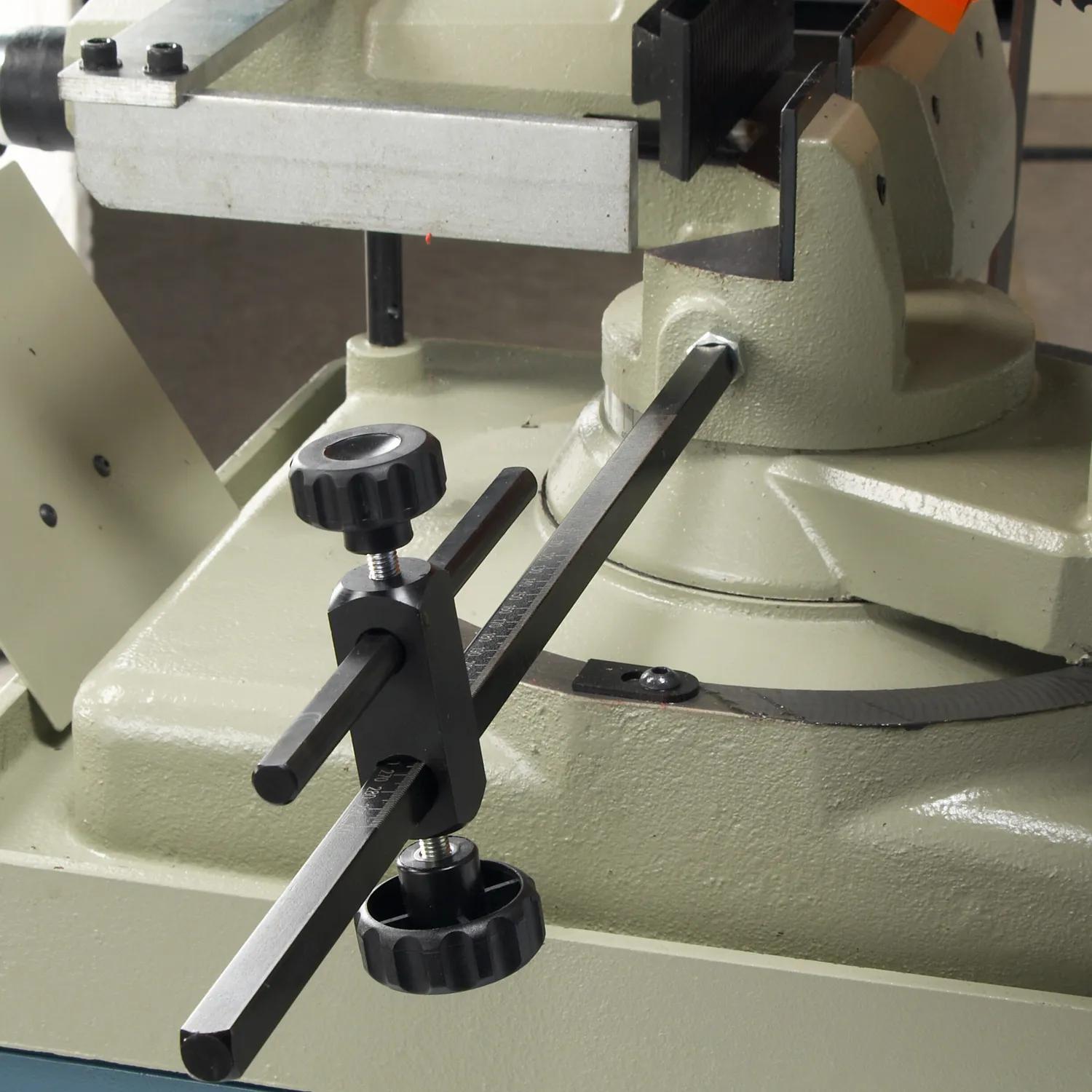

  • Stop rod helps you easily cut repeatable lengths for production runs.
  • Rigid cast iron base stabilizes the machine for straight, accurate cuts.
  • Heavy-duty molded steel stand raises the saw to a convenient cutting height.

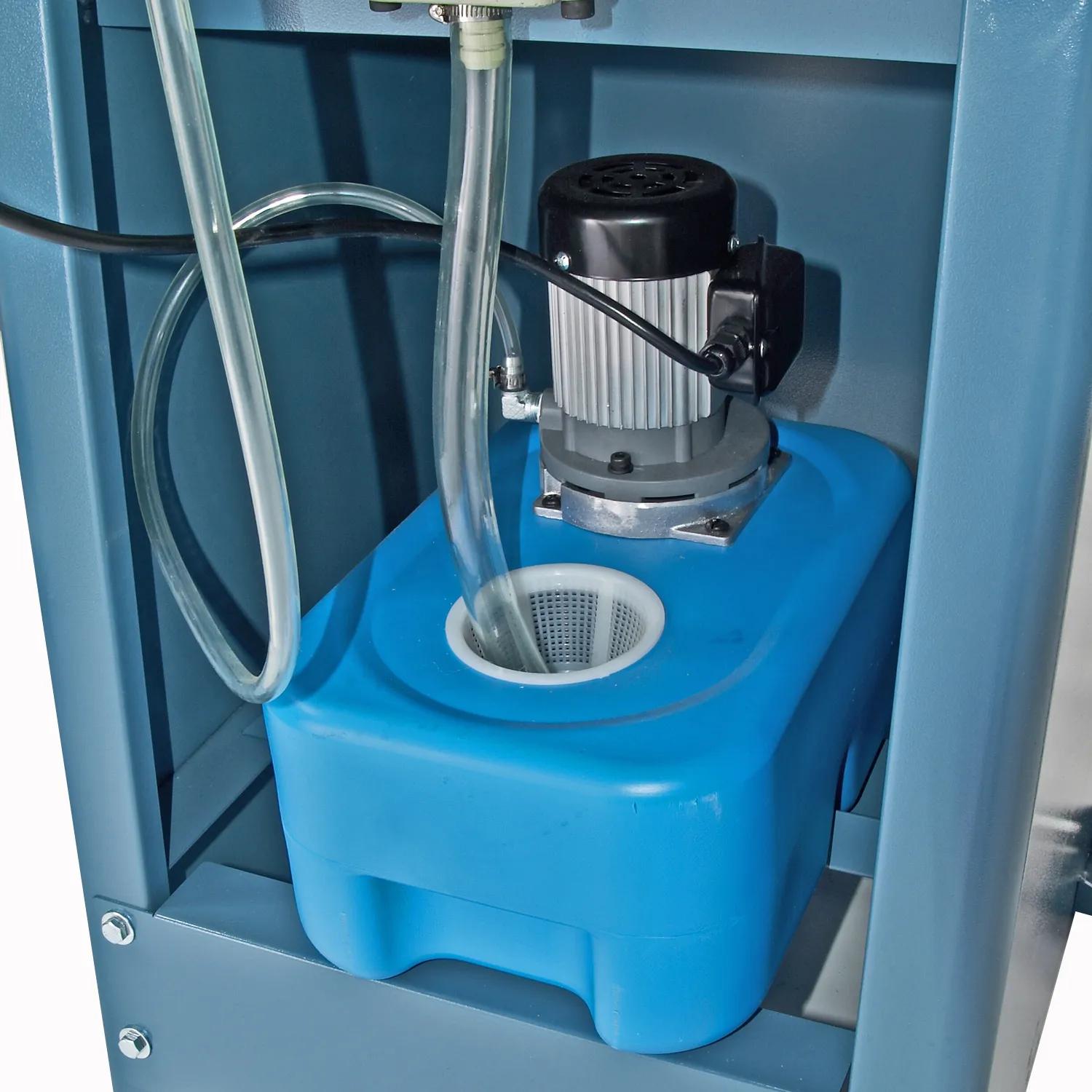

  • Powerful integrated coolant pump lubricates the blade and washes chips away.
  • Flood coolant system increases cut quality, makes the saw easier to handle, and makes the saw and blades last longer.
  • We keep replacement parts in stock for fast shipping.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone from our team of experienced metalworkers.

Recommended for:

  • Small to medium industrial fabrication shops
  • Hot rod shops

Questions? Not sure which cold saw is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.


Read More Read Less

Specifications

Item Number CS-315EU
Country of Manufacture Taiwan
Max. Blade Diameter 12.5"
Operation Manual
Head Miter 45° Left / 45° Right
Round Solid at 45° 2"
Square Tube at 45° 3.2" x 3.2"
Round Tube at 45° 3.5"
Rectangle Tube at 45° 3.25" x 2.75"
Round Solid at 90° 2"
Rectangle Tube at 90° 4.25" x 2.75"
Square Tube at 90° 3.2" x 3.2"
Round Tube at 90° 4"
Coolant System Yes
Vice Style Single Action with Cam Lock
Max. Vice Opening 4.72"
Head Style Pivot
Arbor Size 1.26"
Motor 2.5 hp
Blade Speed 52 (rpm)
Power 220V / 1-phase
Shipping Weight 440lbs
Shipping Dimensions (Inches) 48x31x44

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Stories & Testimonials

Bailiegh's Machines Helped This Top Racing Team Become #1

When the crew at Mars Racing needed to build a new line of chassis, they turned to Baileigh's CS-31EU for smooth, accurate, burr-free cuts. With their new chassis finished, the team rose to #1 in their division in 2009.

Read the full story

Building High-Quality Frames for All-Terrain Wheelchairs

Tim Swenson created the Action Chair to help individuals with disabilities lead more active lifestyles. The fast, accurate, burr-free cuts produced by Baileigh's CS-315EU have been instrumental in producing the chair's high-quality frames.

Read the full story

Very Reliable

So far the machine we purchased has been extremely reliable and takes care of all our stainless steel cutting needs. One of the best parts in the price point. You get a lot for what you pay for. The other intangible is the reliability, works every time.

Make LLC

Q & A

Which is right for me: a cold saw or a band saw?

That choice depends on 3 main factors: cut quality, material size, and production speed.

Need to make the highest quality cuts with clean, mirror-like edges? Then you probably need a cold saw.

However, band saws can usually cut larger pieces of material than cold saws in the same price range. Band saws also cut more quickly than cold saws.


What’s the difference between a European-style vise and an American-style one?

European-style vises are faster for production, because they let you clamp and unclamp the material more quickly. The operator can get a better view of the cut with a European-style vise, as well.

American-style vises are self-centering. The vise keeps the material in the correct position, centered in relation to the descending blade.


How long do cold saw blades last?

A blade usually lasts 3 weeks to a month if you’re using it for an 8-hour shift with a correct setup.
