Manual Cold Saw Cs350M

Product image is only a representation, actual product appearance may differ slightly

  • Manual Cold Saw Cs350M
  • Manual Cold Saw Cs350M
  • Manual Cold Saw Cs350M
  • Manual Cold Saw Cs350M
  • Manual Cold Saw Cs350M

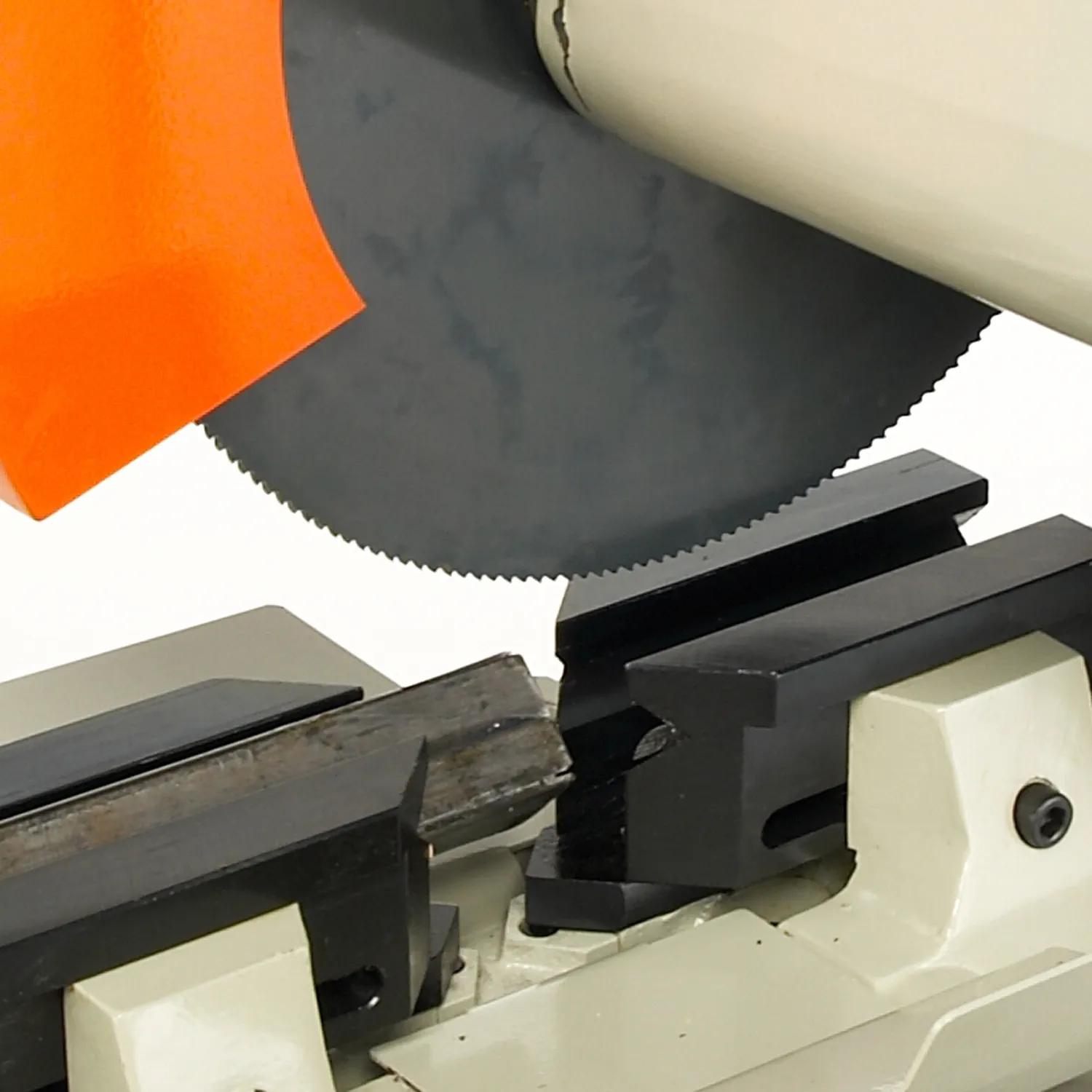

  • 90degree slot

Description



The CS-350M metal cutting saw is the best cold saw on the market for its price. It makes pristine cuts and includes features you won’t find on competing saws, like a self-centering vise and coolant system.



  • Accepts a 14” blade.
  • 4.25” round tube capacity at 90°.
  • Miters 45° right and 90° left, perfect for slotting applications.
  • 2 blade speeds: 26 and 52 rpm. Switch between them to cut a variety of materials.
  • Robust 4 hp motor runs on 220-volt 3-phase power.
  • All-metal gears in direct-drive head are ground and hardened for reliability.
  • American-style vise keeps the material perfectly centered with the blade for clean, correct cuts.
  • Backlash adjustment maintains tight tolerances and keeps “play” in the gearbox to a minimum.

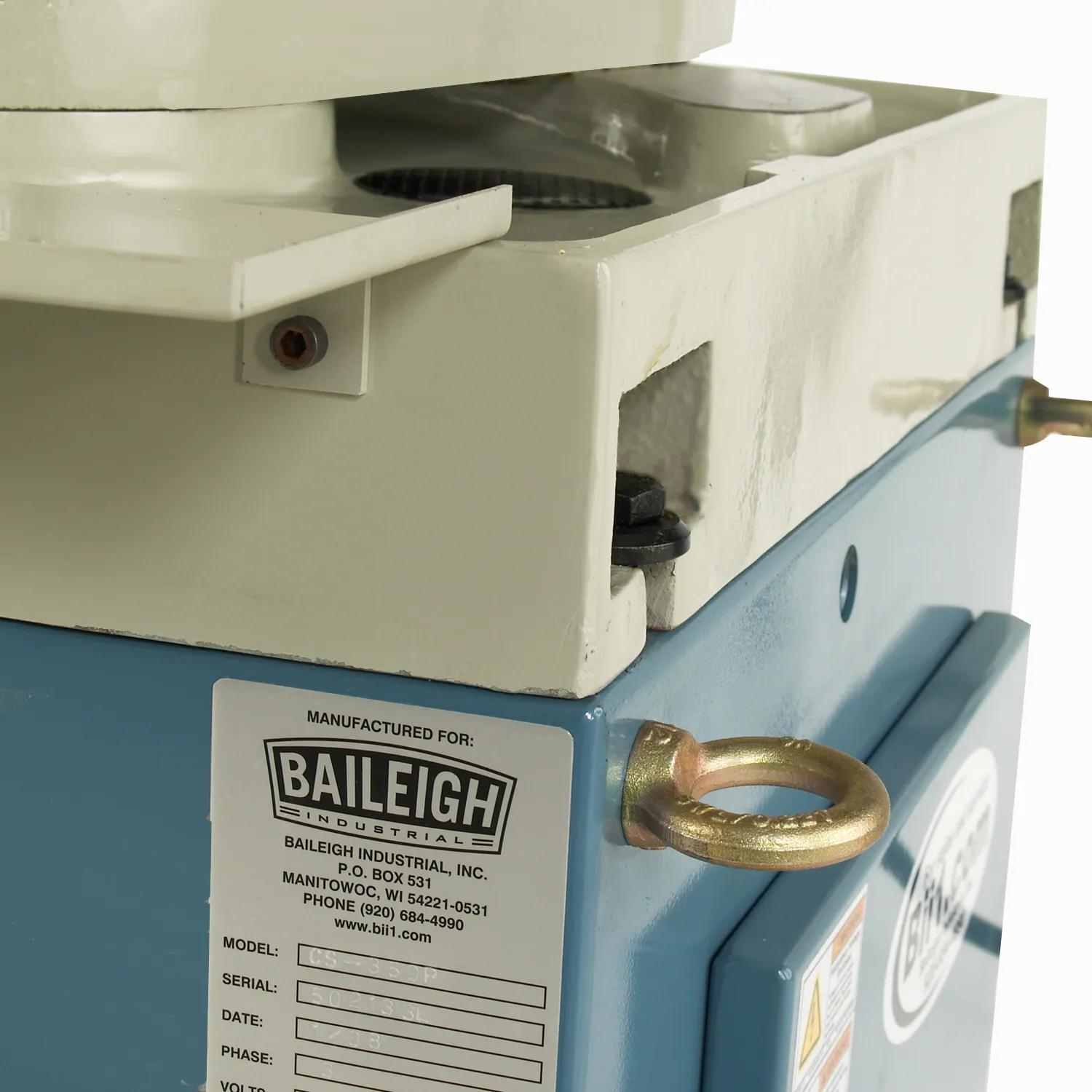

  • Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably.
  • Heavy molded steel stand brings the saw up to a comfortable cutting height.

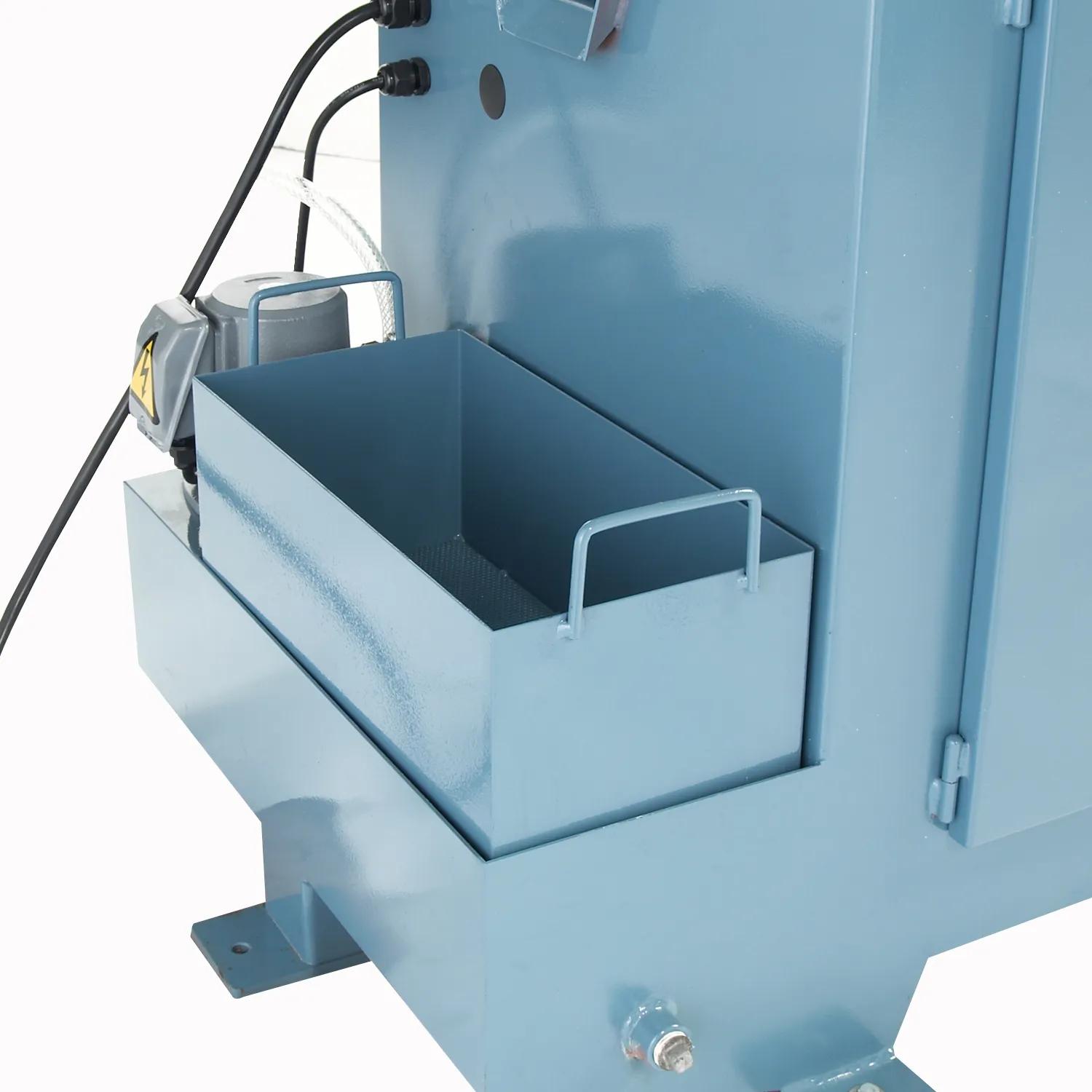

  • Industrial-grade flood coolant system ensures a long lifespan of use for both blades and saw and ensures high cut quality.
  • Coolant system lubricates the blade, reducing strain on the operator.
  • Replacement parts are in stock for quick deliveries.
  • We cover this circular cold saw machine with a 1-year parts warranty.
  • You can count on lifetime technical support by phone from our team of experienced metalworkers. Call whenever you need help.



Recommended for:

  • Marine rails
  • Playground equipment
  • Hand railings
  • Various chassis applications
  • Other fabrication cutting jobs



Questions? Not sure which cold saw is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.

Read More Read Less

Specifications

Item Number CS-350M
Country of Manufacture Taiwan
Operation Manual

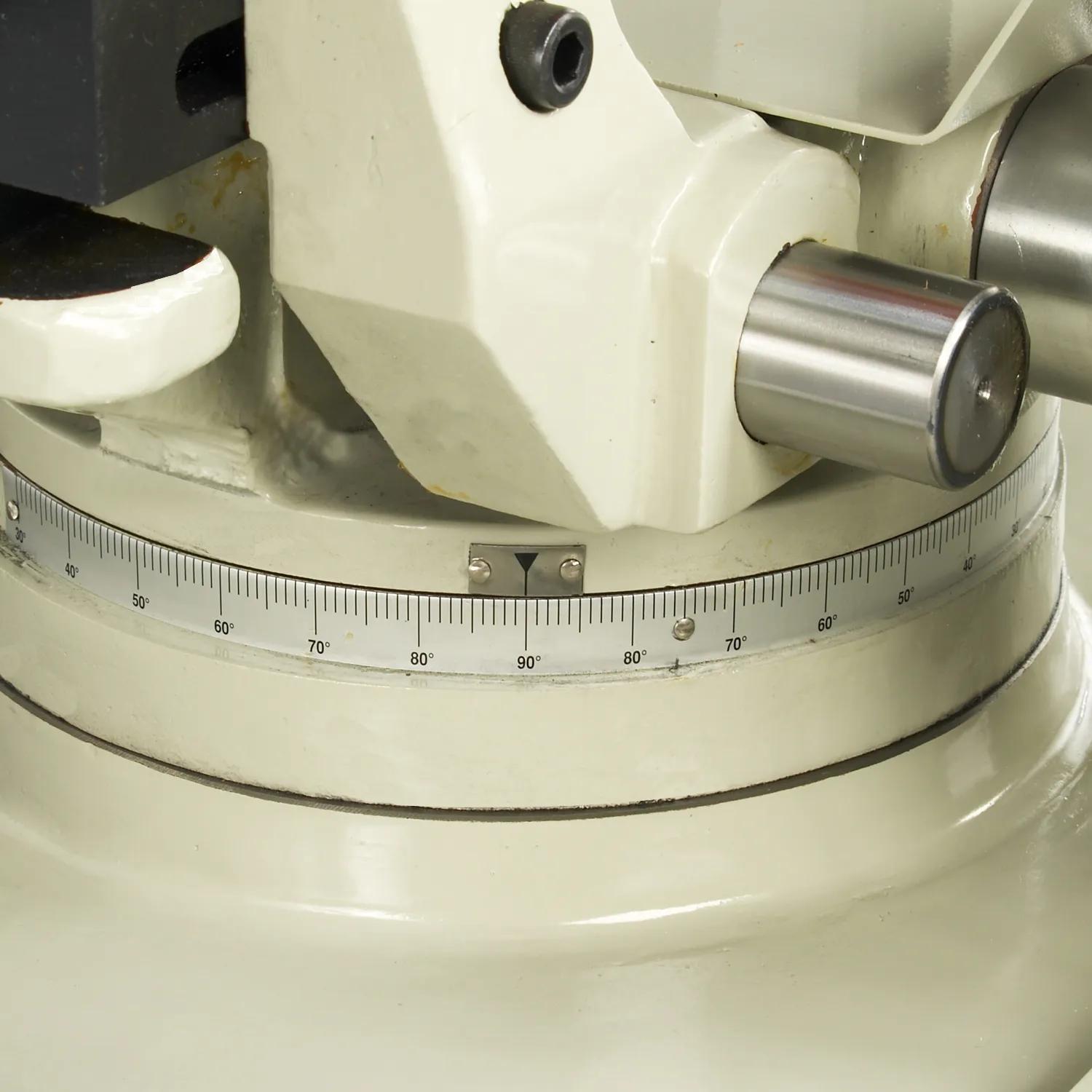

Head Miter 90° Slotting, 45° Left / 45° Right
Round Solid at 45° 1.575"
Square Tube at 45° 2.953" x 2.953"
Round Tube at 45° 2.953"
Rectangle Tube at 45° 2.953" x 2.362"
Round Solid at 90° 2.362"
Rectangle Tube at 90° 4.25" x 3.5"
Square Tube at 90° 4.25" x 4.25"
Round Tube at 90° 4.331"
Coolant System Yes
Slotting Capable Yes, Left and Right
Vice Style Dual Action, Self Centering
Max. Vice Opening 6.5"

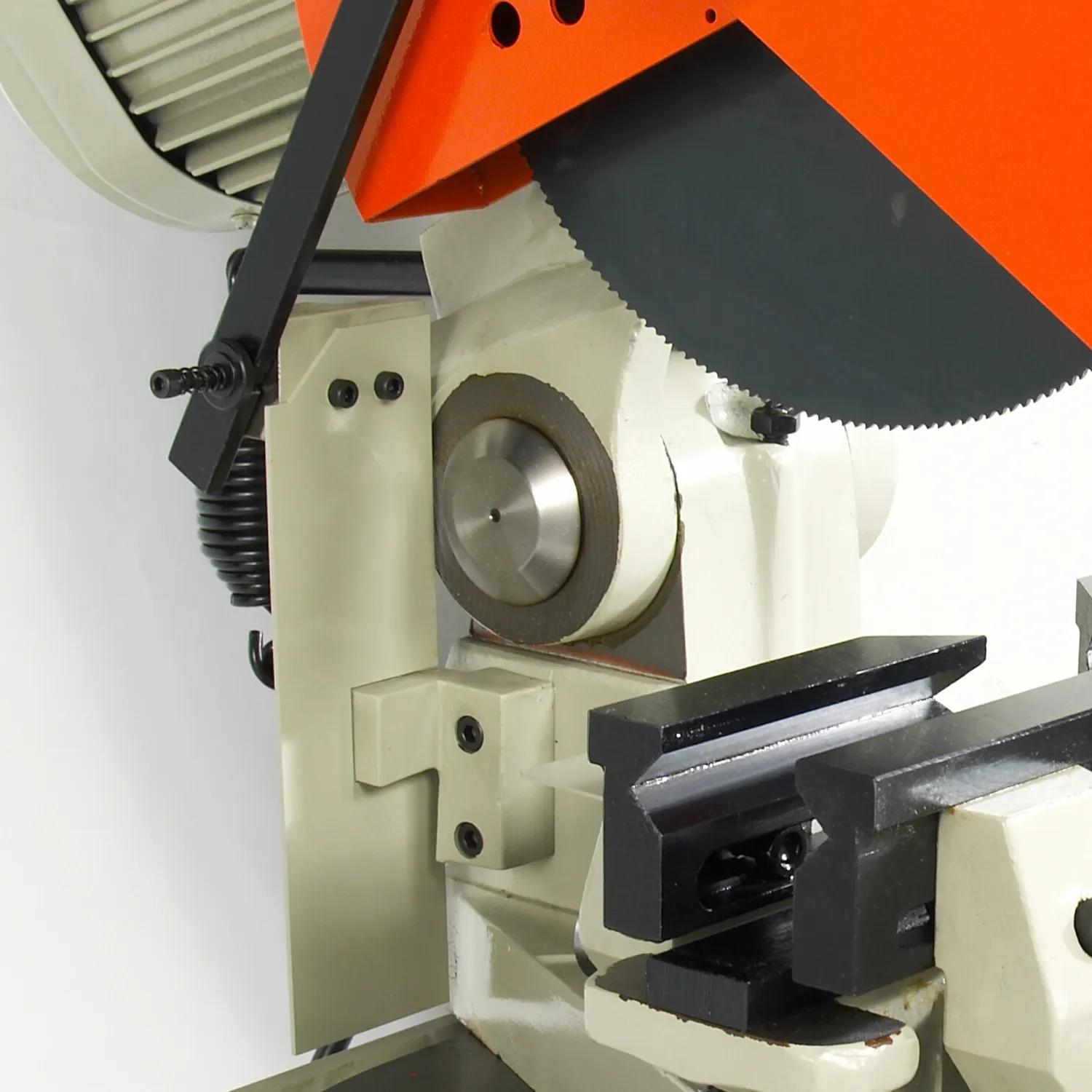

Head Style Pivot
Arbor Size 1.26"
Motor 4.0 / 3.0 hp
Blade Speed Two Speeds, 26 / 52 (rpm)
Power 220V / 3-phase
Shipping Weight 820 lbs.
Shipping Dimensions 60" x 44" x 68"

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Stories & Testimonials

"Dramatically Increased" Productivity and Profits

When the folks at Poison Spyder Customs were looking for a way to streamline their manufacturing process, they asked Baileigh to set up a solution. As they wrote to tell us, "Adding the...CS-350M to our shop has dramatically increased our bottom line, and we're able to produce parts in hours instead of weeks."

Read the full story

Great Addition to our Fab Shop

Our new CS-350 cold saw has performed flawlessly. The 14" diameter blade has increased our cold sawing capacity over our old 11" models. It’s nice to be ale to run some mid-range material through the Baileigh cold saw without having to put it up on the large band saw. The CS-350 has been a great addition to our fabrication shop!

Public Steel, Inc

Q & A

Which is right for me: a cold saw or a band saw?

That choice depends on 3 main factors: cut quality, material size, and production speed.

Need to make the highest quality cuts with clean, mirror-like edges? Then you probably need a cold saw.

However, band saws can usually cut larger pieces of material than cold saws in the same price range. Band saws also cut more quickly than cold saws.


What’s the difference between a European-style vise and an American-style one?

European-style vises are faster for production, because they let you clamp and unclamp the material more quickly. The operator can get a better view of the cut with a European-style vise, as well.

American-style vises are self-centering. The vise keeps the material in the correct position, centered in relation to the descending blade.


How long do cold saw blades last?

A blade usually lasts 3 weeks to a month if you’re using it for an 8-hour shift with a correct setup.
