Product Details
Industrial Construction: The Baileigh CFP-70HD is a heavy-duty 70-ton C-frame hydraulic press designed for industrial pressing, straightening, and forming applications. It features a fully welded steel frame and hydraulically operated slide for maximum durability and consistent performance.
Power & Performance: Equipped with a robust 12 HP, 480 V 3-phase hydraulic system, this press delivers powerful, smooth pressing force and two-speed operation for precision control across a variety of metalworking tasks.

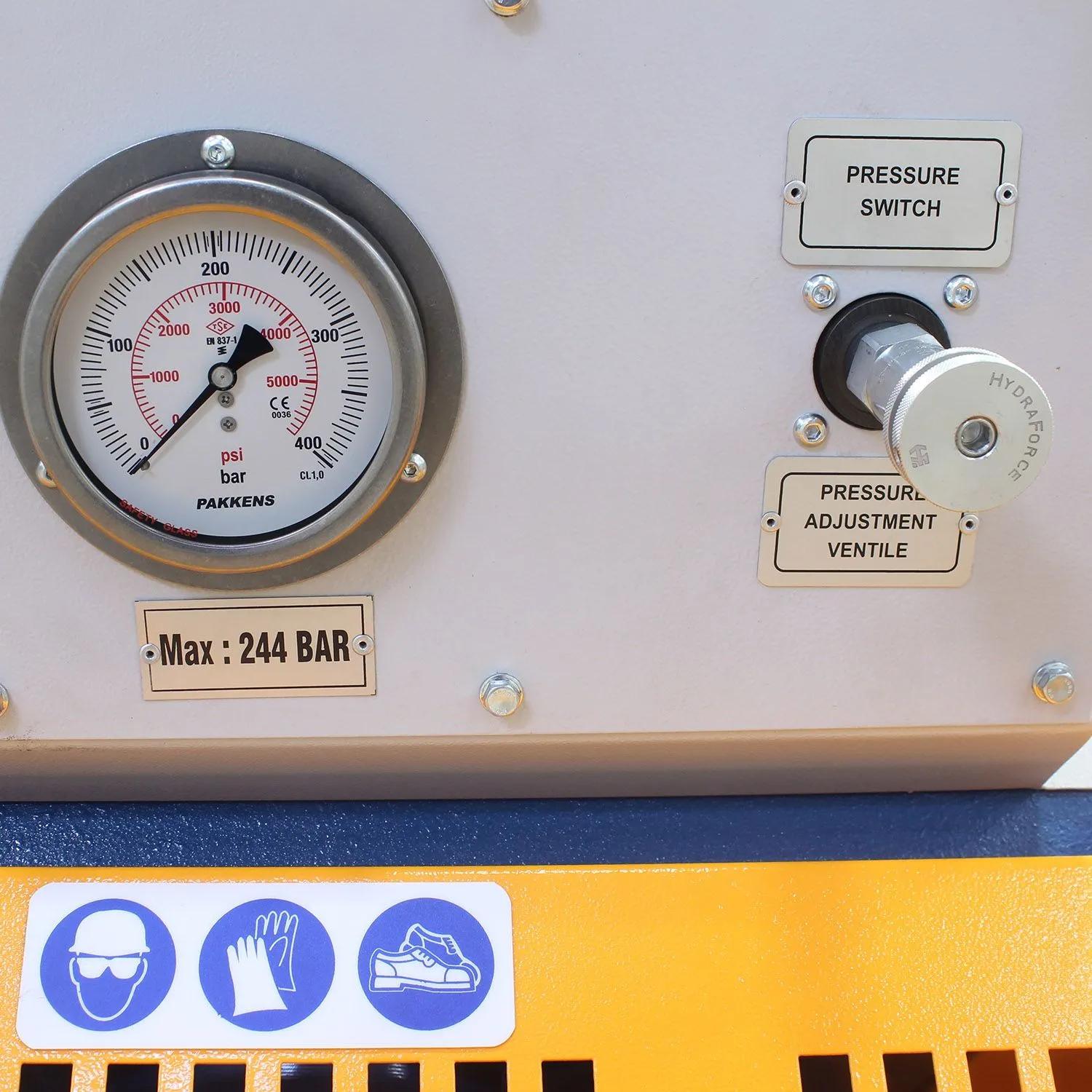

Control & Operation: Operators benefit from an adjustable slide pressure and a separate control pedestal for accurate positioning and enhanced workflow efficiency in demanding shop environments.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Capacity: Rated for 70 tons of pressing force.
- Return force: Provides 9 tons of return force.
- Motor power: Includes a 12 HP, three-phase electric motor.
- Voltage: Operates on 480 V 3-phase electrical service.
- Stroke length: Features a 16.5 in. stroke.
- Shank hole: 3.9 in. shank hole for tooling access.
- Construction: Heavy fully welded steel frame for rigidity and durability.

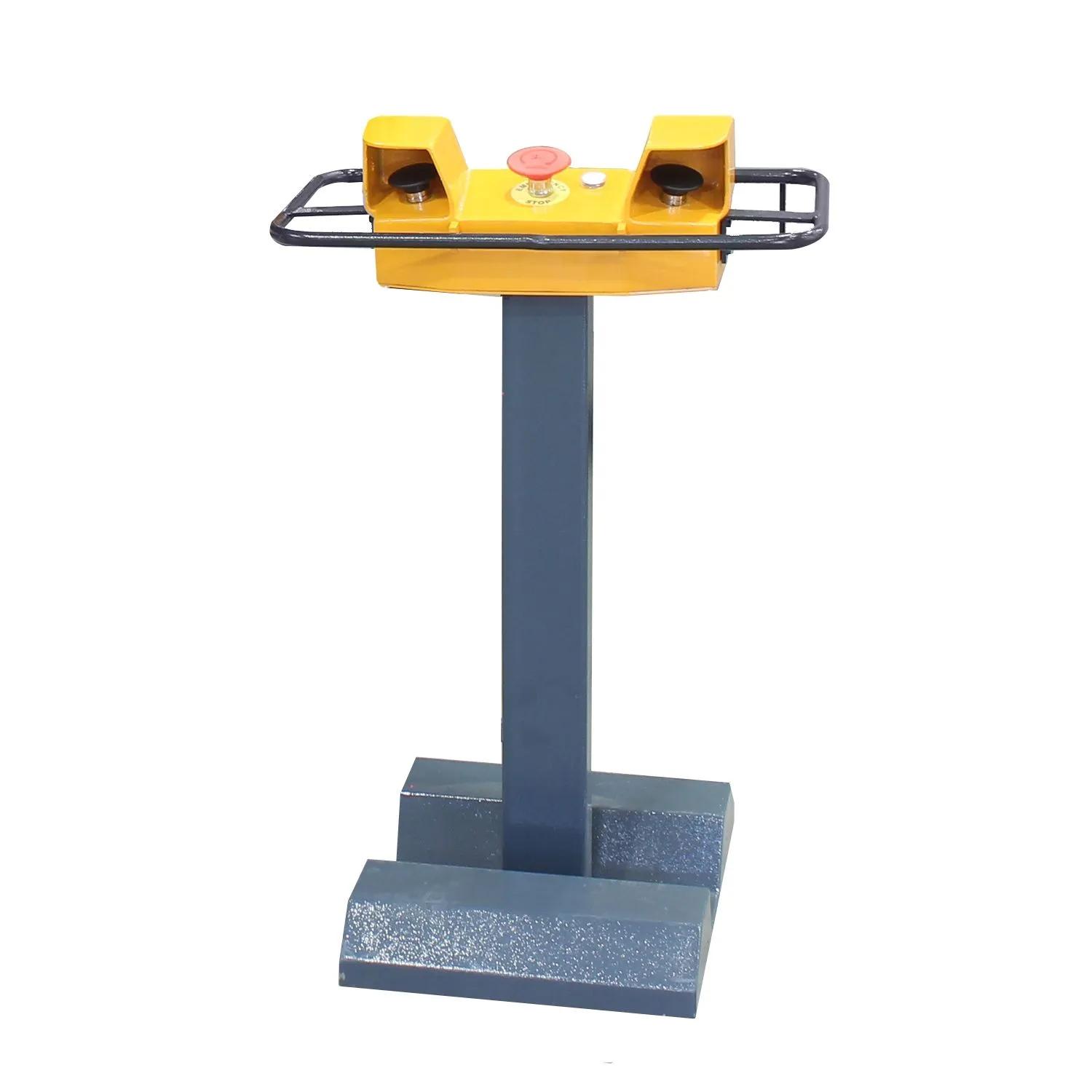

- Control pedestal: Separate pedestal enhances operator control and positioning.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1013161
- Gross Weight8180.0
- Input Power220V Three Phase
- Model NumberCFP-70HD
- Net weight8180.0
- Old Material Number1013161
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Stroke Length16.5 in.
- Warranty1 Year
