Product Details

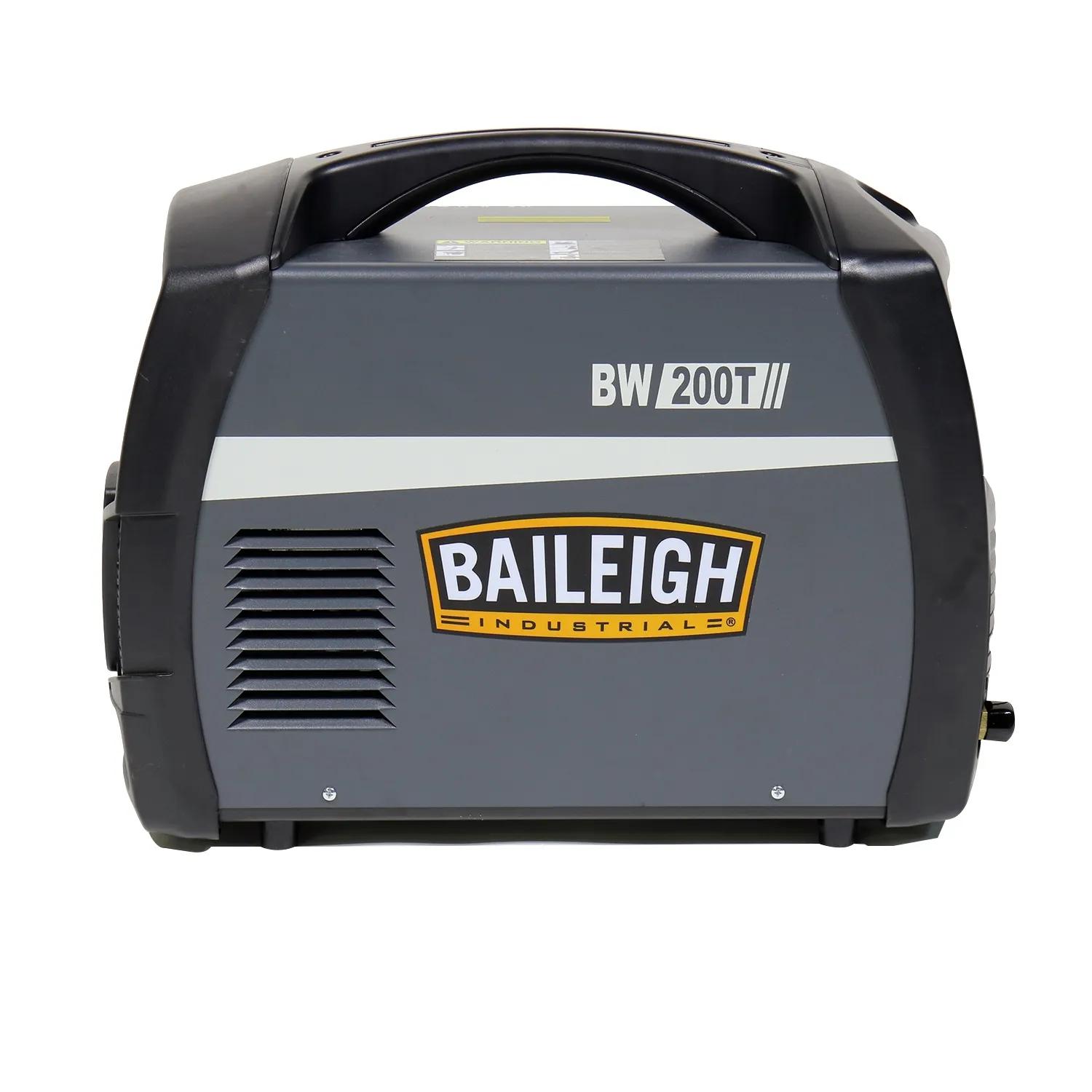

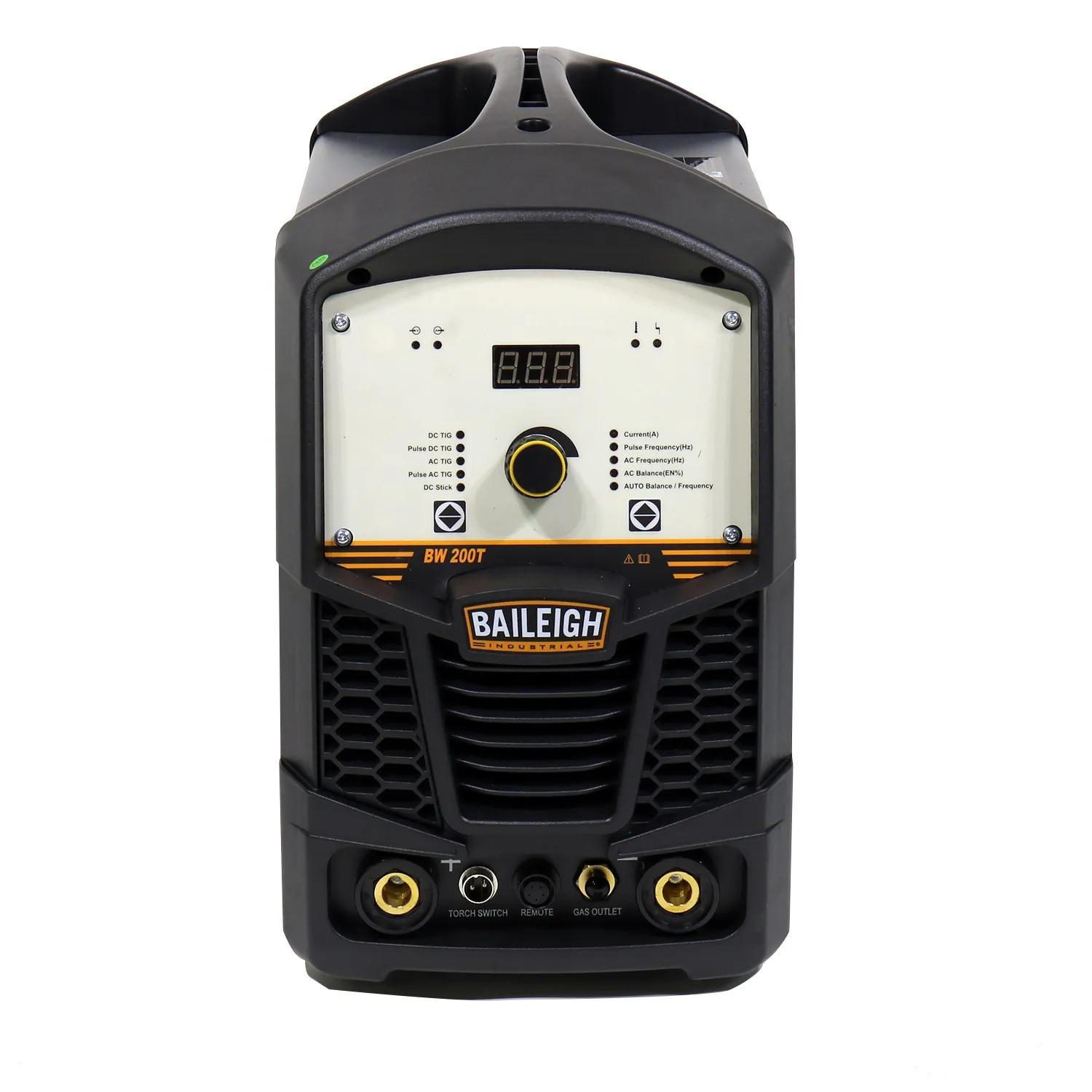

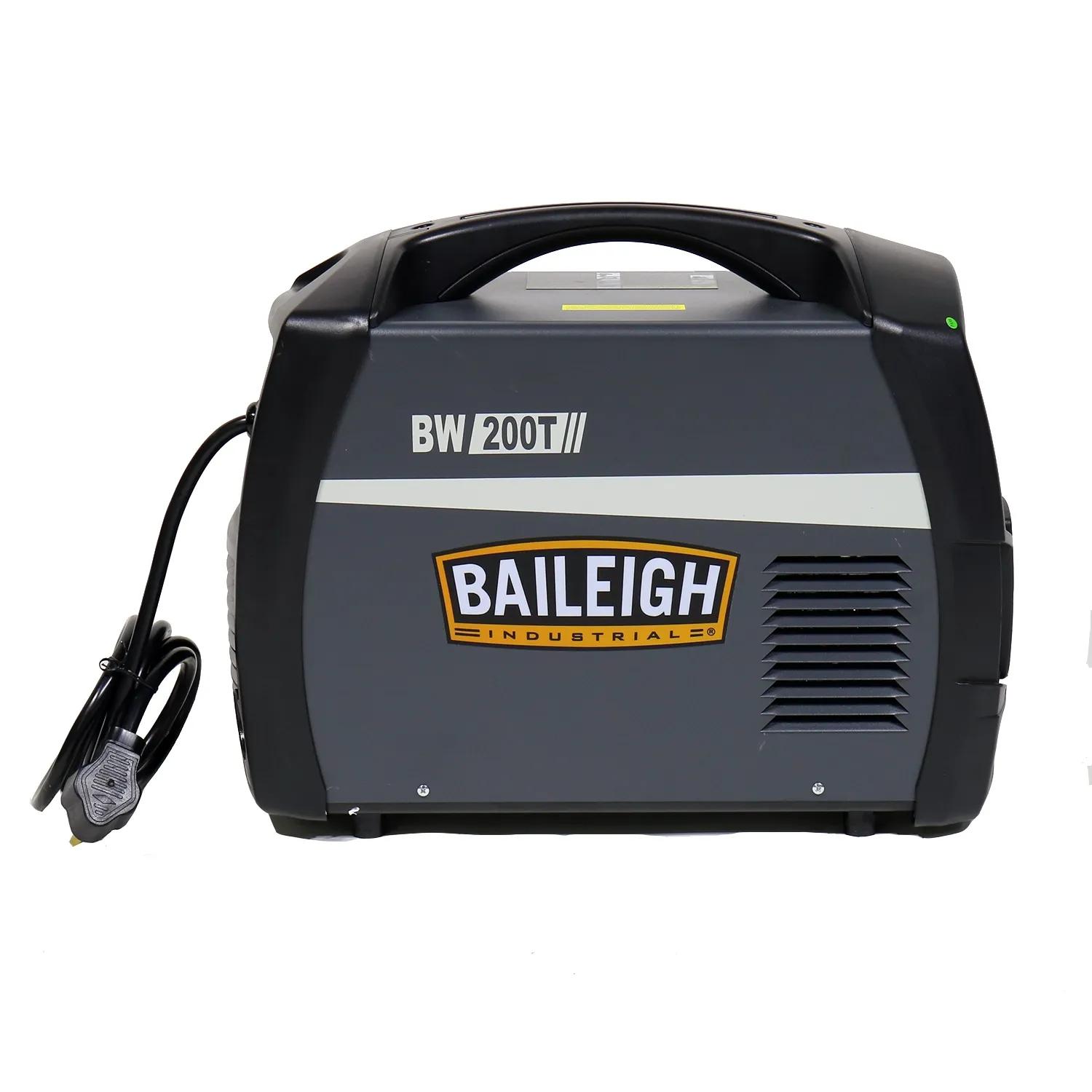

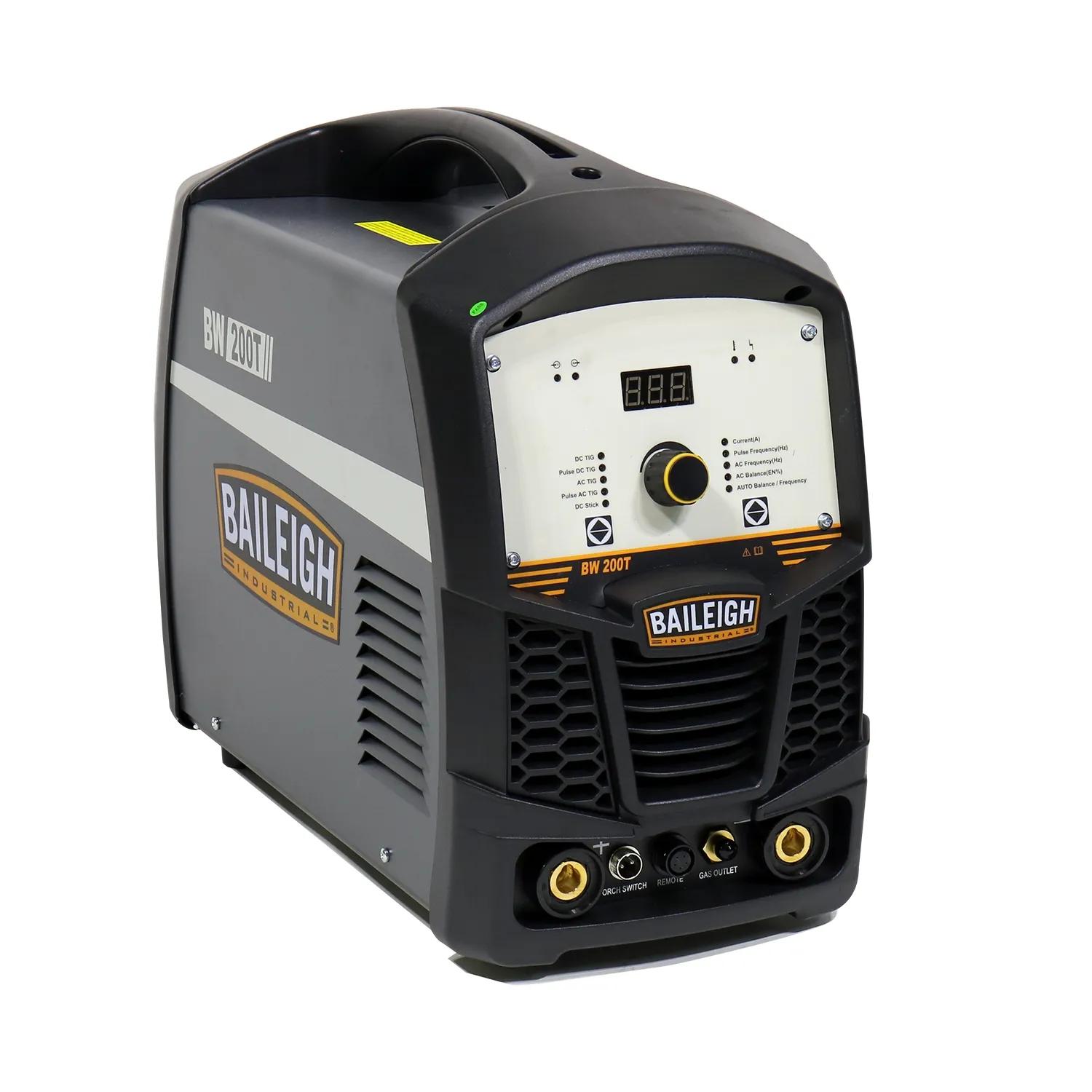

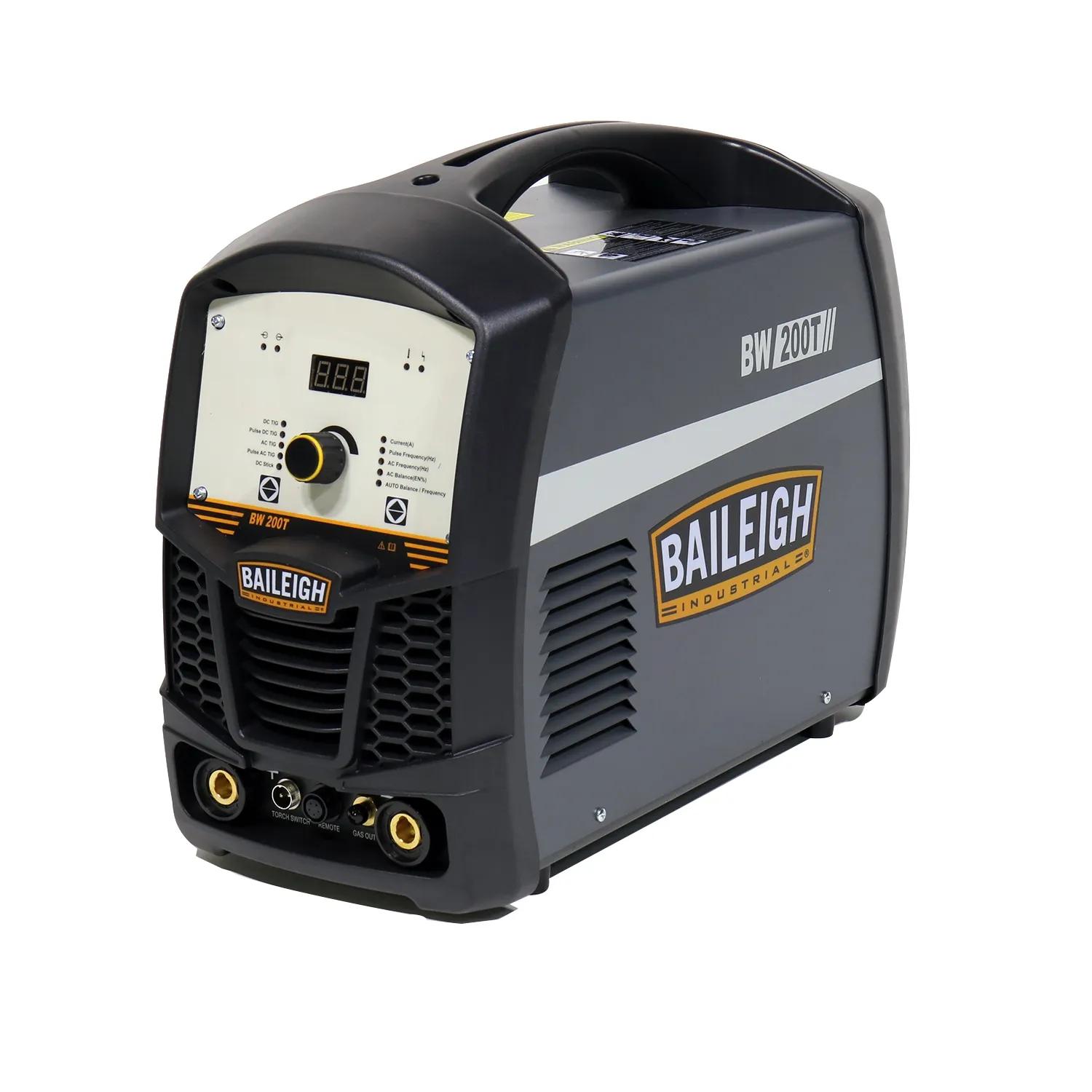

Industrial Construction: The Baileigh BW-200T is a robust AC/DC pulse TIG welder designed for demanding industrial TIG welding applications, offering precision control and reliability for aluminum and more.
Power & Performance: Featuring an IGBT inverter with dual voltage capability on 120/230 V single-phase power, the BW-200T provides up to 200 amps of welding current with variable AC pulse and frequency controls for improved arc performance.

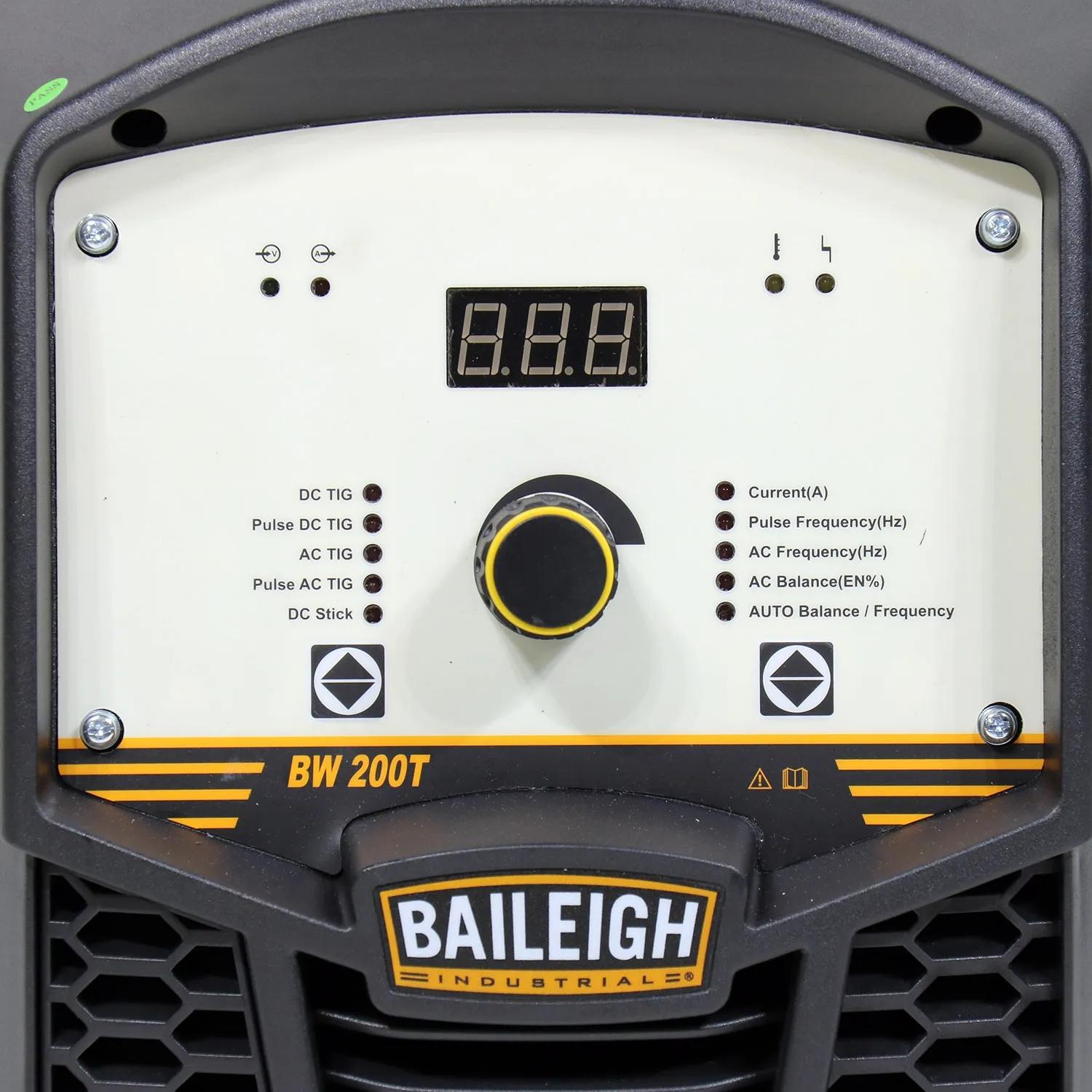

Versatile Welding Modes: This multi-function welding machine supports TIG, AC pulse TIG, DC pulse TIG, and Stick welding, along with remote adjustment, AC balance control, and adjustable pre/post gas and slope settings for precise weld control.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Input power: Accepts 120/230 V single-phase input.
- Maximum output: Provides up to 200 A welding current.
- TIG current range: 10–95 A (120V) and 10–200 A (230V) DC TIG rated current.
- Duty cycle: Rated 40% @ 120V and 20% @ 230V duty cycle.
- No-load voltage: 65 V no-load voltage at both 120 V and 230 V.
- Cooling system: Equipped with a fan-cooled thermal management system.
- Enclosure protection: Built to IP21S protection standard.

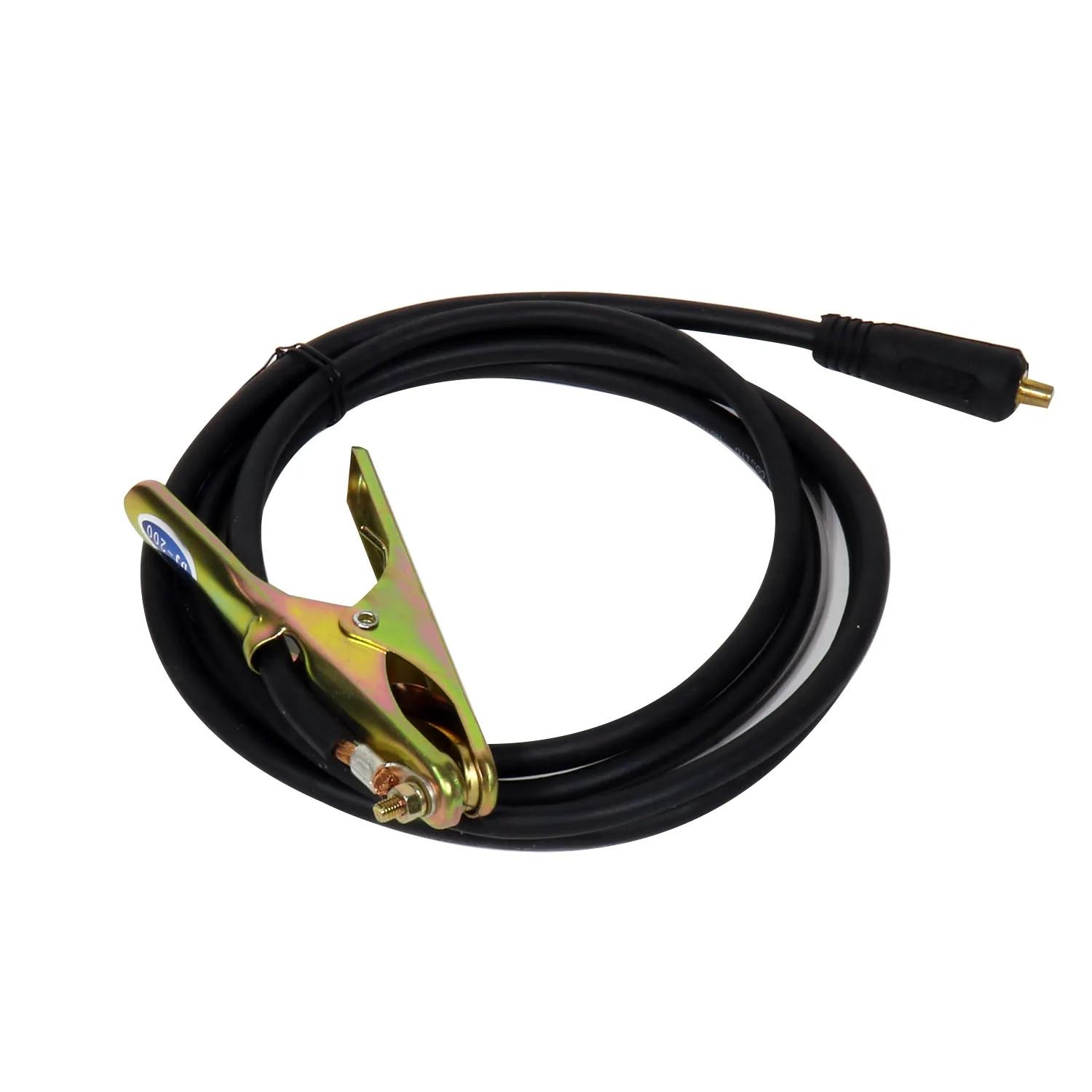

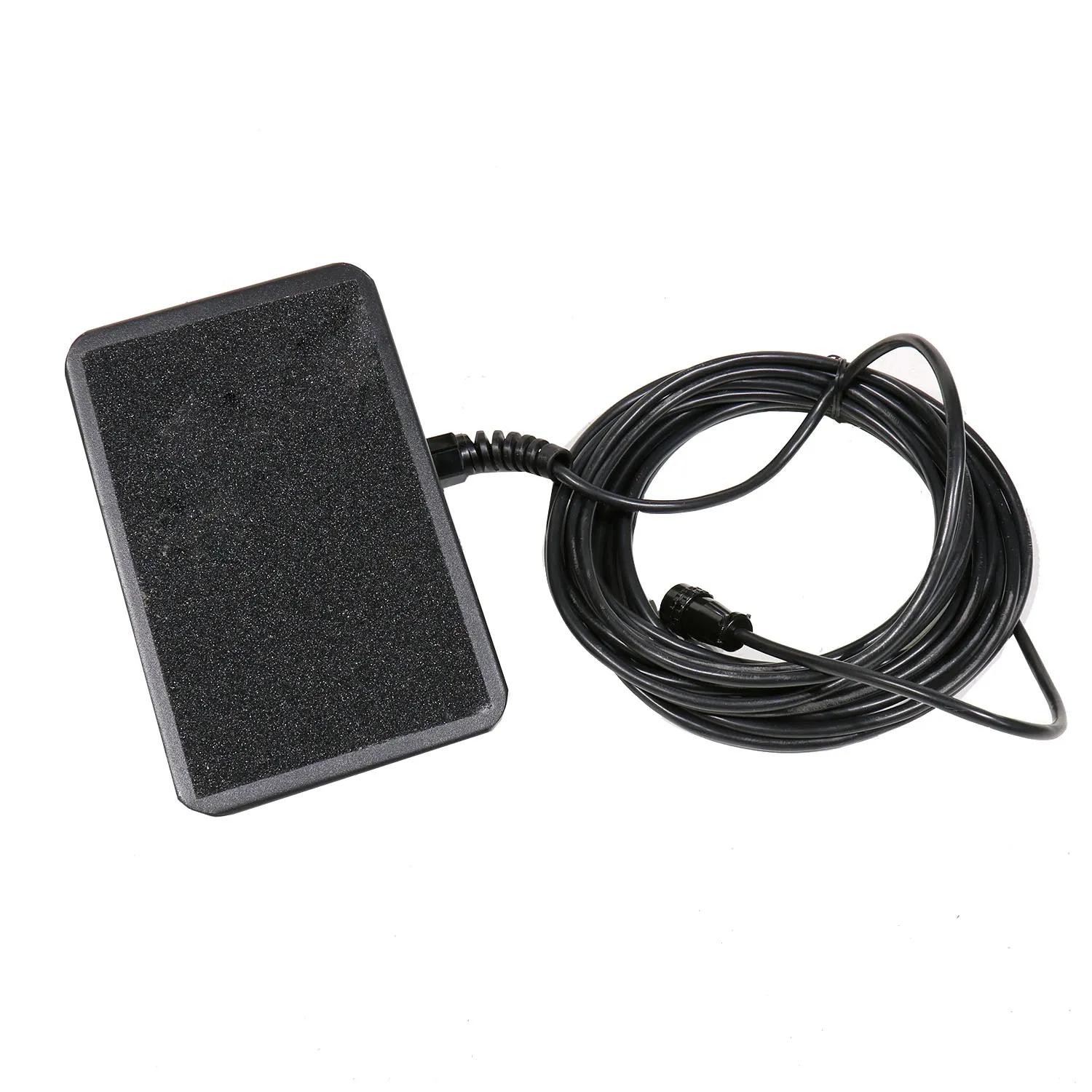

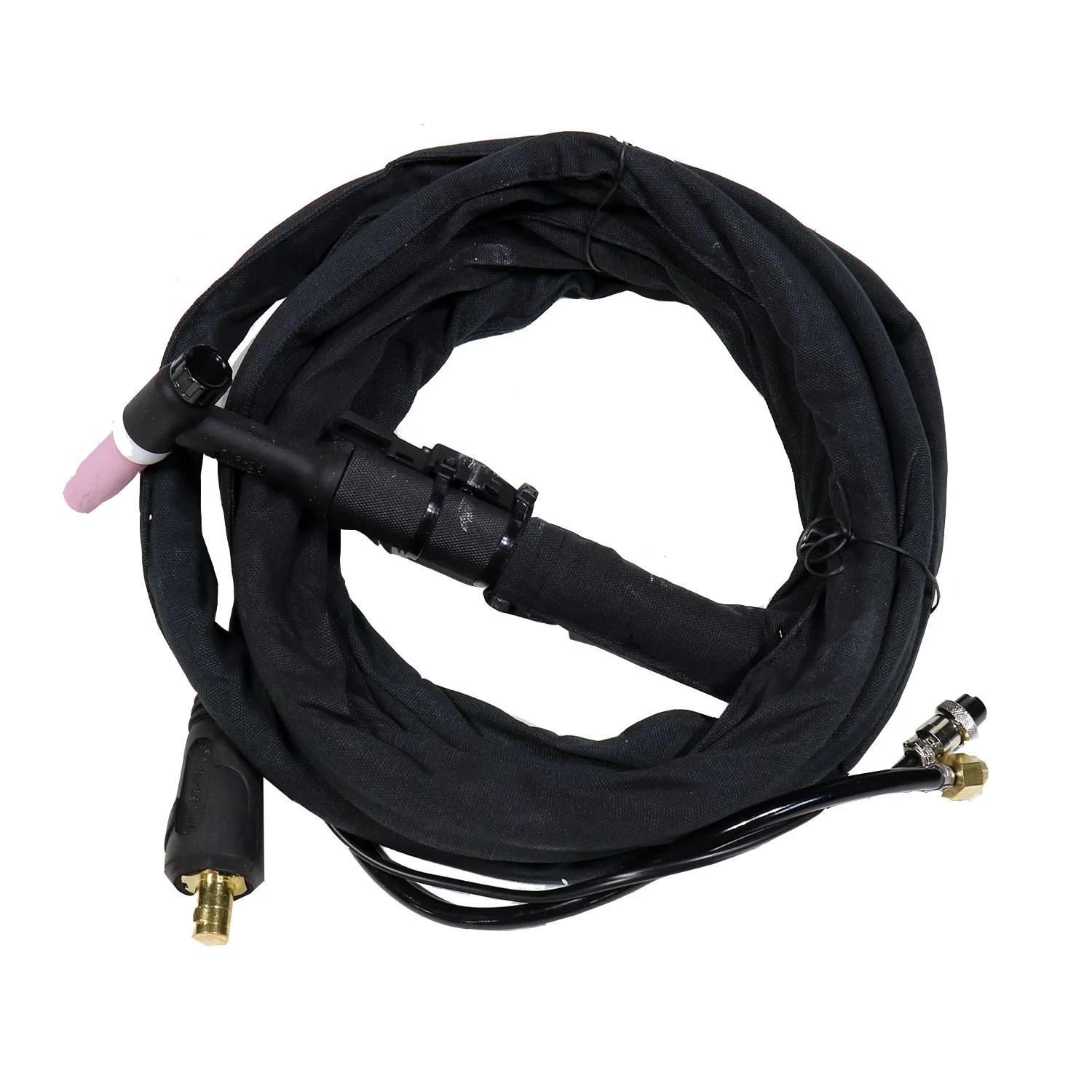

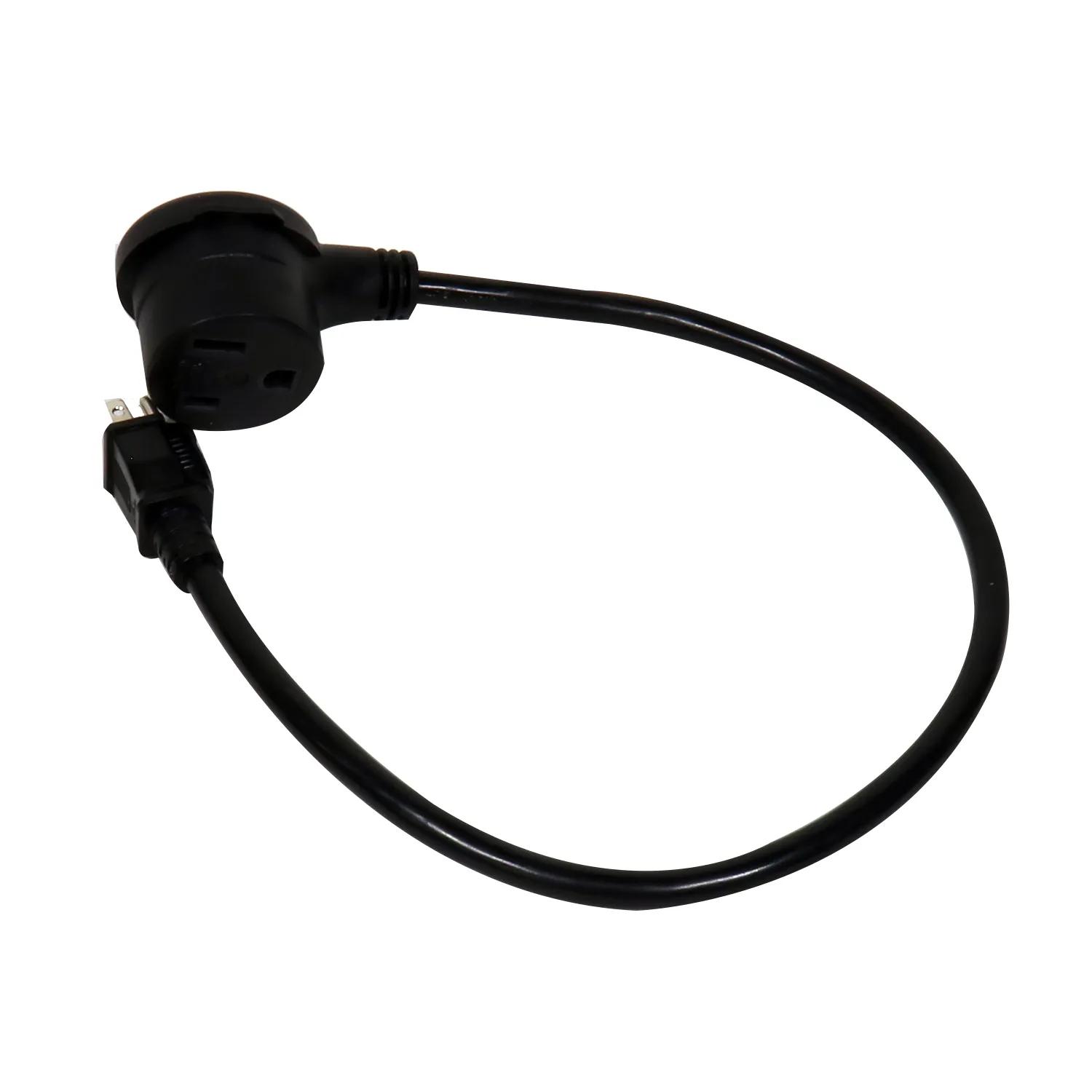

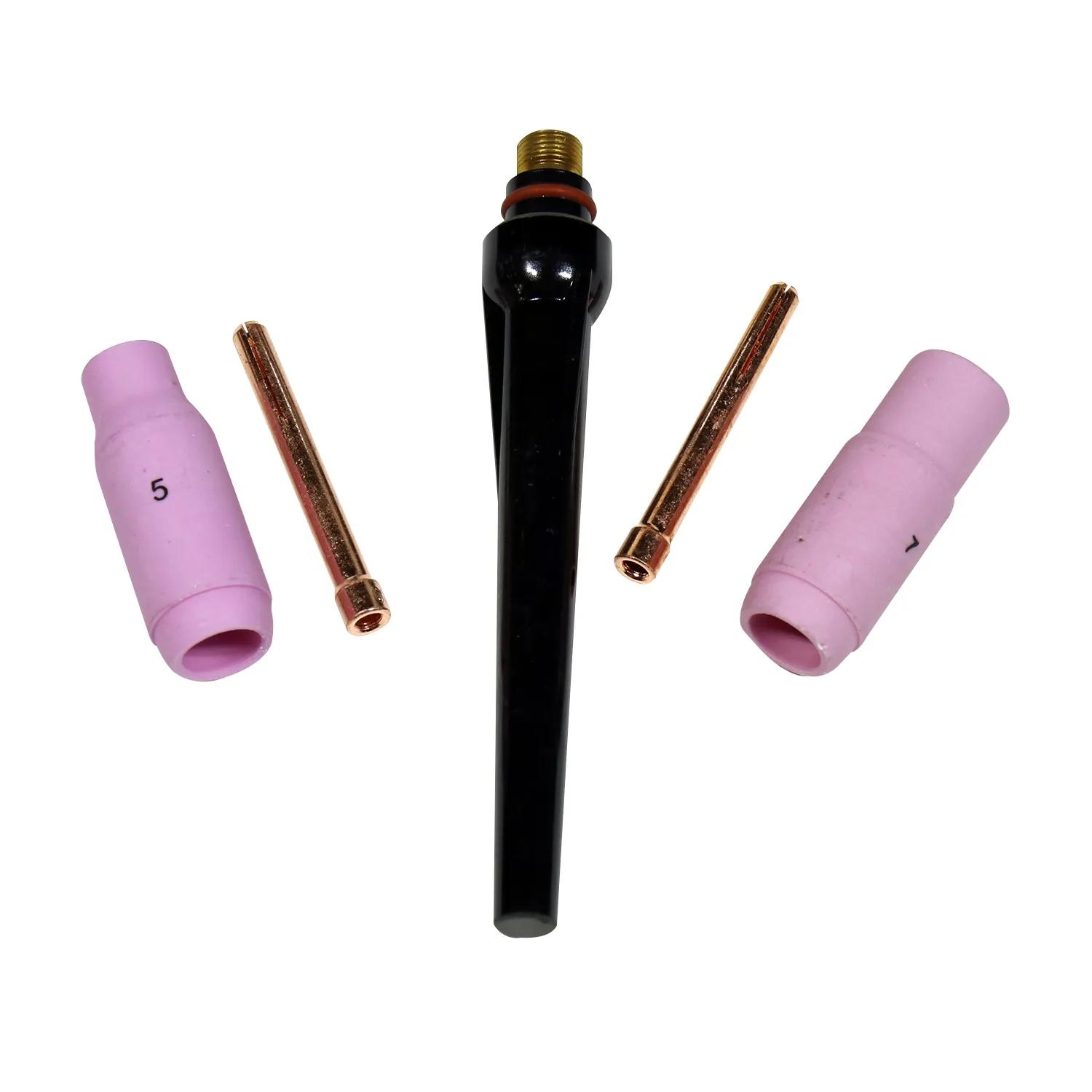

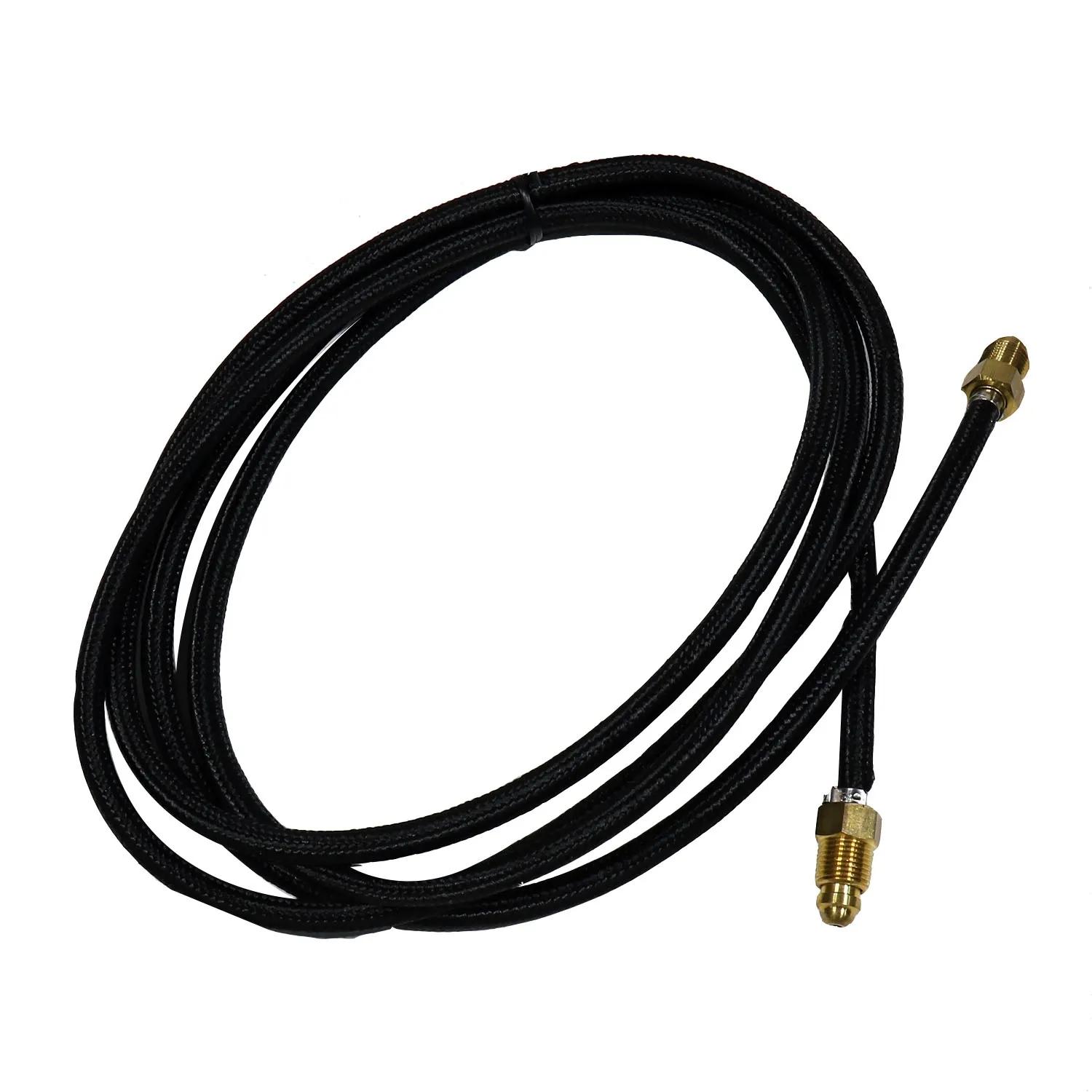

- Included accessories: Includes TIG torch, ground clamp, 6-50P 250V plug, adapter to 120 V, gas hose with regulator, and foot pedal.
- Pulse & frequency: Variable pulse ratio and frequency for AC and DC TIG.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1021971
- Amp Draw (amps)200
- Balance AC Pulse TIG50%~85% (120V) / 50%~85% (230V)
- Balance AC TIG50%~85% (120V) / 50%~85% (230V)
- Base Current AC Pulse TIG50% Peak Current (120V) / 50% Peak Current (230V)
- Base Current DC Pulse TIG50% Peak Current (120V) / 50% Peak Current (230V)
- Compliance TypeCSA UL
- Cooling SystemFan Cooled
- DC TIG Rated Current10A~95A (120V) / 10A~200A (230V)
- Duty Cycle40% (120V) / 20% (230V)
- Efficiency (percentage)0.8
- Enclosure ProtectionIP21S
- Frequency AC Pulse TIG50Hz~150Hz (120V) / 50Hz~150Hz (230V)
- Frequency AC TIG50Hz~150Hz (120V) / 50Hz~150Hz (230V)
- Gross Weight64.0
- Input Power120/230V Single Phase
- Insulation ClassF
- MMA Rated Current20A~65A (120V) / 20A~160A (230V)
- Model NumberBW-200T
- Net weight64.0
- No Load Voltage65V (120V) / 65V (230V)
- Peak Current AC Pulse TIG20A~95A (120V) / 20A~200A (230V)
- Peak Current DC Pulse TIG10A~95A (120V) / 10A~200A (230V)
- Power Factor0.8
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Pulse Frequency AC Pulse TIG0.2Hz~20Hz (120V) / 0.2Hz~20Hz (230V)
- Pulse Frequency DC TIG0.2Hz~200Hz (120V) / 0.2Hz~200Hz (230V)
- Rated Current AC TIG20A~95A (120V) / 20A~200A (230V)
- Rated Working Voltage22.6 (120V) / 26.4 (230V)
- TIG Arc WayHF (120V) / HF (220V)
- Warranty1 Year
