Product Details

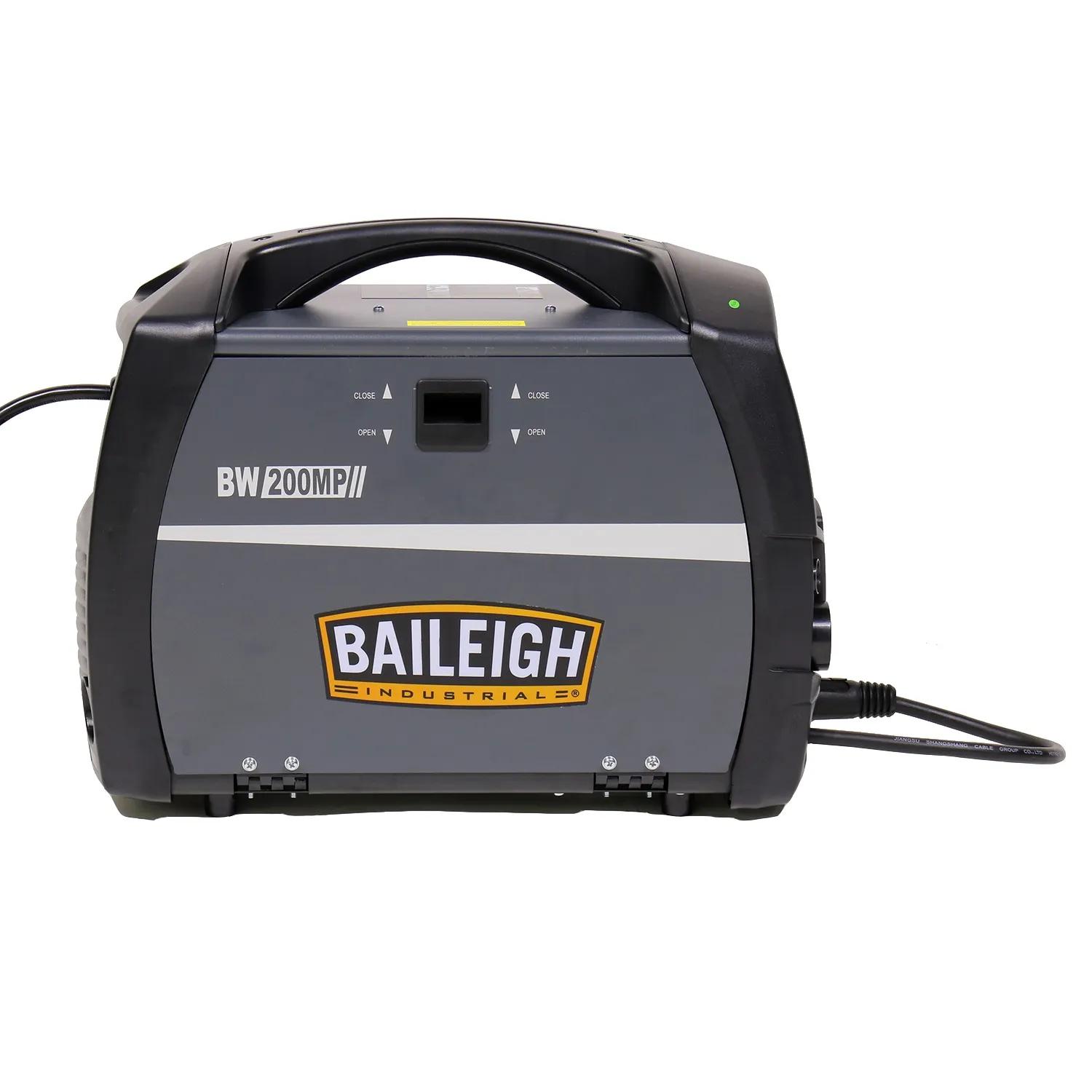

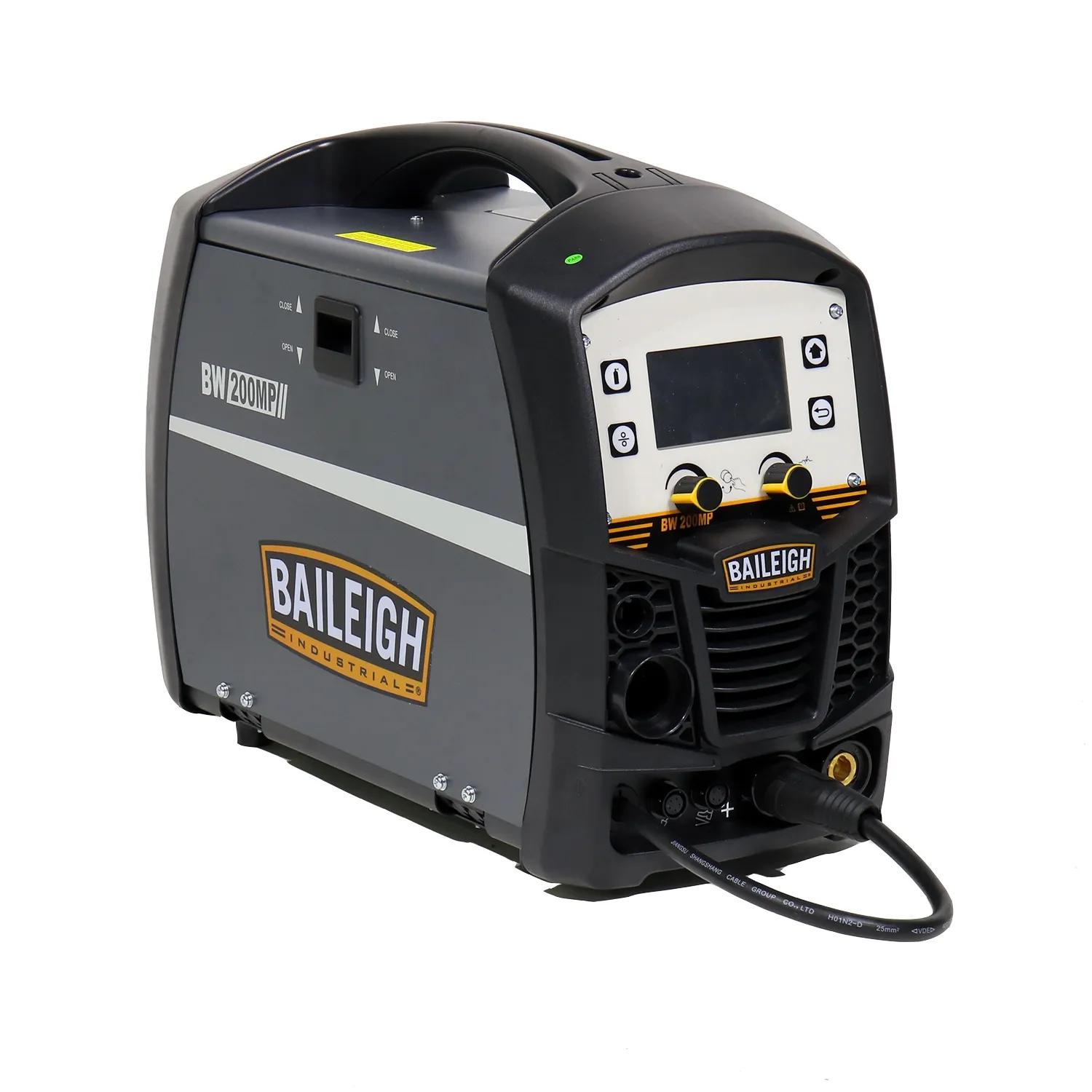

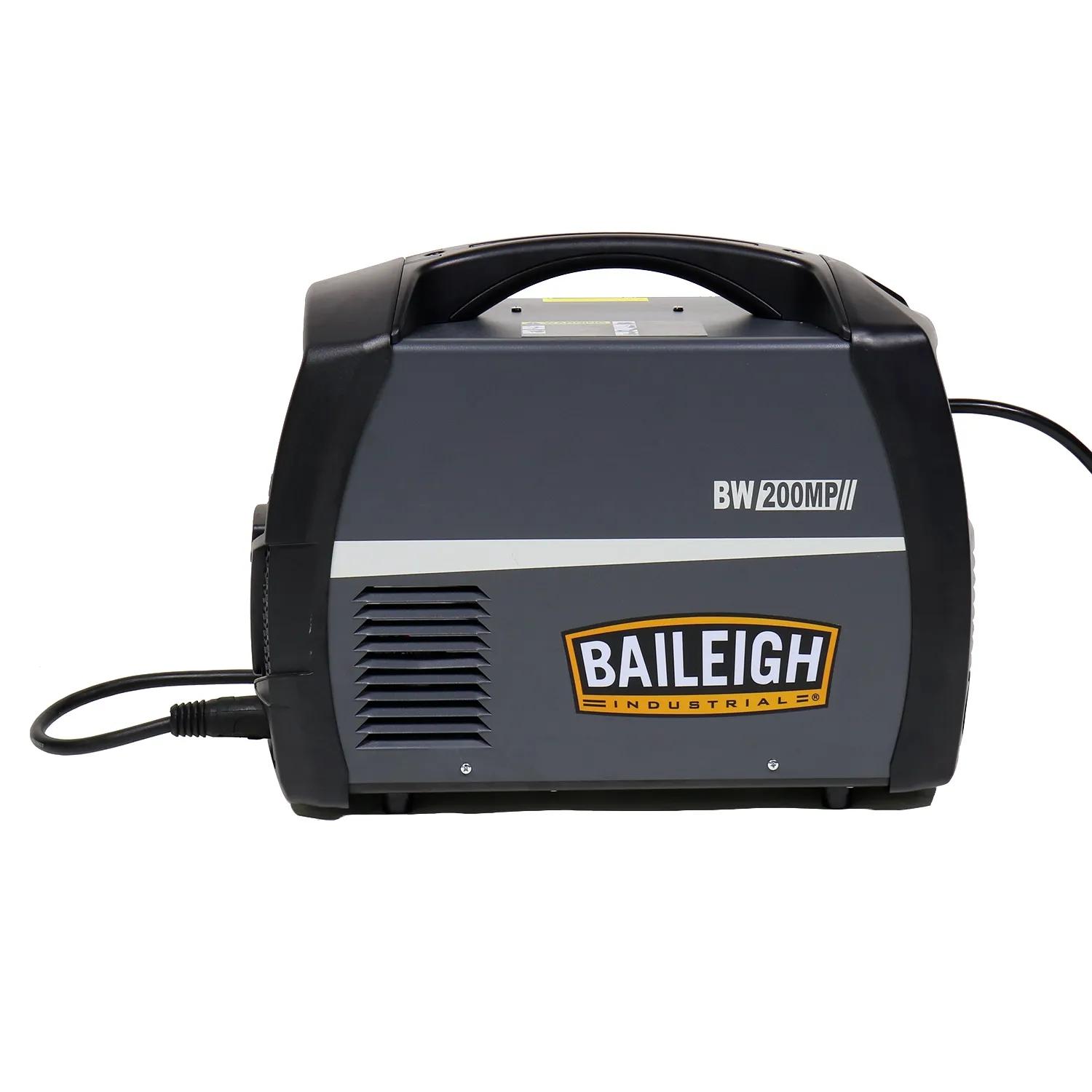

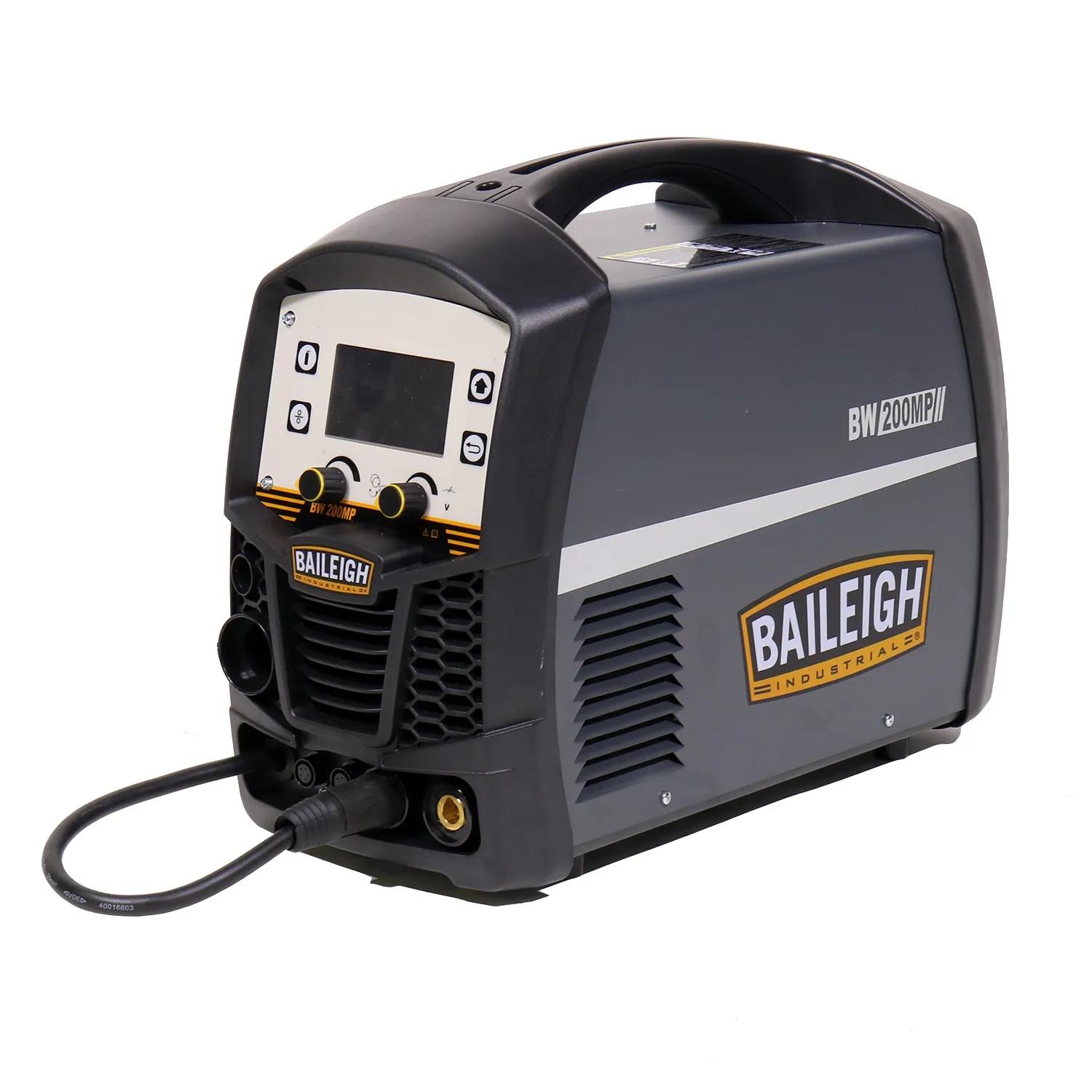

Industrial Construction: The Baileigh BW-200MP is a multi-process DC inverter welder engineered for rugged industrial welding applications. It combines MIG, TIG, and Stick welding functions into one unit with automated dual-voltage operation on 120/230 V single-phase power.
Advanced Controls: Featuring an intuitive LCD control screen with stored setup modes, the BW-200MP simplifies setup and operation for operators of all skill levels. Its IGBT inverter technology delivers consistent output while reducing input power requirements.
Versatile Welding Capability: This 200 A multi-process welder handles MIG and flux core welding from 40–140 A (120 V) and 40–200 A (230 V), and provides TIG and Stick welding up to 180 A for a wide range of metal fabrication tasks.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Model designation: The BW-200MP is a DC inverter-based multi-process welder designed for industrial welding versatility.
- Input power: Operates on 120/230 V single-phase power.
- Maximum output: Provides up to 200 A welding current.
- MIG welding range: 40–90 A (120 V) and 40–120 A (230 V) output for MIG welding.
- TIG/Stick output: TIG and Stick welding currents up to 180 A.
- Duty cycle: Rated 40% (120 V) and 20% (230 V) duty cycle.
- No-load voltage: 69 V no-load at both 120 V and 230 V.

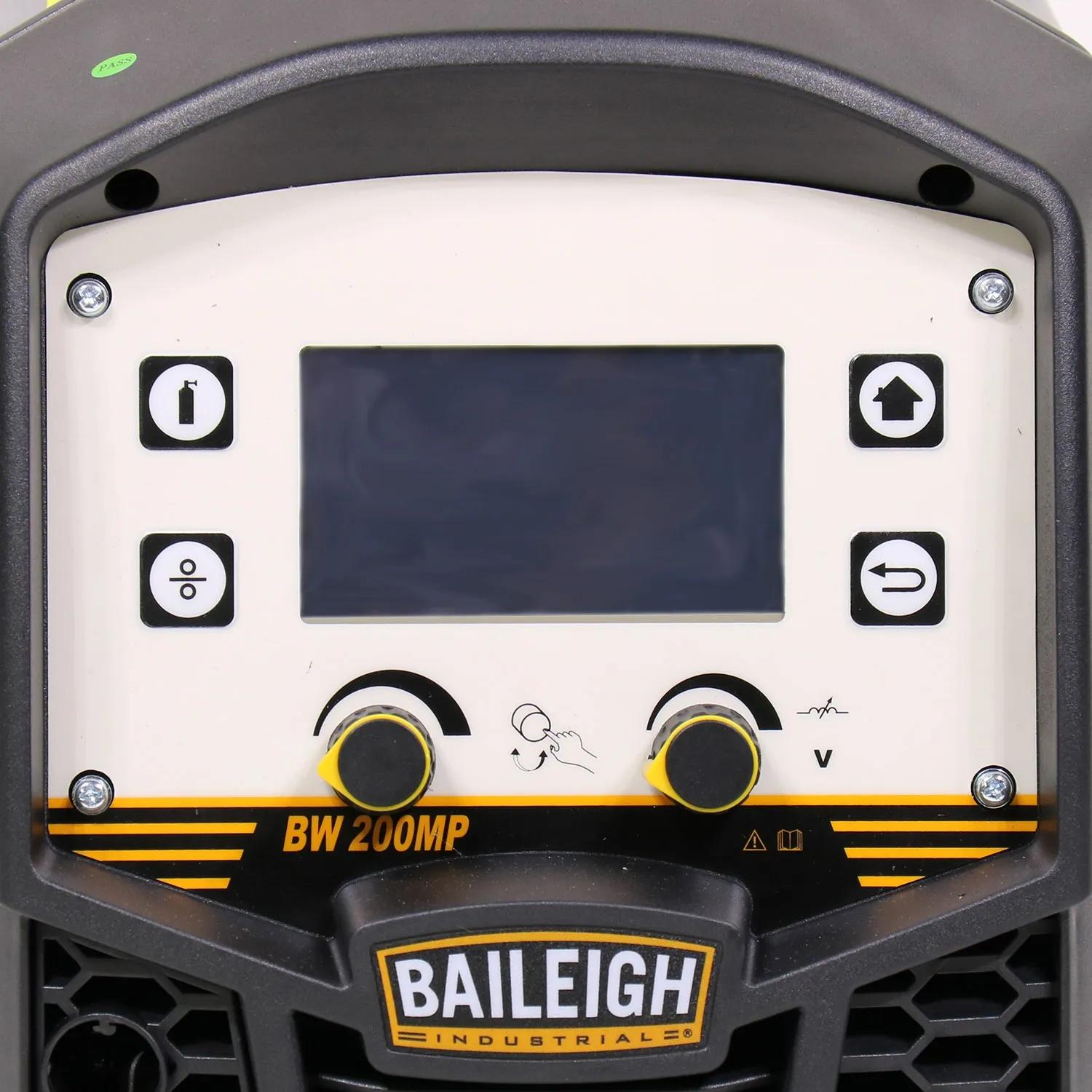

- Control interface: Equipped with an LCD control screen for setup and stored modes.
- Cooling system: Fan-cooled design for thermal management.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1021972
- Amp Draw (amps)200
- Compliance TypeCSA UL
- Cooling SystemFan Cooled
- Duty Cycle40% (120V) / 20% (230V)
- Efficiency (percentage)0.85
- Enclosure ProtectionIP21S
- Gross Weight71.0

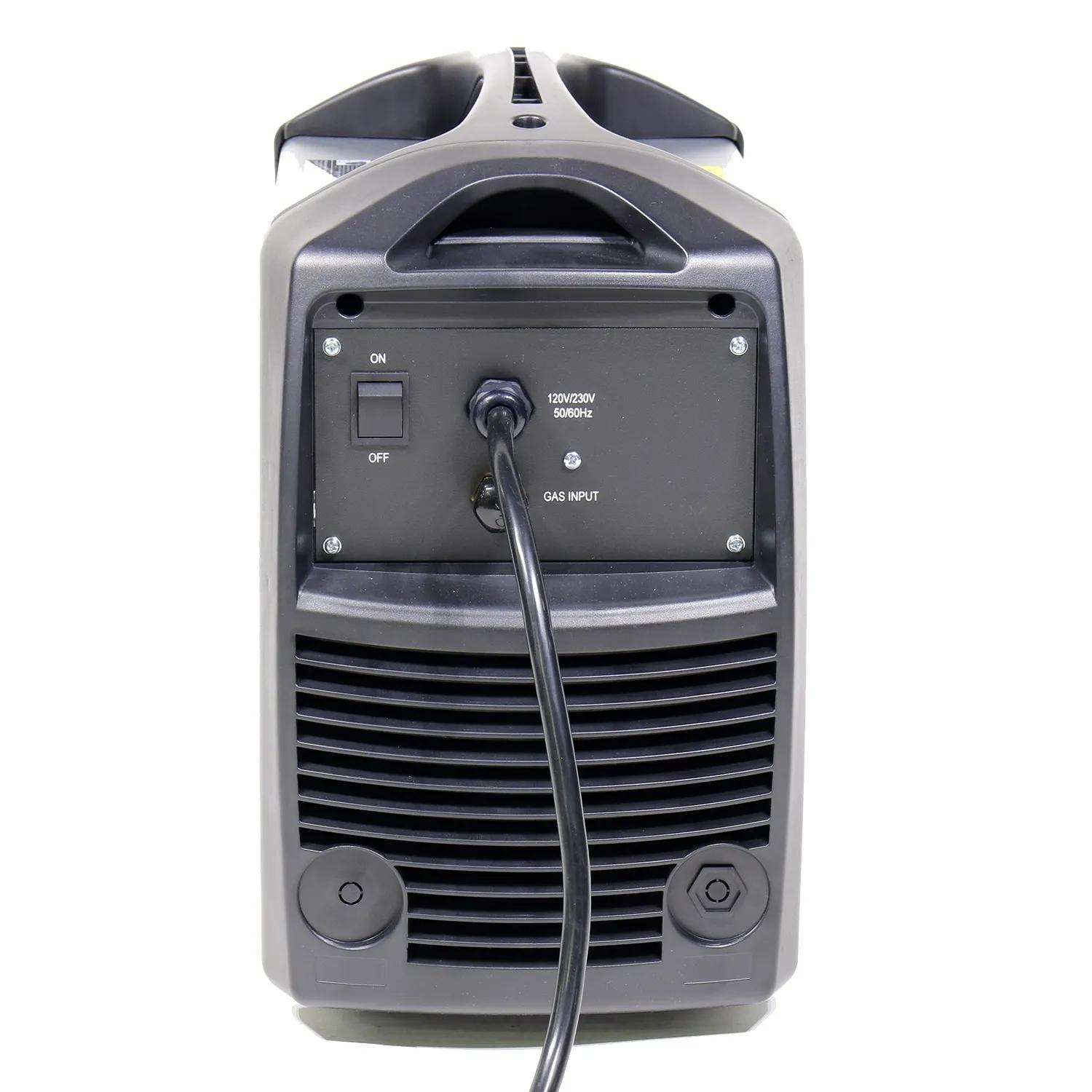

- Input Power120/230V Single Phase
- Insulation ClassF
- Lift Welding Current10A~70A (120V) / 10A~180A (230V)
- Mig Welding Current40A~90A (120V) / 40A~120A (230V)
- MMA Welding Current10A~70A (120V) / 10A~180A (230V)
- Model NumberBW-200MP
- Net weight71.0
- No Load Voltage69V (120V) / 69V (230V)
- Power Factor0.75
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rated Working Voltage18.5V (120V) / 24V (230V)
- Warranty1 Year
