Product Details

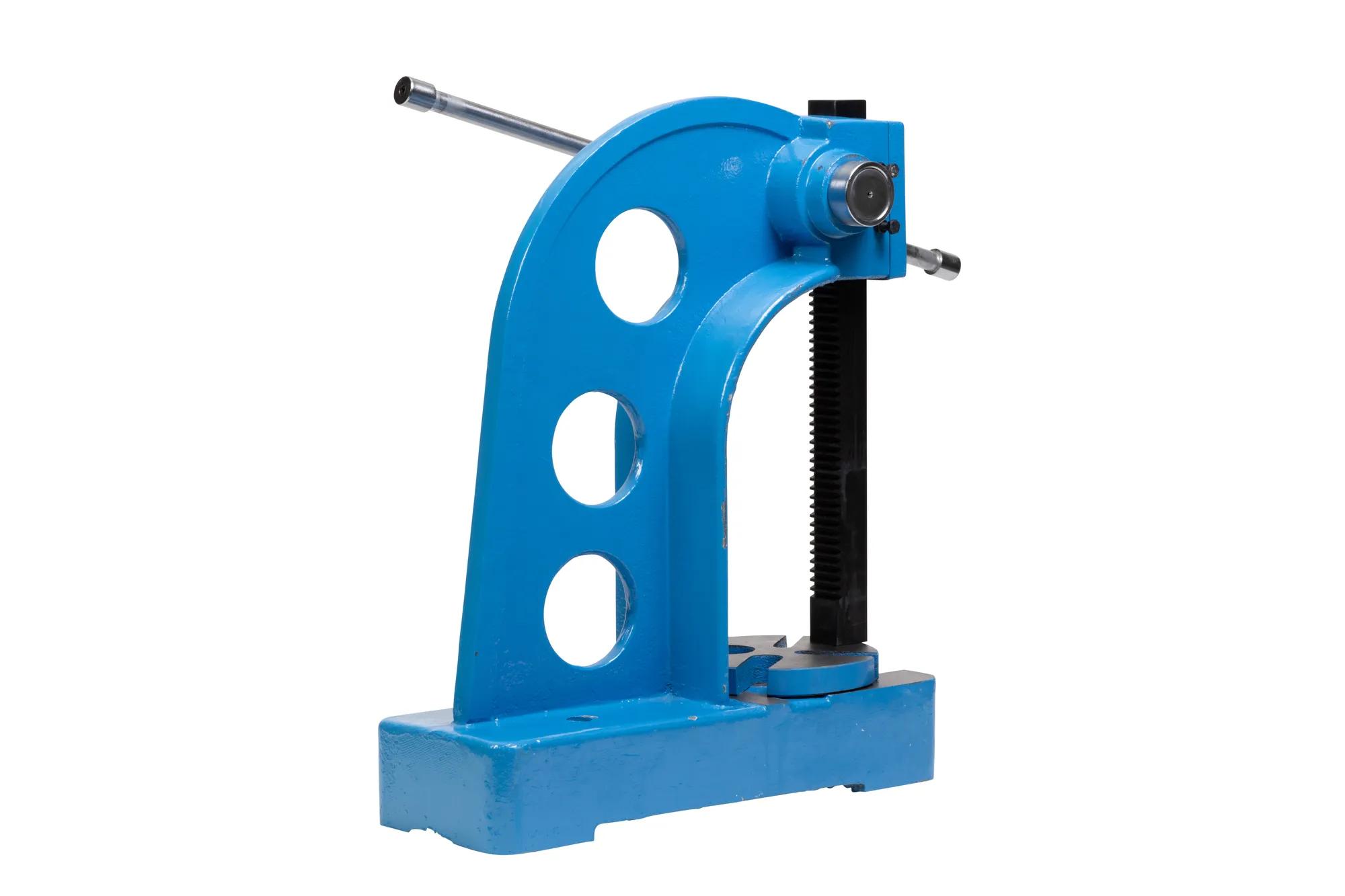

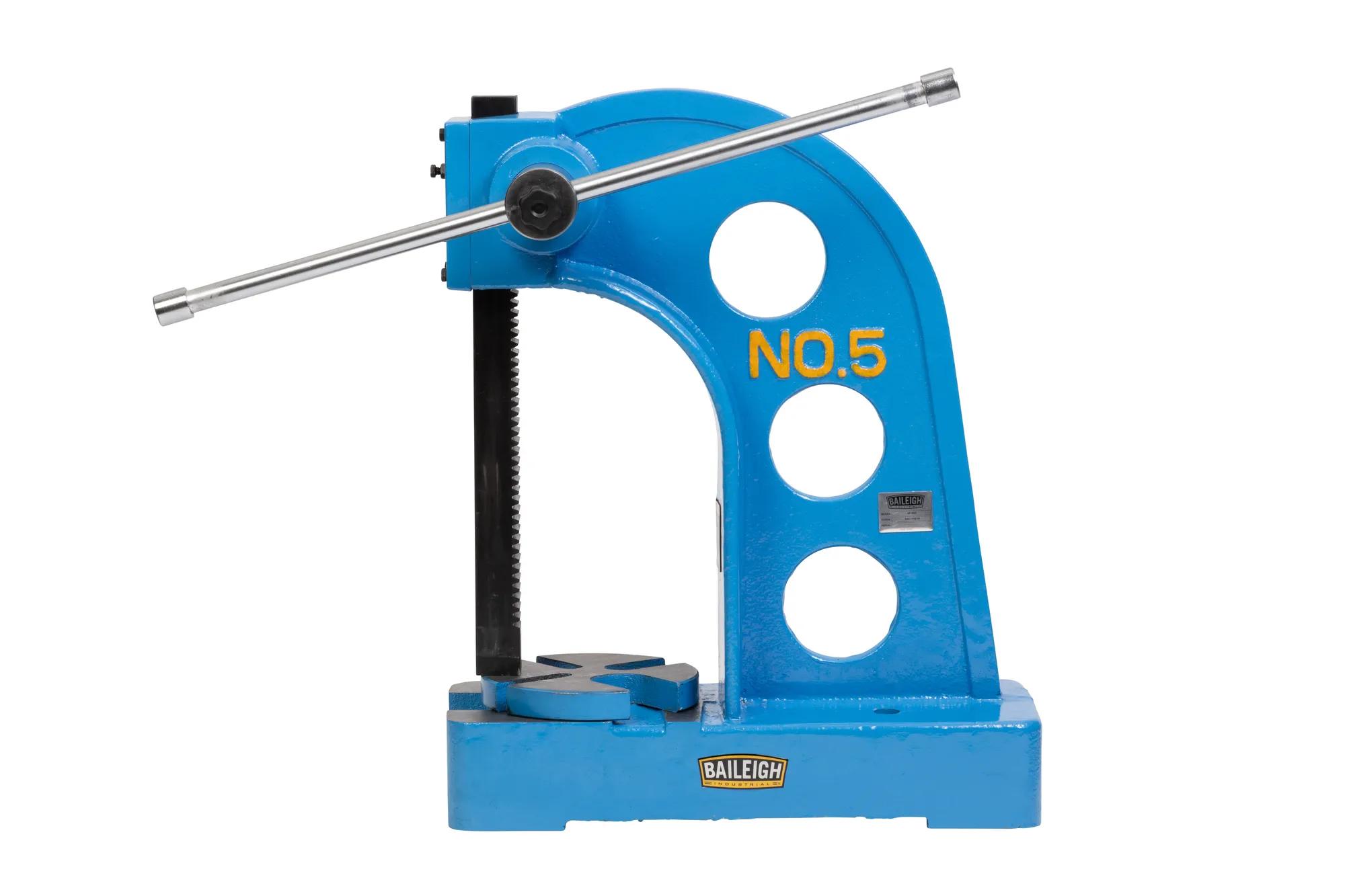

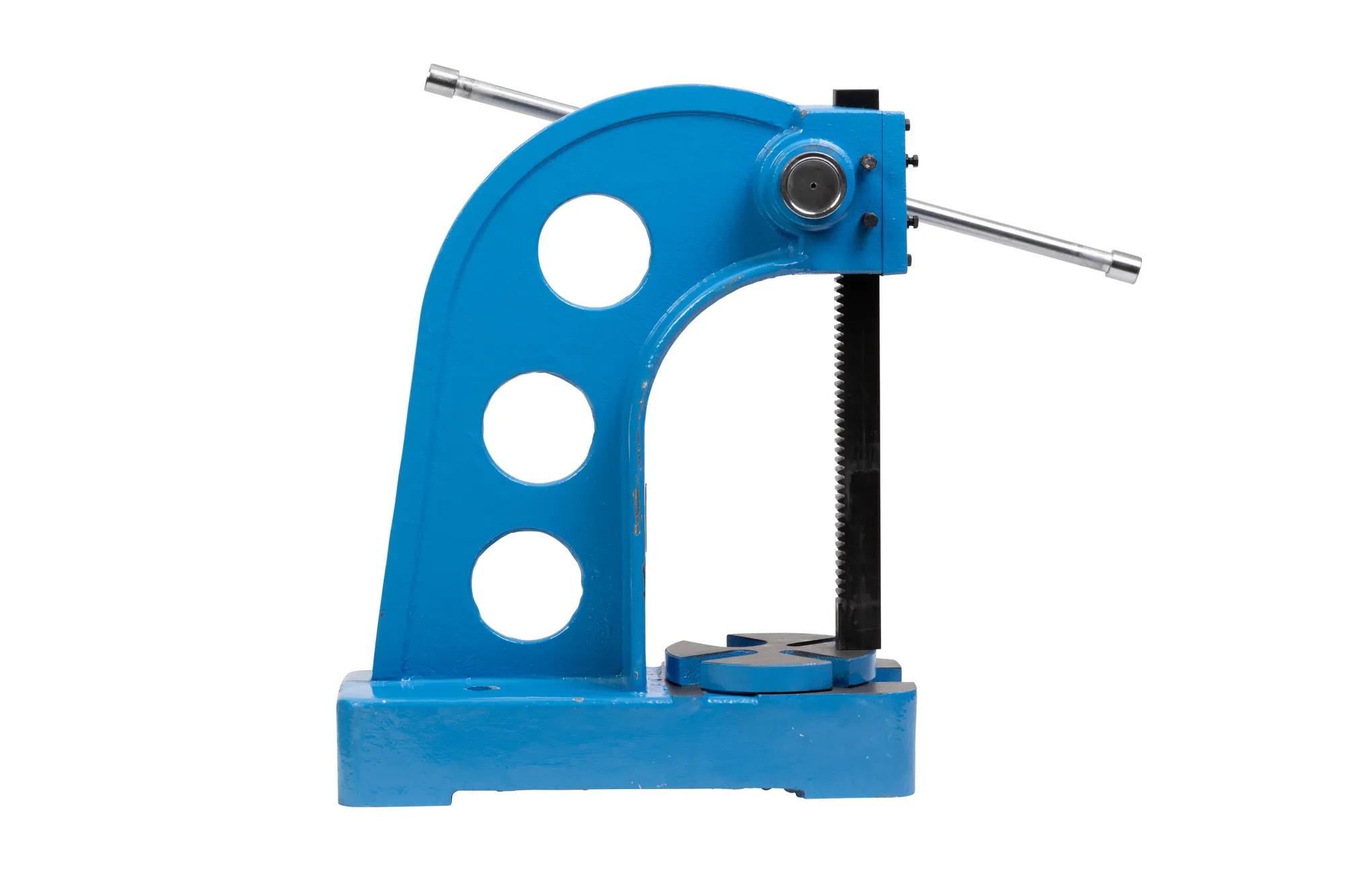

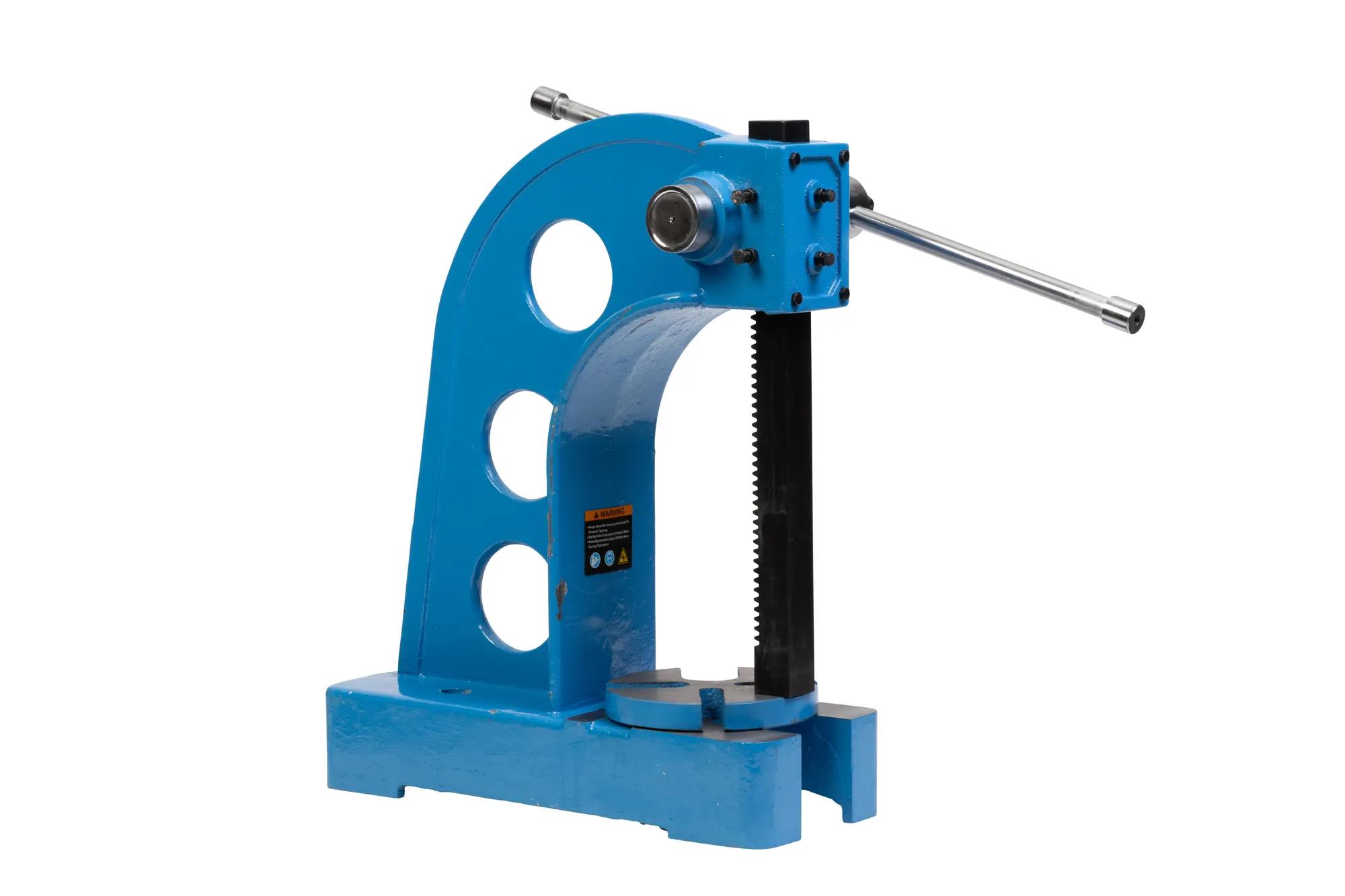

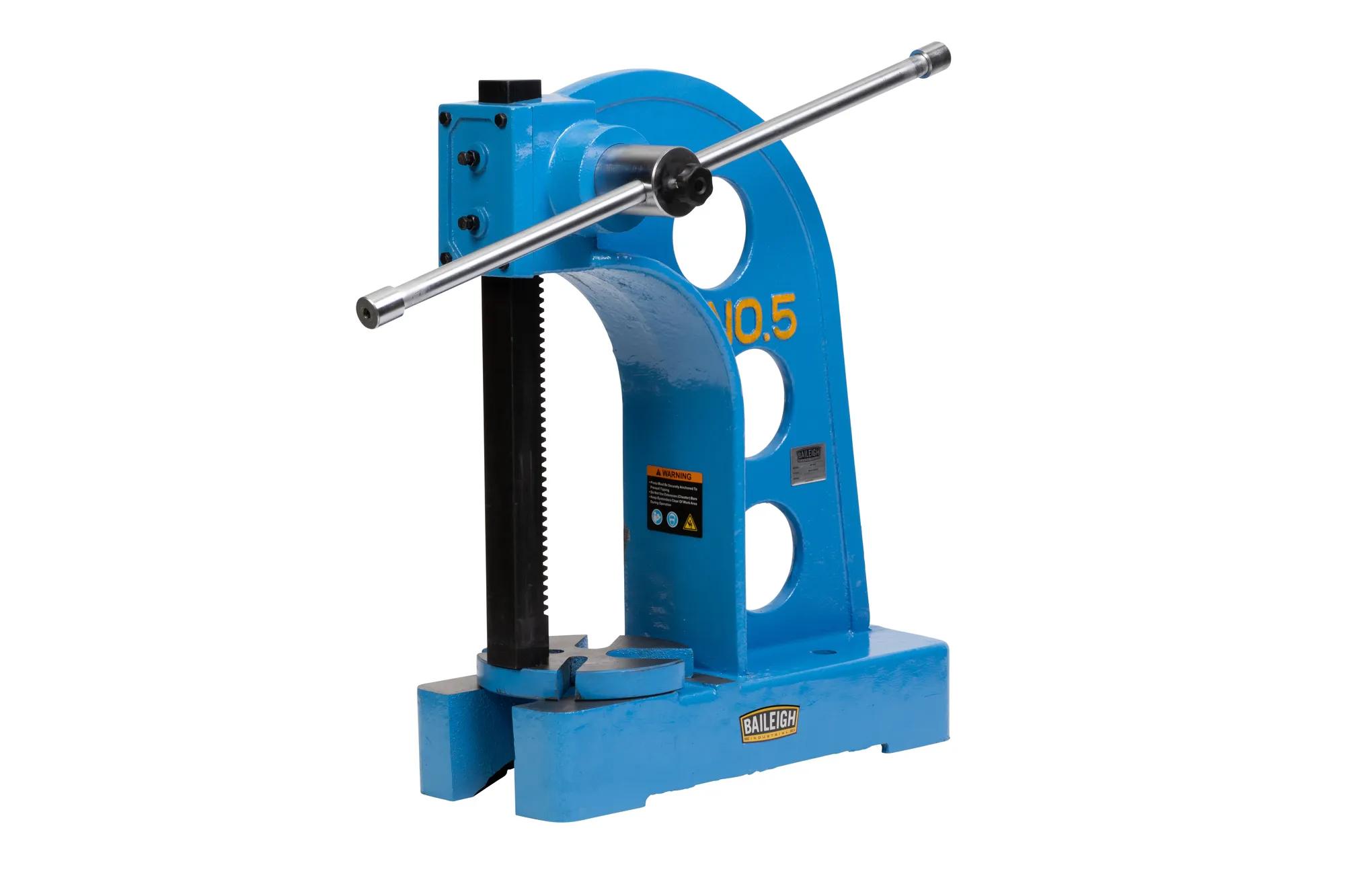

Industrial Construction: The AP-5HD Arbor Press is built with a rigid cast-iron frame engineered to resist flex and maintain alignment under load, ensuring reliable performance in high-use production and assembly environments.
Manual Power & Precision: This manually operated arbor press delivers 5 ton of pressing force through a solid, case-hardened 2″ square ram that executes precise presses for riveting, punching, bending, and swaging.
Capacity & Operation: With an 8.5″ throat opening, ability to handle material up to 18″ high, slideway adjustable tension and gap, and a machined 4-position die plate for securing workpieces, the AP-5HD is built for tough shop tasks and flexibility.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Manual capacity: Manual press with 5 ton rated force.
- Throat depth: 8.5″ throat opening for work access.
- Stroke length: 18″ stroke for deep pressing tasks.
- Material height: Handles material up to 18″ high over the table.
- Ram size: Solid, case-hardened 2″ square ram for precision pressing.
- Die plate: Machined 4-position die plate for securing workpieces.
- Slide adjustment: Slideway allows adjustment of tension and gap.
- Frame construction: Rigid cast-iron frame minimizes flex.
- Mounting options: Can be mounted on bench or pedestal for shop use.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1232701
- Capacity Over Table (In.)17
- Gross Weight350.0
- Input PowerManual
- Model NumberAP-5HD - 5 Ton Arbor Press
- Net weight350.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Size of Ram (In.)2 x 27-1/2
- Stroke Length18 in.
- Warranty1 Year
