Product Details
Hydraulic Angle & Section Roller: The Baileigh R-H55 Angle Roller is a hydraulic roll bending machine engineered for forming tube, pipe, angle iron, solid bar, flat bar, and structural profiles into large radii with precision and repeatability. Its compact footprint and user-friendly hydraulic adjustments make it well-suited for fabrication shops and mid-sized production environments requiring consistent results.
Industrial-Grade Design: Built on a fully welded steel frame with hardened precision rolls and lateral guide rollers, the R-H55 delivers accurate, repeatable bends. A 7 HP motor powered by 220 V 3-phase electricity drives three rolls, while a digital readout displays top roll position to ensure repeatability across multiple workpieces. Hydraulic top roll positioning and foot pedal control enhance efficiency and operator control.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Input Power: 220 V 3-phase, 7 HP motor
- Driven Rolls: 3 rolls with hydraulic top roll movement
- Maximum Round Tube Capacity: 4″ OD with .083″ wall
- Maximum Pipe Capacity: 2.5″ schedule 40
- Operating Positions: Functions in vertical or horizontal orientation

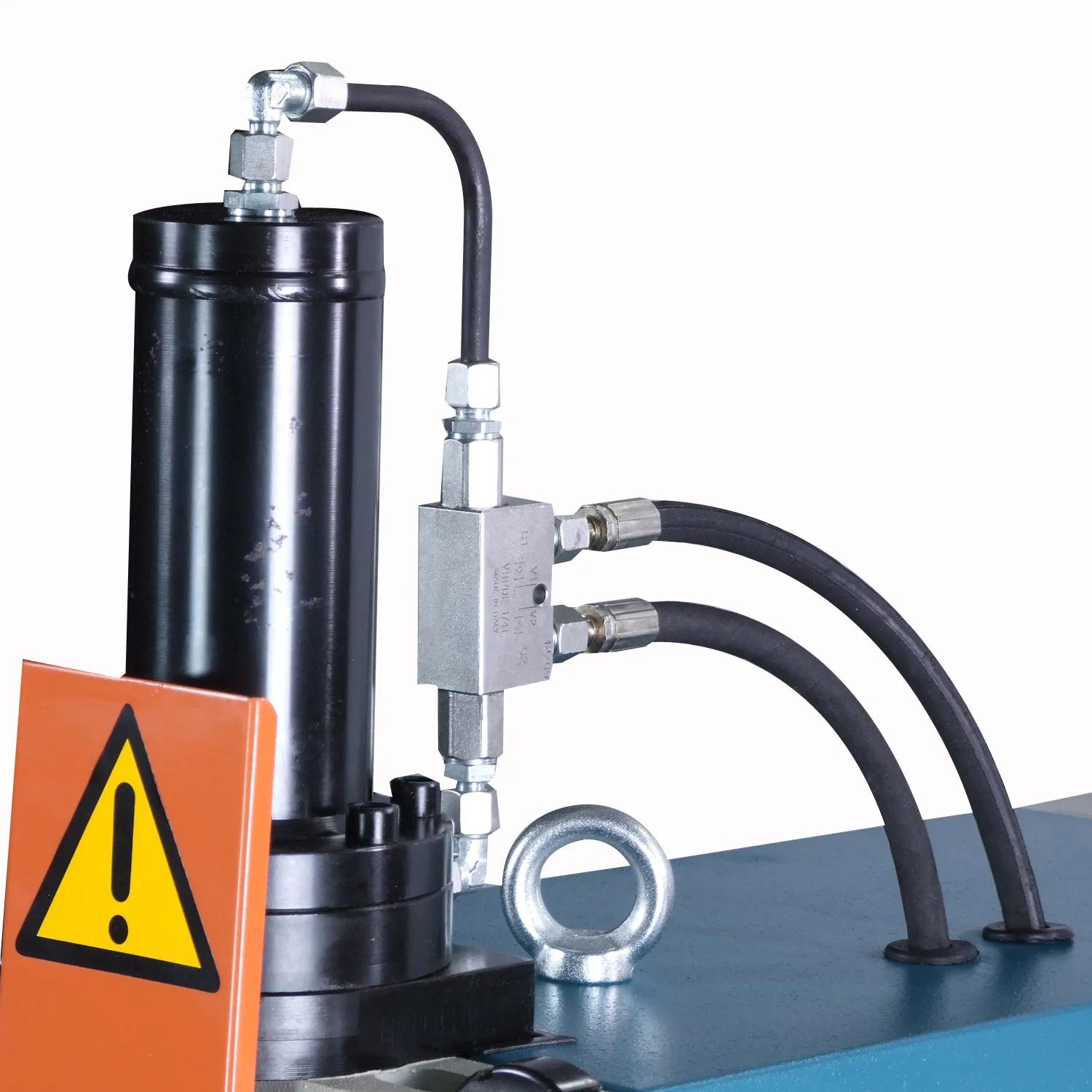

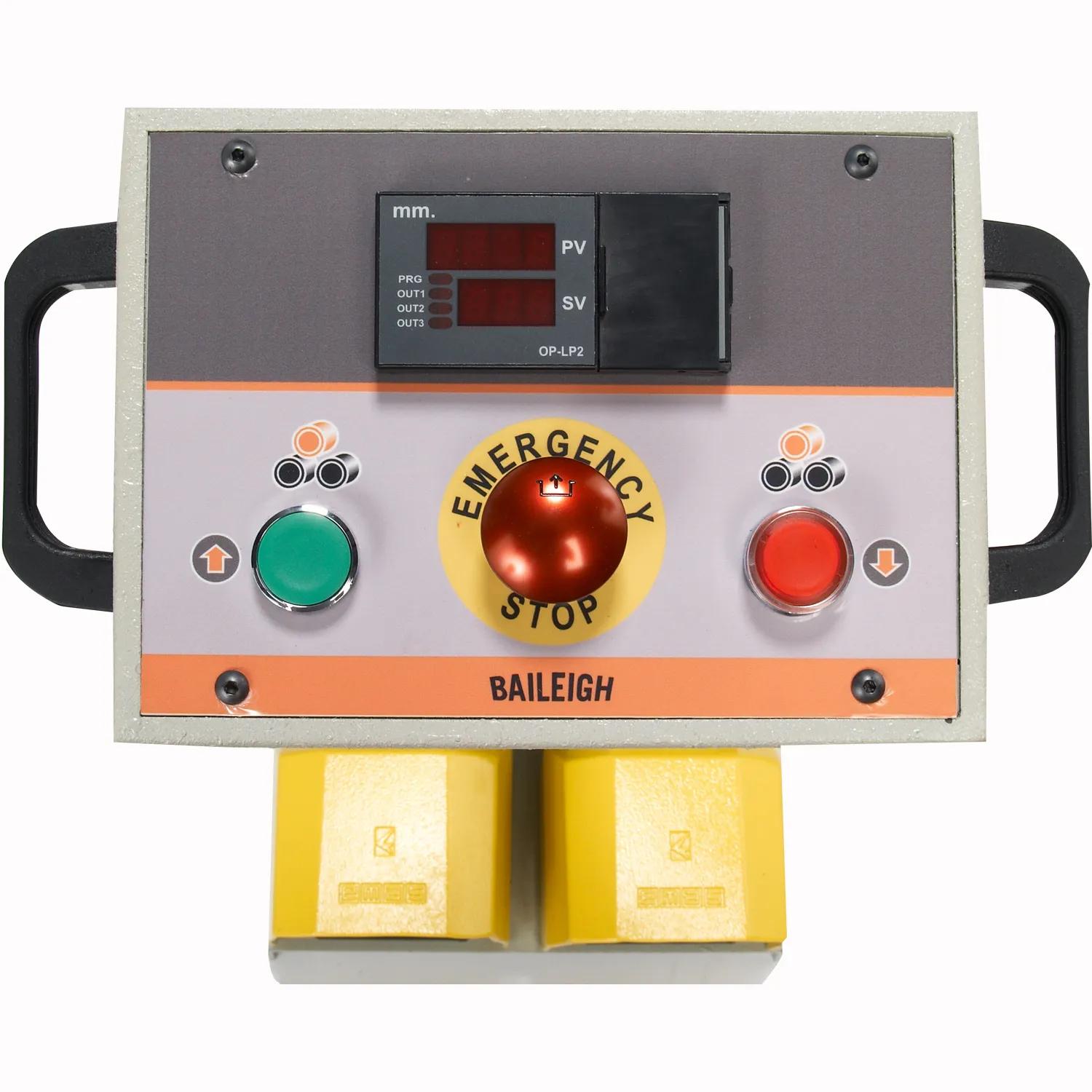

- Hydraulic Adjustment: Top roll movement with digital position readout

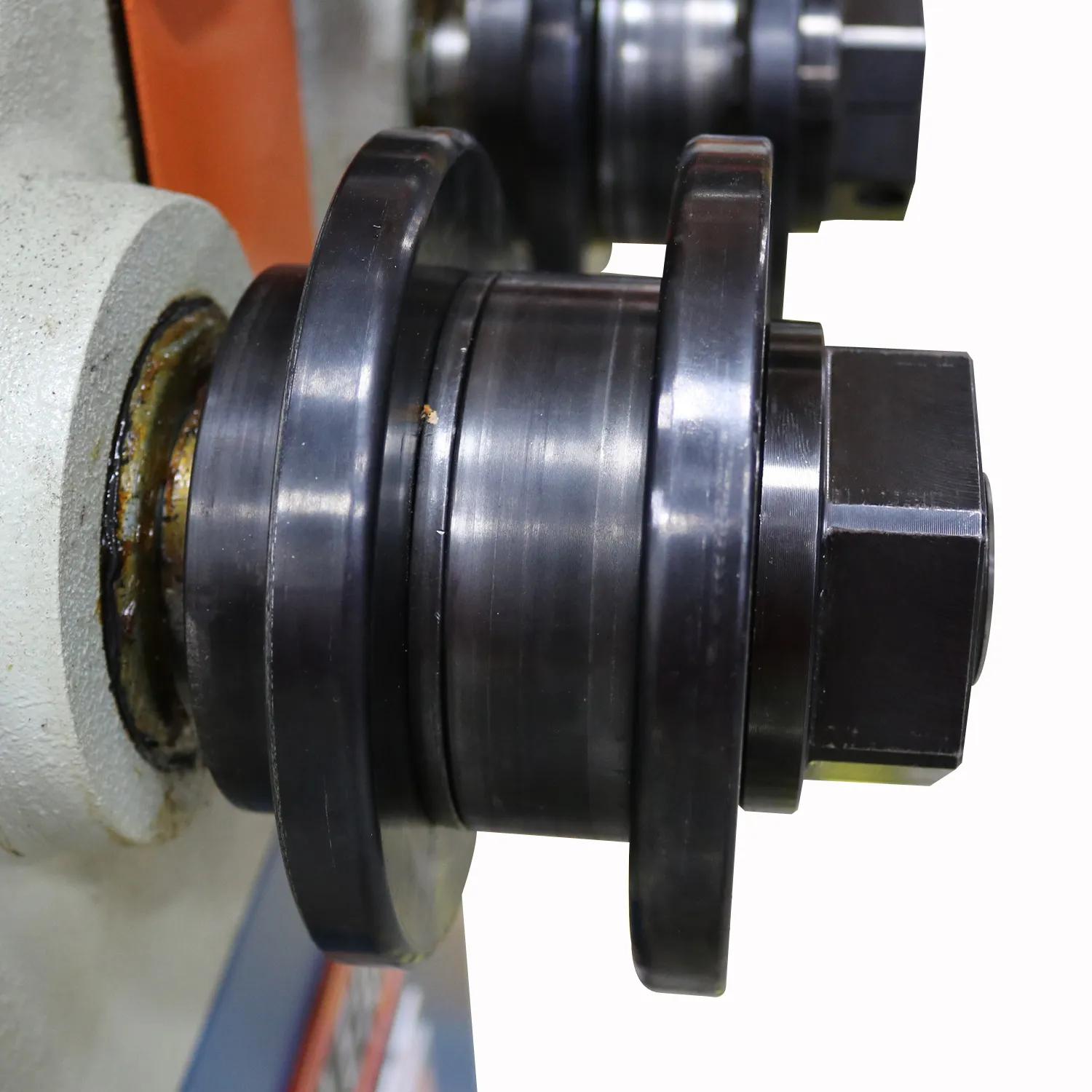

- Construction: Heavy fully welded steel frame with hardened rolls

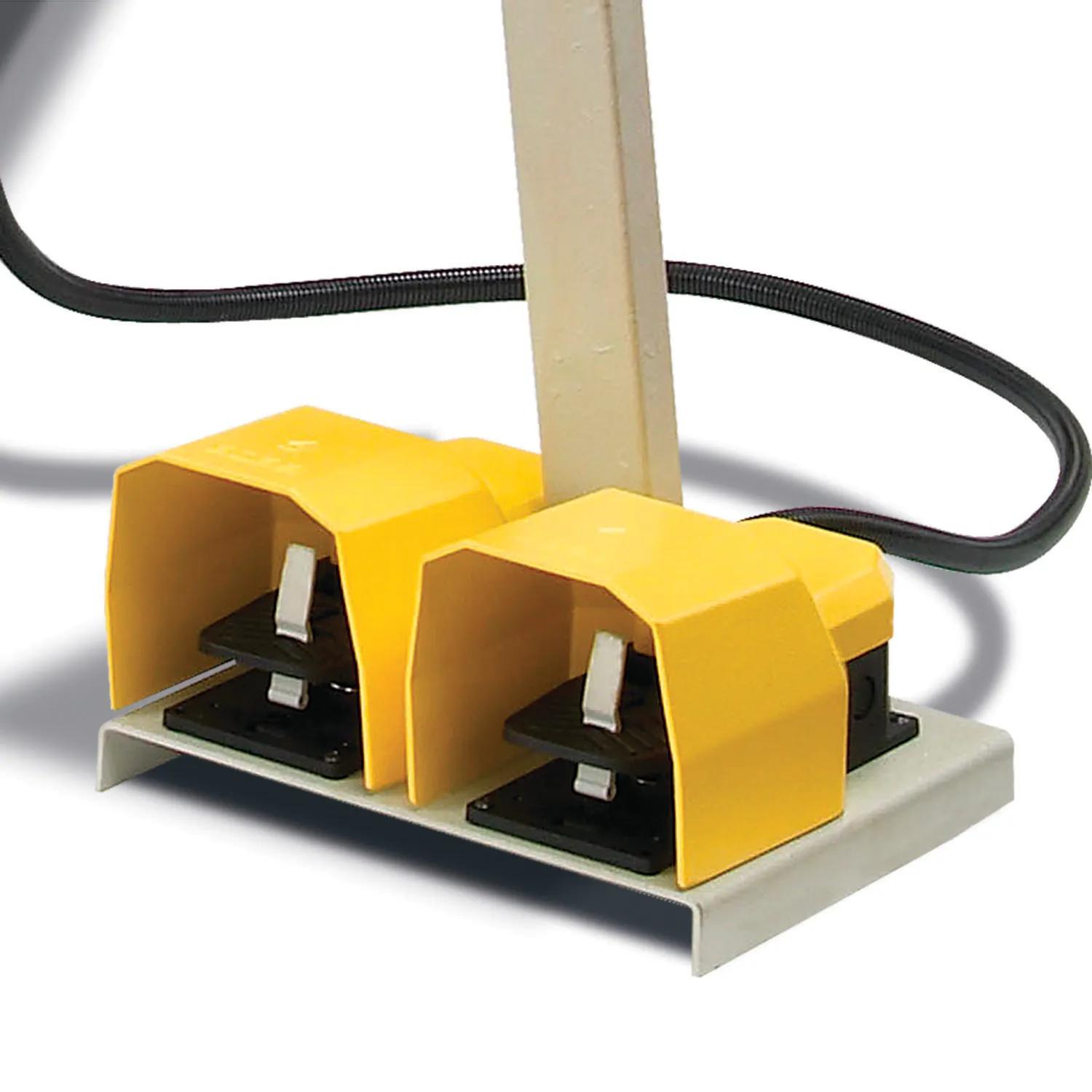

- Controls: Foot pedal operation for hands-free control

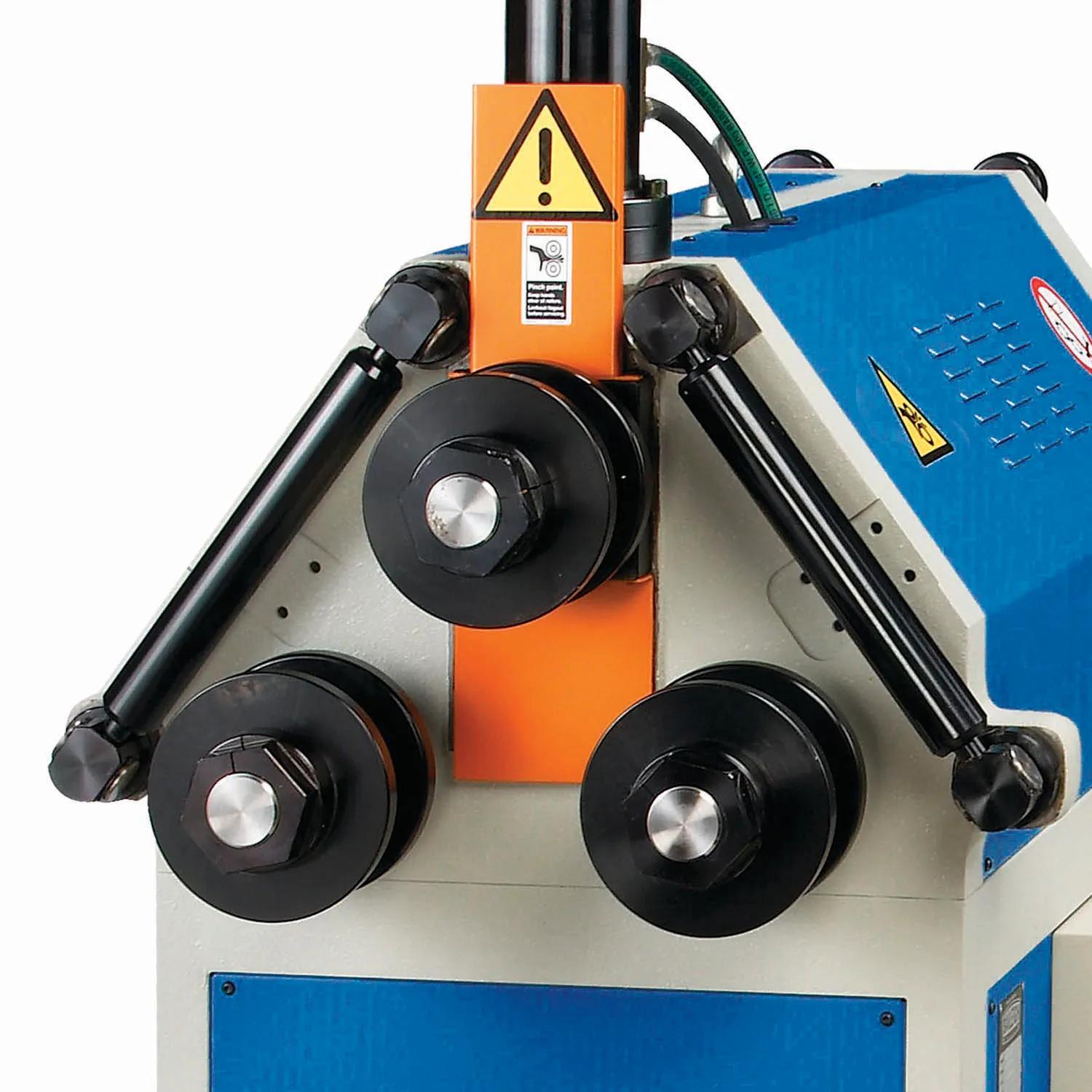

- Lateral Guides: Integrated lateral roll guides for material stability
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1006836
- Bend Capacity3 in. OD
- Gross Weight1320.0
- Horse Power (HP)7
- Input Power220V Single Phase
- Model NumberR-H55
- Motor HP5
- Motor PhaseThree
- Net weight1320.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Warranty1 Year
