Manual Cold Saw Cs355M

Product image is only a representation, actual product appearance may differ slightly

  • Manual Cold Saw Cs355M

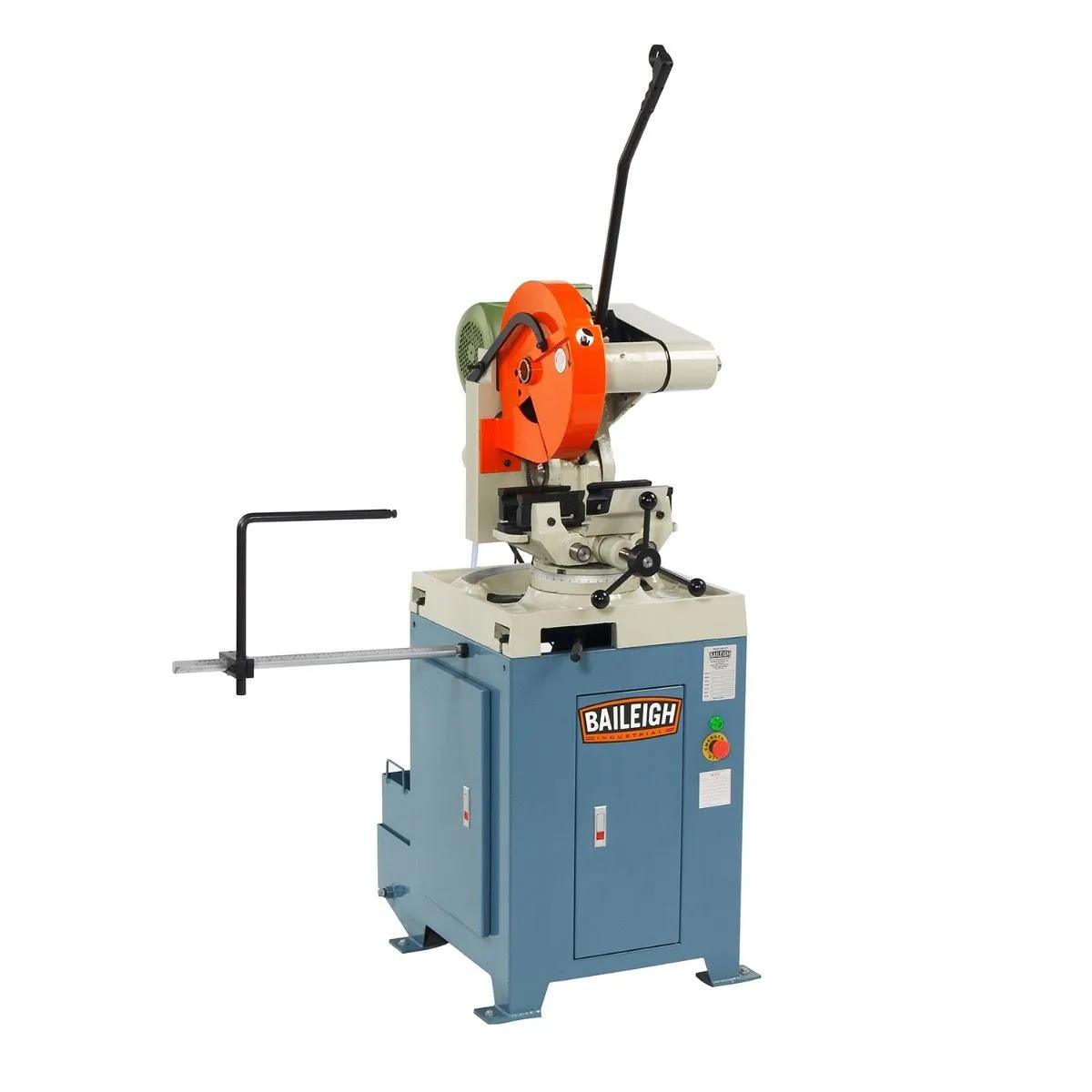

Manual Cold Saw CS-355M

SALE!

SKU: BA9-1002589

In stock

$9,549.00 $
Leasing starts at $155 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description



Need to cut a lot of aluminum or copper? The CS-355M high-speed manual cold saw for aluminum turns at 3,200 rpm. It is perfect for making pristine cuts in soft metals without gumming up the blades.



  • Accepts up to 14” blade.
  • Maximum capacity of 4.25” round tube at 90°.
  • Miters 45° right and 90° left, excellent for slotting applications.
  • 5.5 hp motor drives a belt pulley system to achieve maximum RPMs as efficiently as possible.
  • Runs on 220-volt 3-phase power.
  • We based the design on our CS-350M cold saw, known for its reliability over many years of cutting.

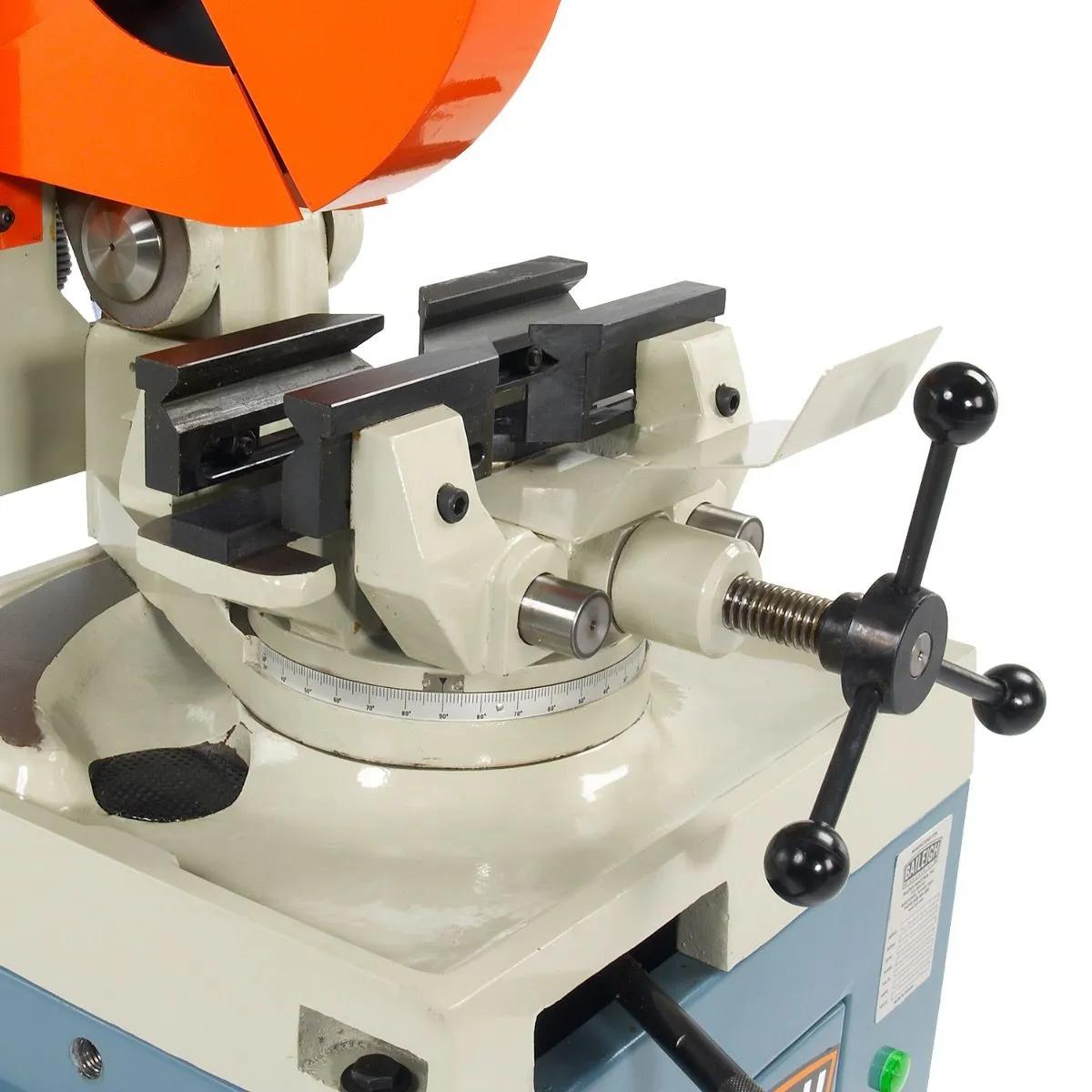

  • Self-centering American-style vise saves you the trouble of making changes to fit different diameters of tube or pipe.
  • Floating vise clamp independently holds the jaws (on the left and right of saw blade).
  • Vise extends blade life by securely holding both sides of the cut material without dropping them into the rotating blade.

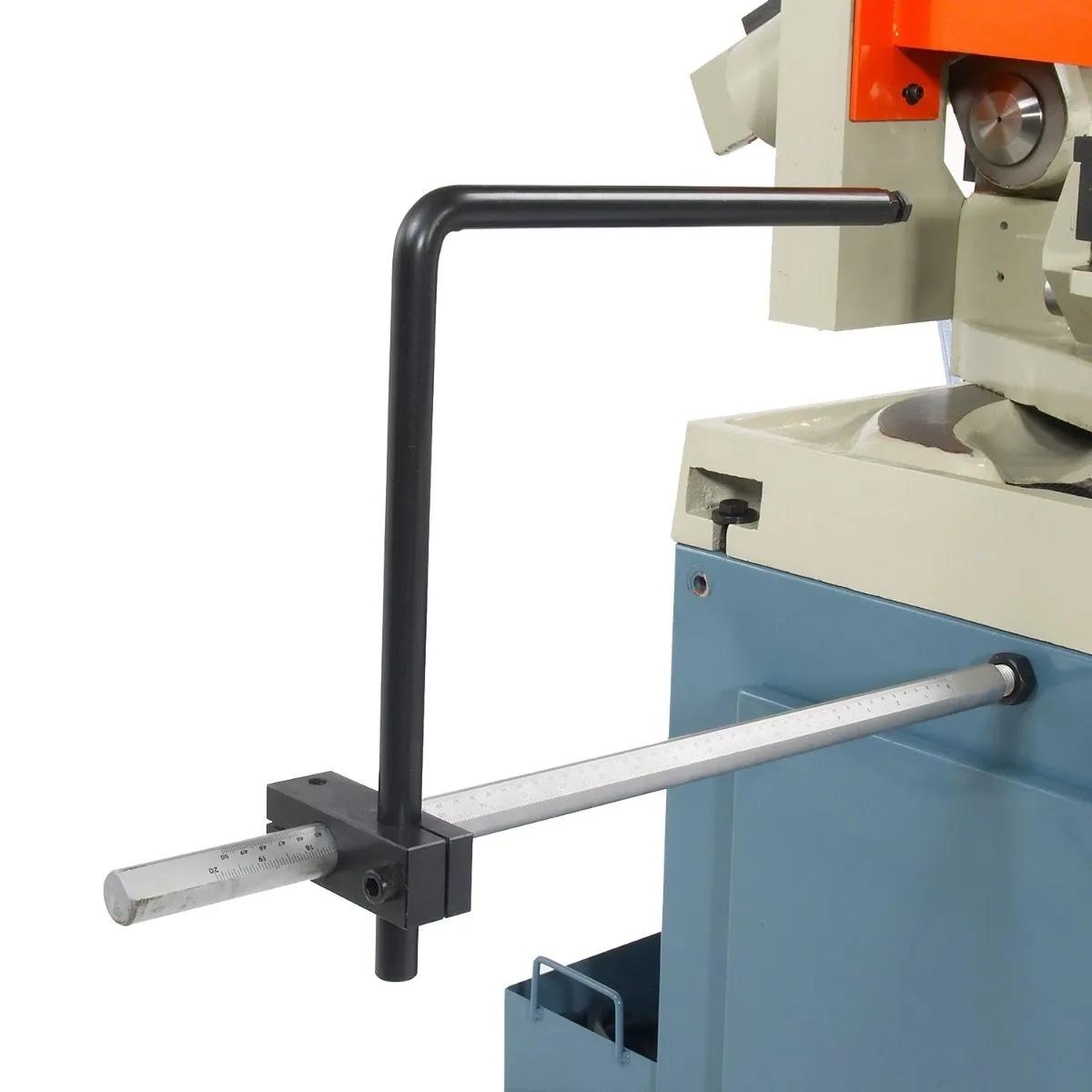

  • Stop rod allows you to easily set up repeatable lengths for production runs.

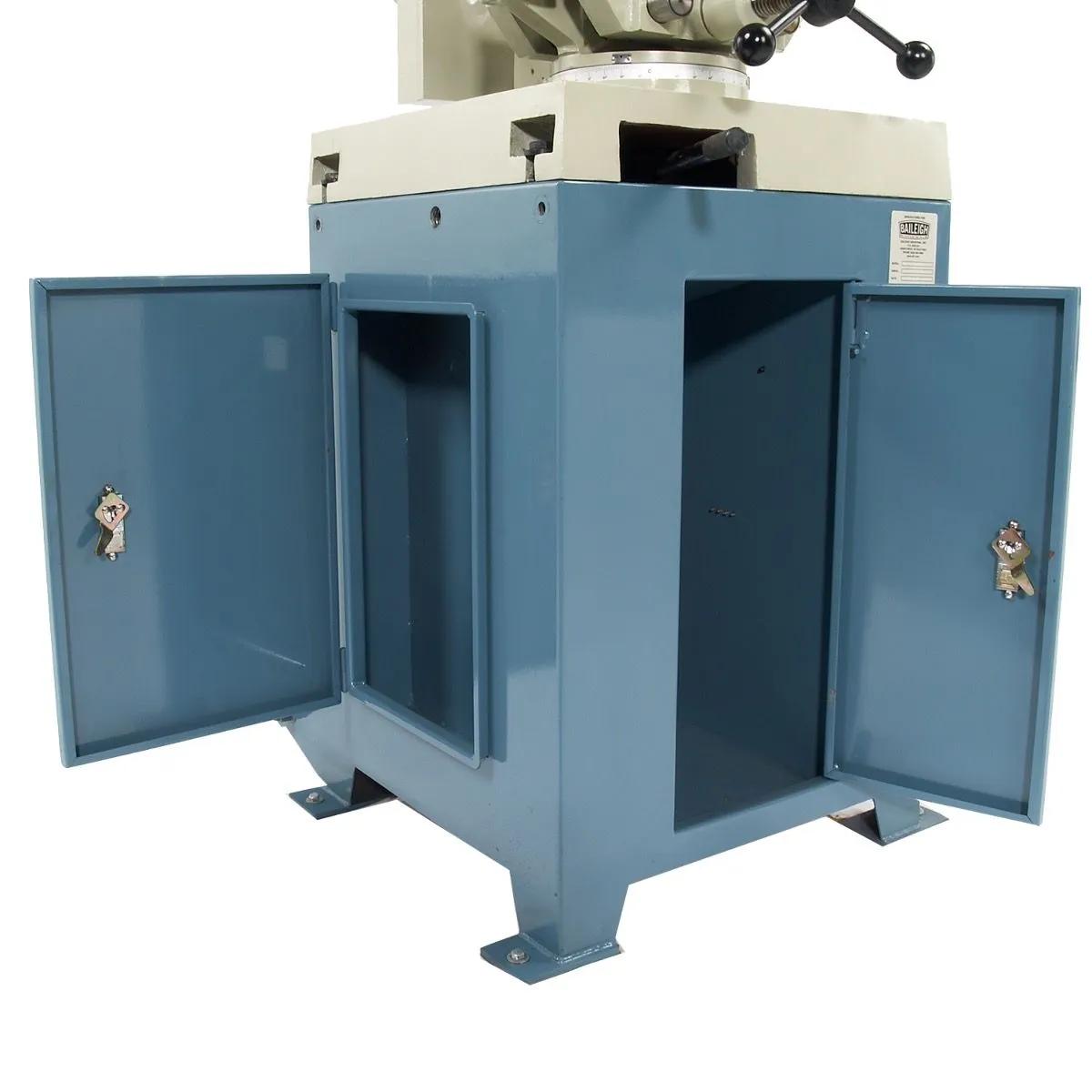

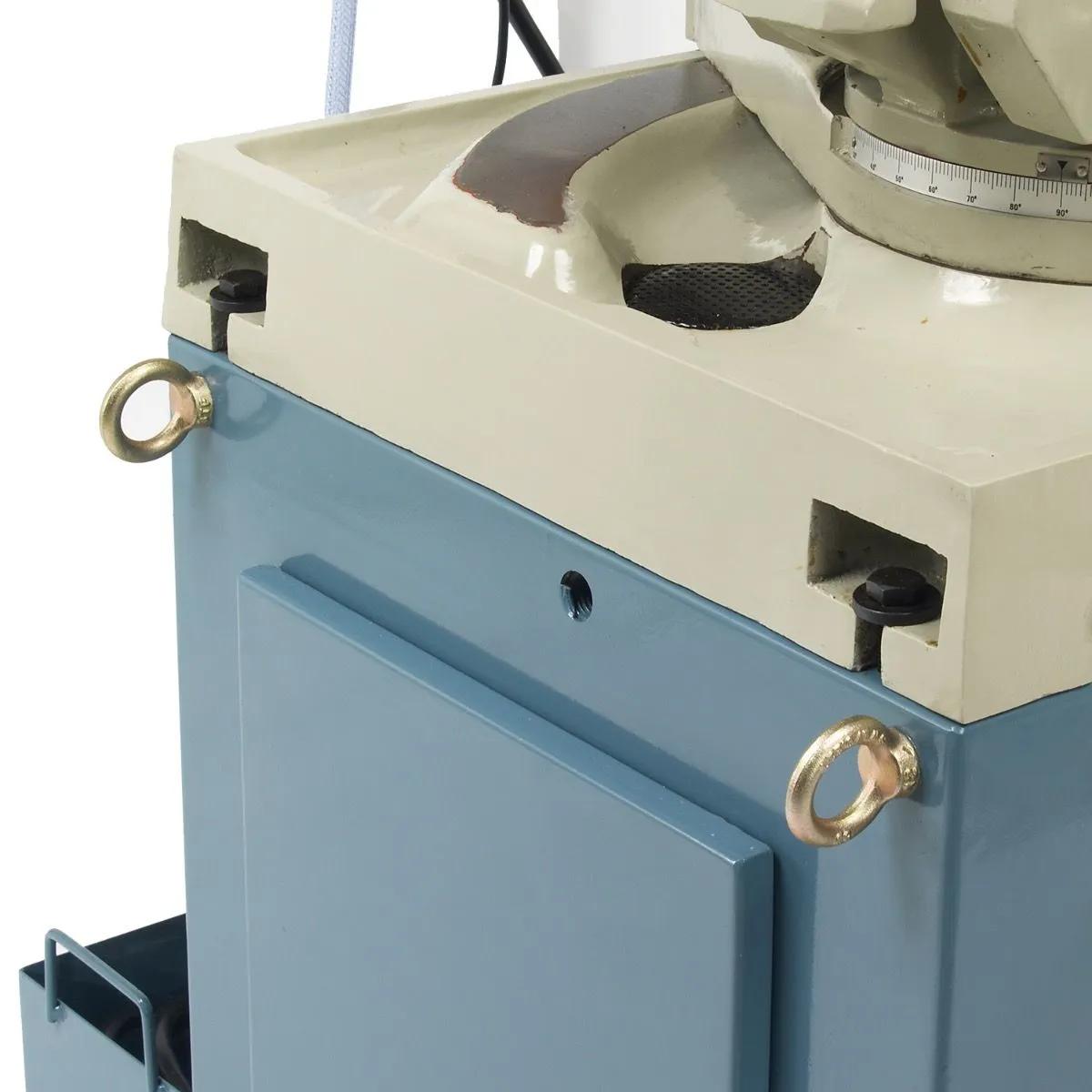

  • Heavy cast iron base keeps the machine stable so that the blade will cut accurately throughout the saw’s lifetime of use.

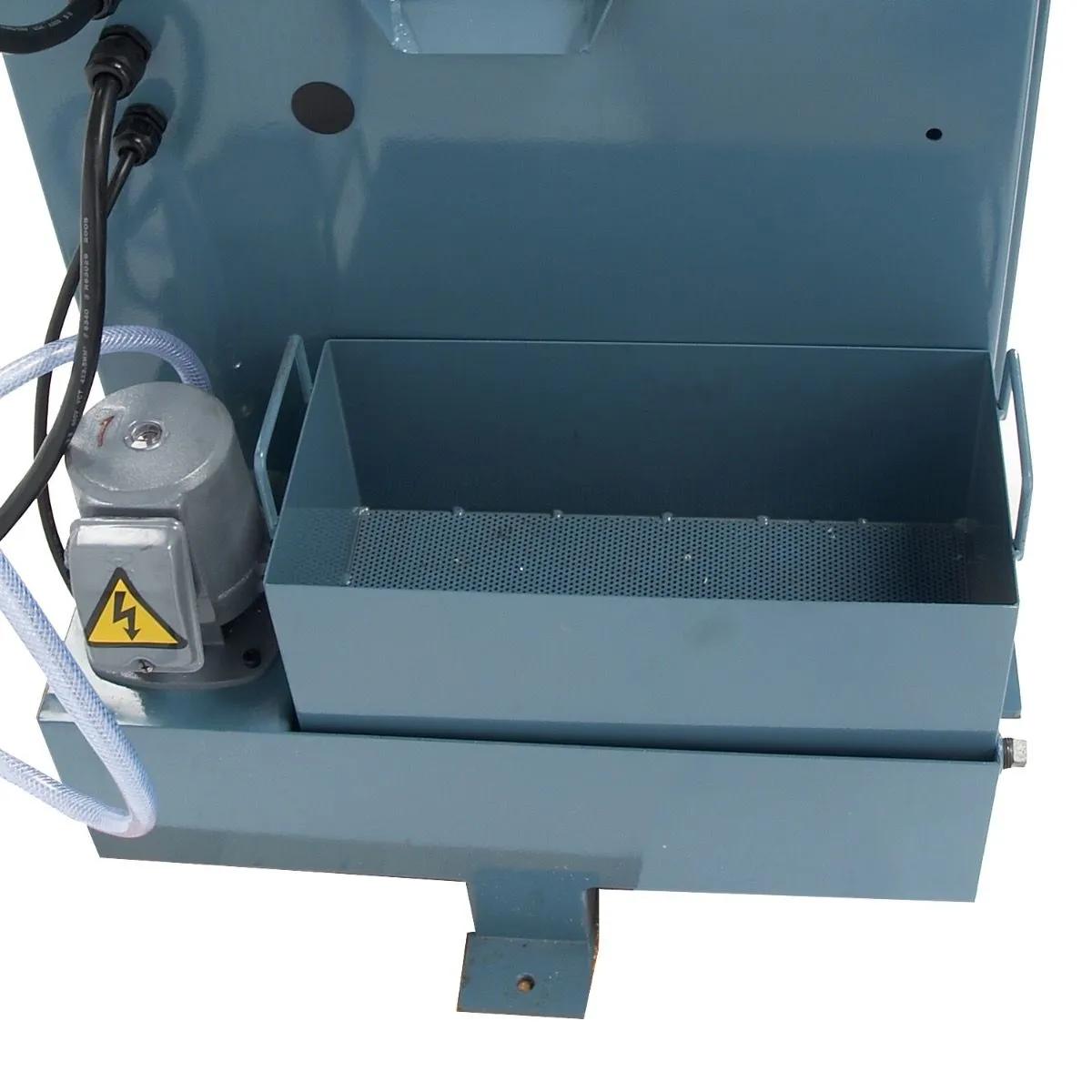

  • Flood coolant system maintains high cut quality and helps blades last longer.
  • Replacement parts are in stock, so you can get them quickly.
  • Baileigh covers this manual cold saw with a 1-year parts warranty.
  • Comes with lifetime technical support by phone. Call up our team of service reps—all with hands-on machine experience—whenever you have a problem.



Recommended for: Non-ferrous applications



Questions? Not sure if this cold saw for aluminum is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.

Specifications

Item Number CS-355M
Max. Blade Diameter 14"
Operation Manual
Head Miter 45° Left / 45° Right
Round Solid at 45° 1.575"
Square Tube at 45° 2.953" x 2.953"
Round Tube at 45° 2.953"
Rectangle Tube at 45° 2.953" x 2.362"
Round Solid at 90° 2.362"
Rectangle Tube at 90° 4.25" x 3.5"
Square Tube at 90° 4.25" x 4.25"
Round Tube at 90° 4.331"
Coolant System Yes
Slotting Capable Yes, Left and Right
Vice Style Dual Action, Self Centering
Max. Vice Opening 6.5"
Head Style Pivot
Arbor Size 1"
Motor 5.5 hp
Included Accesories Included Accesories
Blade Speed 3200 (rpm)
Power 220V / 3-phase
Shipping Weight 850lbs
Shipping Dimensions (Inches) 60x44x77

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Q & A

Which is right for me: a cold saw or a band saw?

That choice depends on 3 main factors: cut quality, material size, and production speed.

Need to make the highest quality cuts with clean, mirror-like edges? Then you probably need a cold saw.

However, band saws can usually cut larger pieces of material than cold saws in the same price range. Band saws also cut more quickly than cold saws.


What’s the difference between a European-style vise and an American-style one?

European-style vises are faster for production, because they let you clamp and unclamp the material more quickly. The operator can get a better view of the cut with a European-style vise, as well.

American-style vises are self-centering. The vise keeps the material in the correct position, centered in relation to the descending blade.


How long do cold saw blades last?

A blade usually lasts 3 weeks to a month if you’re using it for an 8-hour shift with a correct setup.
