Sheet Metal Notchers
You can count on a Baileigh sheet metal notcher to make crisp corners, ready for welding. With their durable steel or cast iron construction and adjustable guides, these machines will give you years of clean, repeatable results.
Each sheet metal corner notcher:
- Comes covered by a 1-year parts warranty.
- Includes lifetime phone support by phone from reps with years of hands-on experience.
- Accepts replacement parts that we typically keep in stock for fast shipping.
Manual notchers are budget-friendly, compact machines for making precise corners.
- 16 gauge sheet metal maximum capacity.
- 90° fixed-angle cutting.
- Small footprints save worktop and floor space.
- Sturdy floor stands detach, making the notchers portable.
Pneumatic and hydraulic sheet metal notchers can cut those perfect corners in metal that would be impossible with hand tools.
- Capacities range from 11 to 4 gauge.
- Blade sizes range from 5” to 8.5”. Resharpen them many times to cut costs.
- Patented blade gap adjustment on hydraulic models.
- Both 90° fixed-angle and variable-angle models are available.
- Foot pedal controls for easy operation.
Questions? Give us a call at (920) 684-4990 and talk to a Baileigh expert.
Call for AvailabilityFoot Operated Corner Notcher. 16 Gauge Mild Steel Capacity. Will Notch Corners up to 3" x 3" at 90 Degrees.

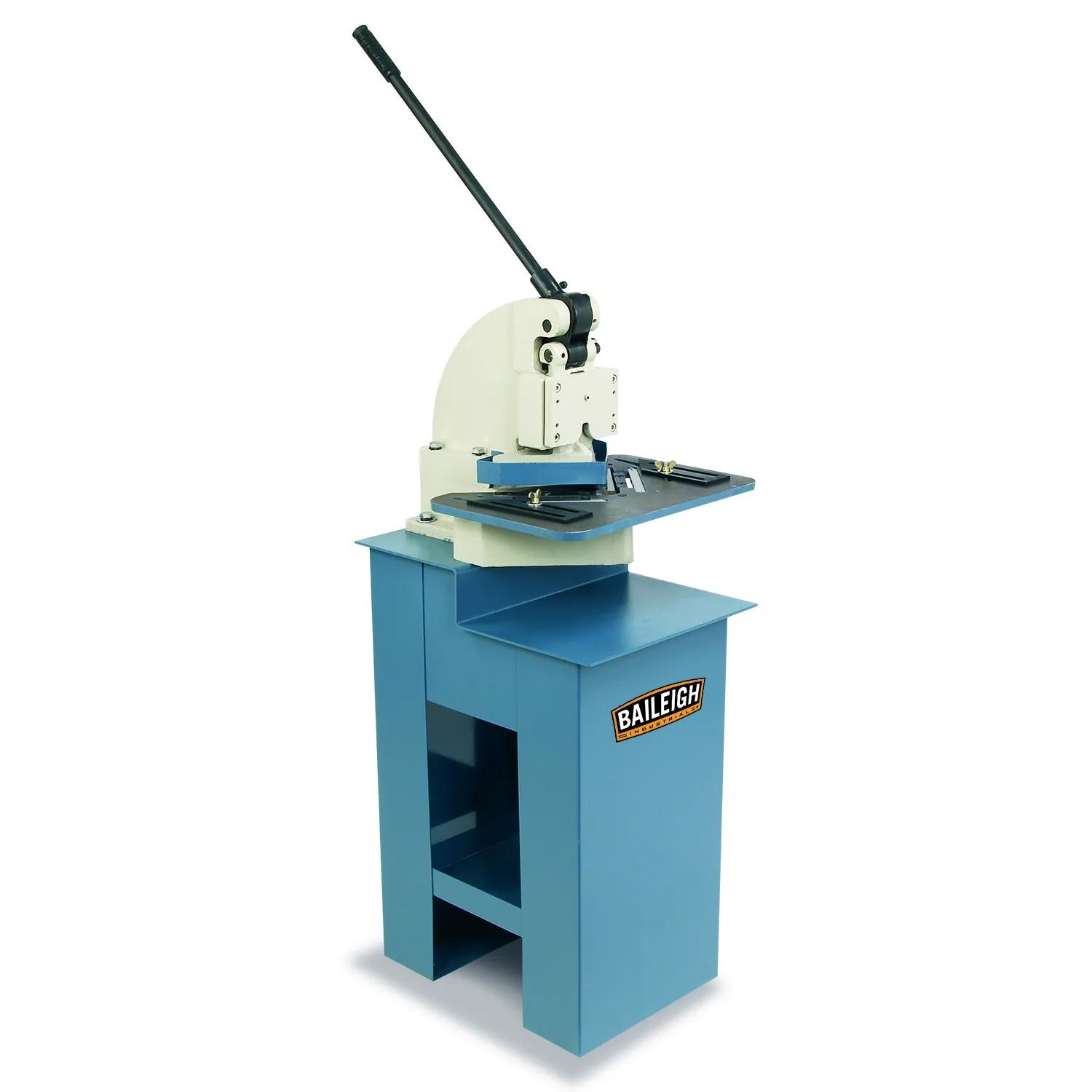

In stockManually Operated Corner Notcher. 16 Gauge Mild Steel Capacity. Will Notch Corners up to 6" x 6" at 90 Degrees. Maximum Force is 4 Tons. Table Size is 18" x 12" and has a 3/4" Stroke. Floor Stand is Included

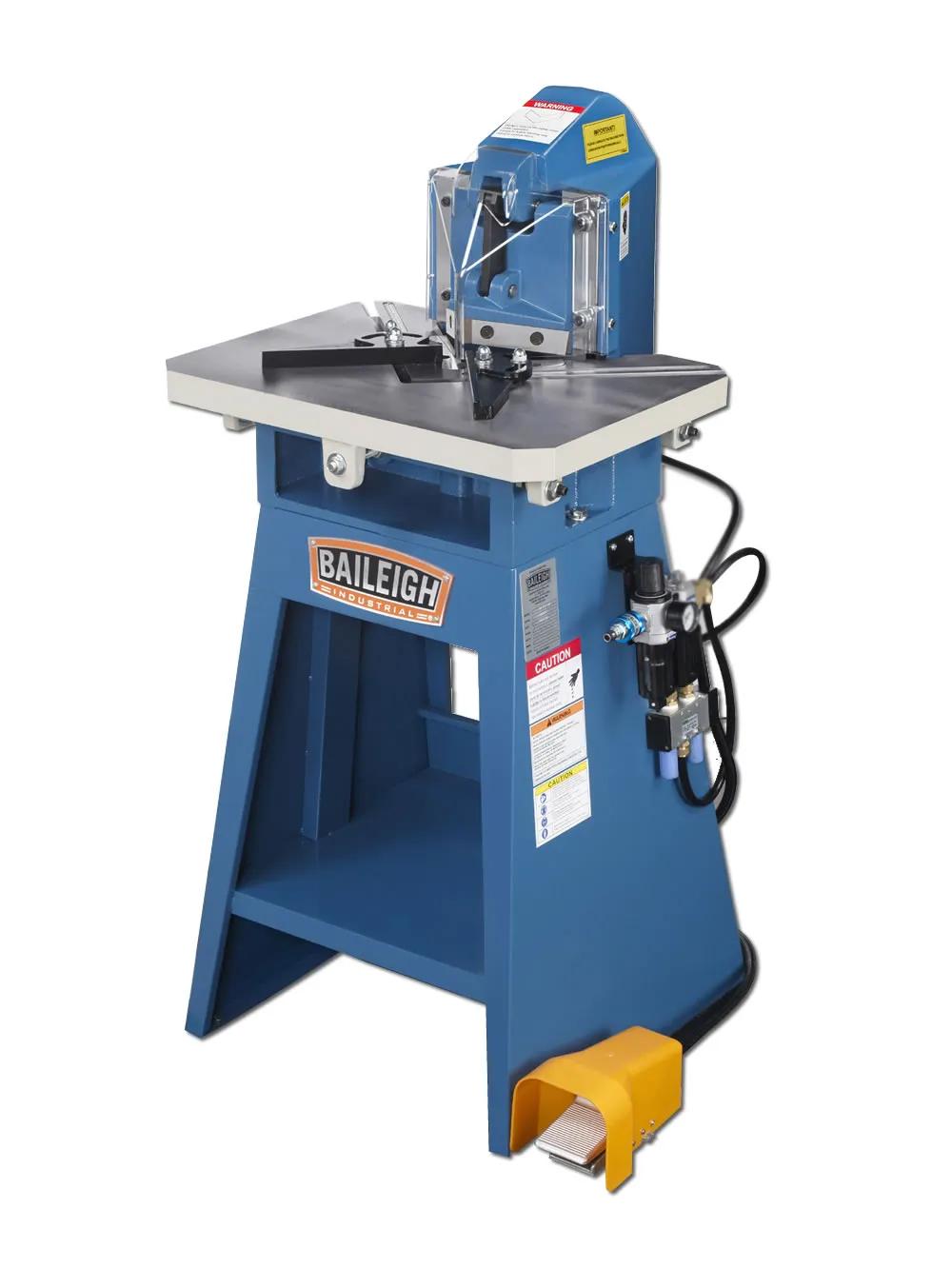

Call for Availability11 Gauge Mild Steel Air Operated, Fixed Angle Sheet Metal Notcher, 5" Blade Length, 23-1/2" x 18" Working Table, 50 Strokes per Minute, 2.2 Tons of Working Pressure

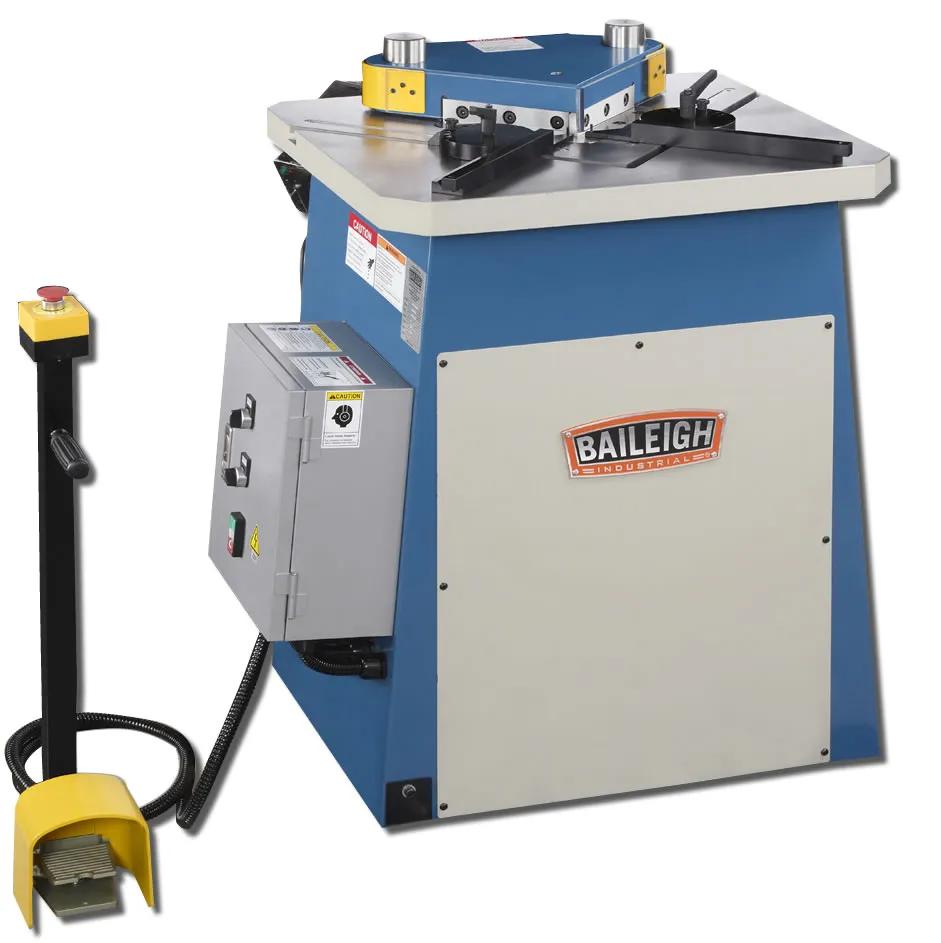

In stock9 Gauge Hydraulic Fixed Angle Sheet Metal Notcher, 3 HP Motor, 220/440V 60 Hz 3Phase, 7-3/4" Blade Length, 50 Stokes per Minute, 27" x 23.5" Working Table
Call for Availability4 Gauge (6mm) Hydraulic Fixed Angle Sheet Metal Notcher, 4 HP Motor, 220/440V 60 Hz 3Phase, 8-1/2" Blade Length, 15 Stokes per Minute, 25.5" x 25.5" Working Table
Regular Price: $17,795.00
Special Price $15,125.75

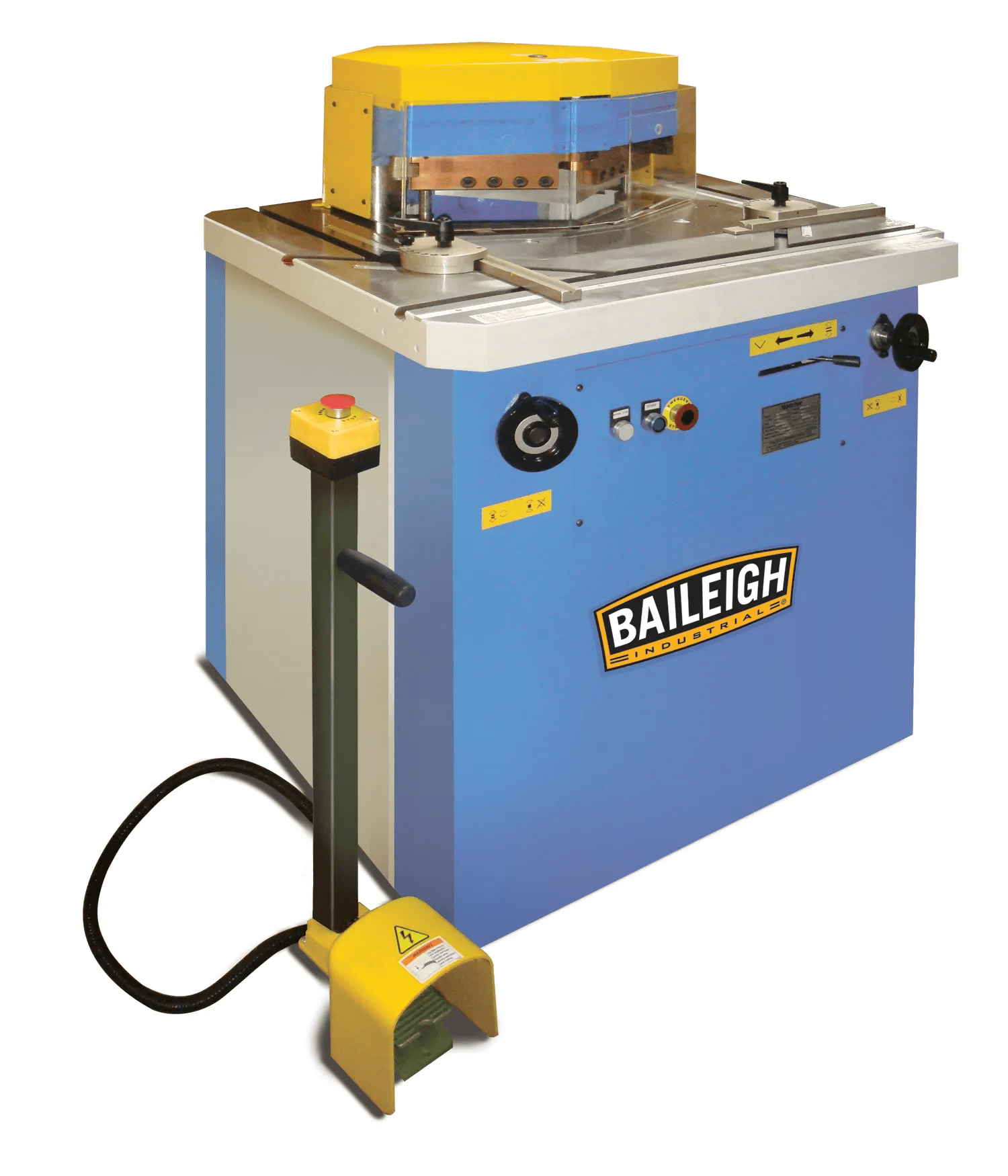

Call for Availability4 Gauge (6mm) Hydraulic Variable Angle Sheet Metal Notcher, 4 HP Motor, 220/440V 60 Hz 3Phase, 8-1/2" Blade Length, 15 Stokes per Minute, 25.5" x 25.5" Working Table
